Air Temperature Sensor ( Ambient / Intake ): Locations





ENGINE CONTROL SYSTEM

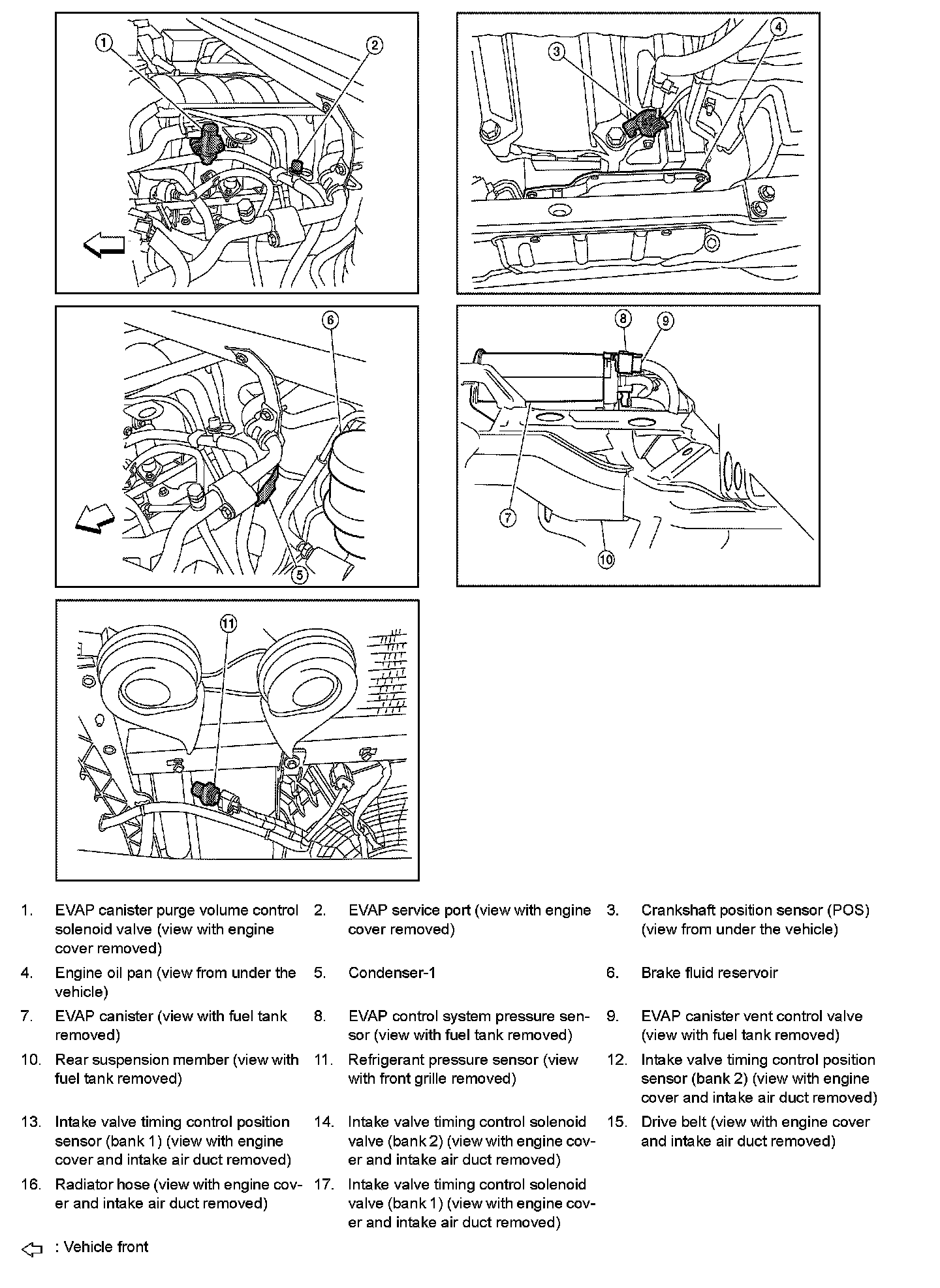

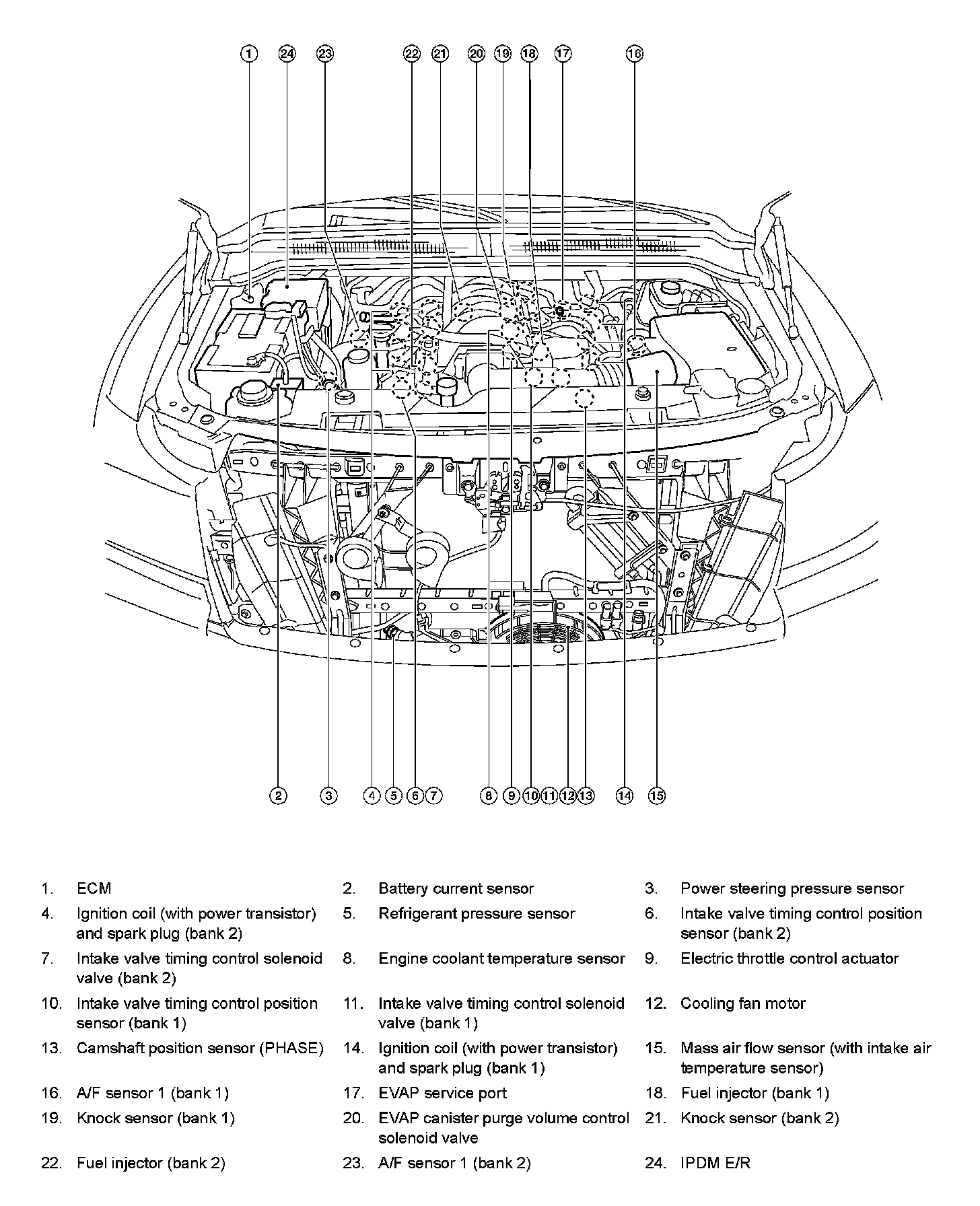

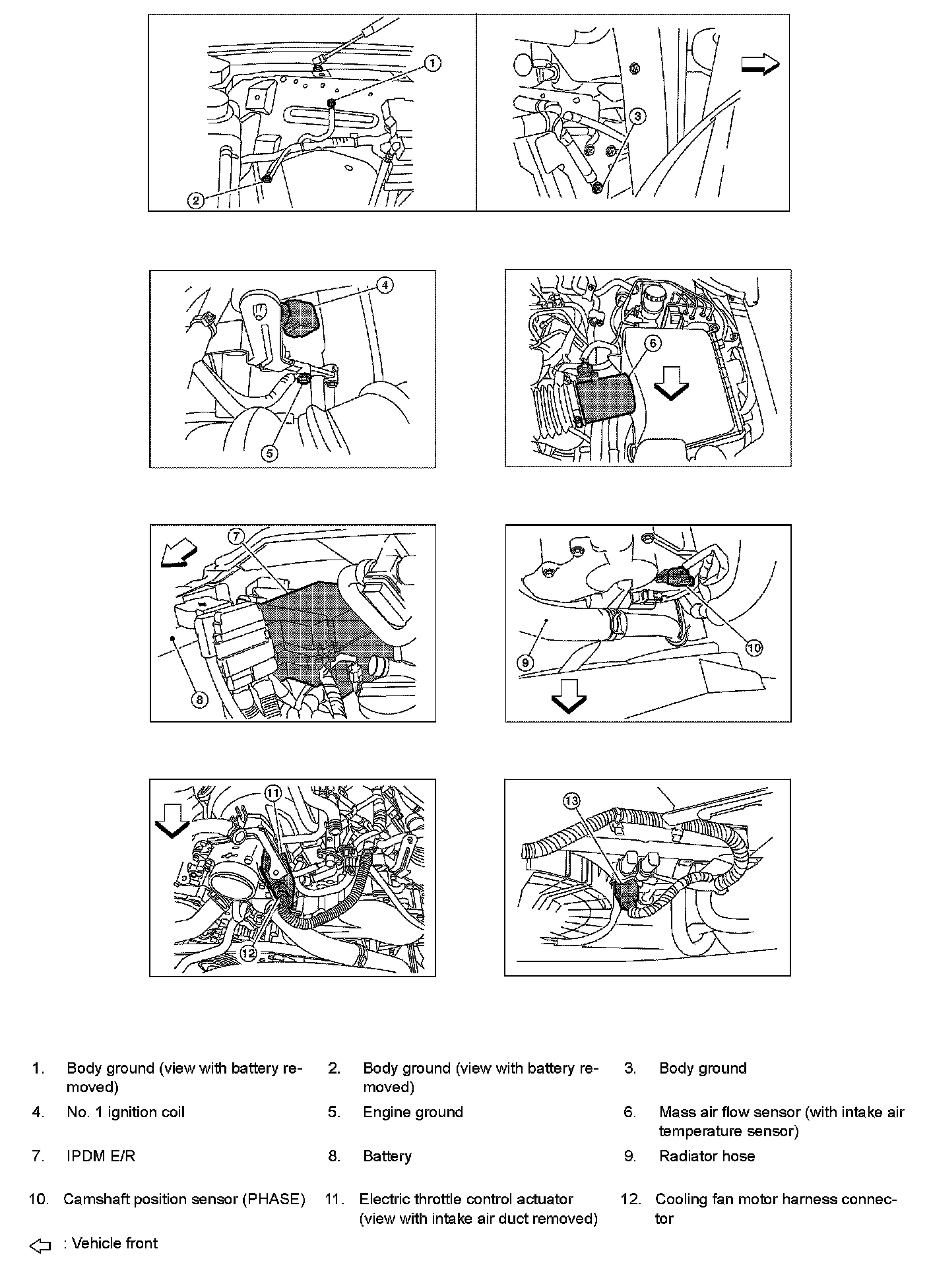

Engine Control Component Parts Location
