Auto Light System

AUTO LIGHT SYSTEM


Removal and Installation


OPTICAL SENSOR

Removal
1. Remove defroster grille. Refer to .





2. Disconnect the optical sensor connector.

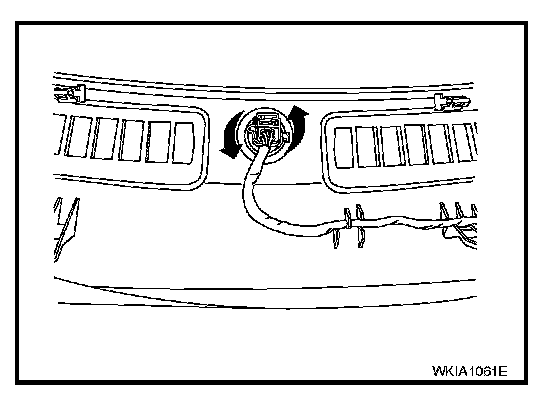

3. Turn the optical sensor counterclockwise to remove it from defroster grille.

Installation
Installation is in the reverse order of removal.
