Component Inspection

IN-VEHICLE SENSOR


In-Vehicle Sensor Component Inspection


COMPONENT INSPECTION

In-vehicle Sensor

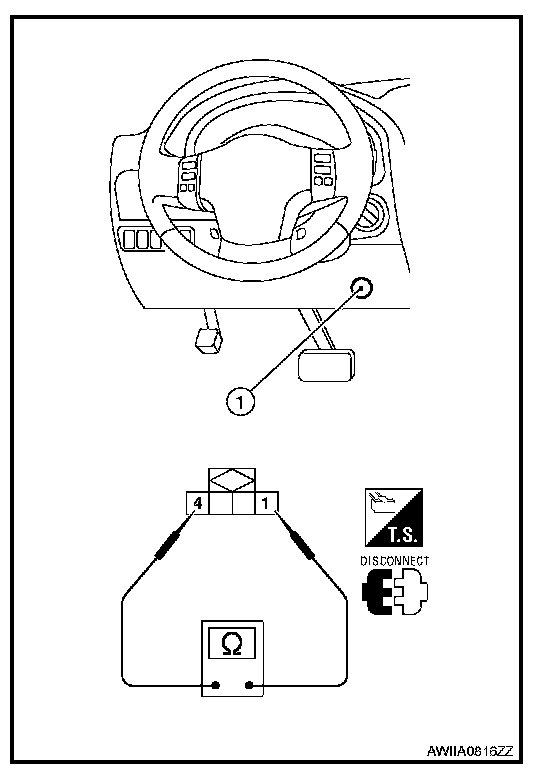

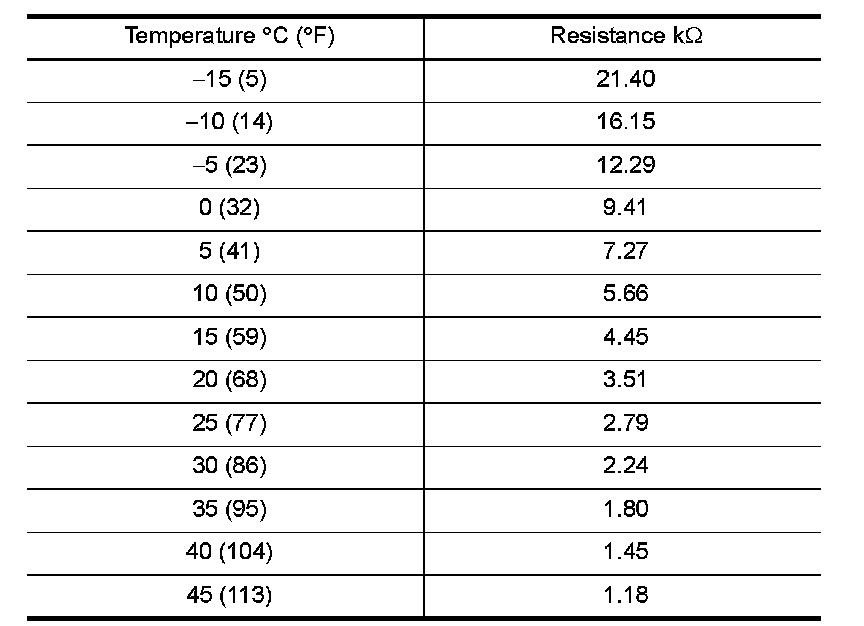

After disconnecting in-vehicle sensor connector M32, measure resistance between terminals 1 and 4 at sensor component side, using the table below.










If NG, replace in-vehicle sensor. Refer to Service and Repair.
