Component Inspection





AMBIENT SENSOR


Ambient Sensor Component Inspection


COMPONENT INSPECTION

Ambient Sensor

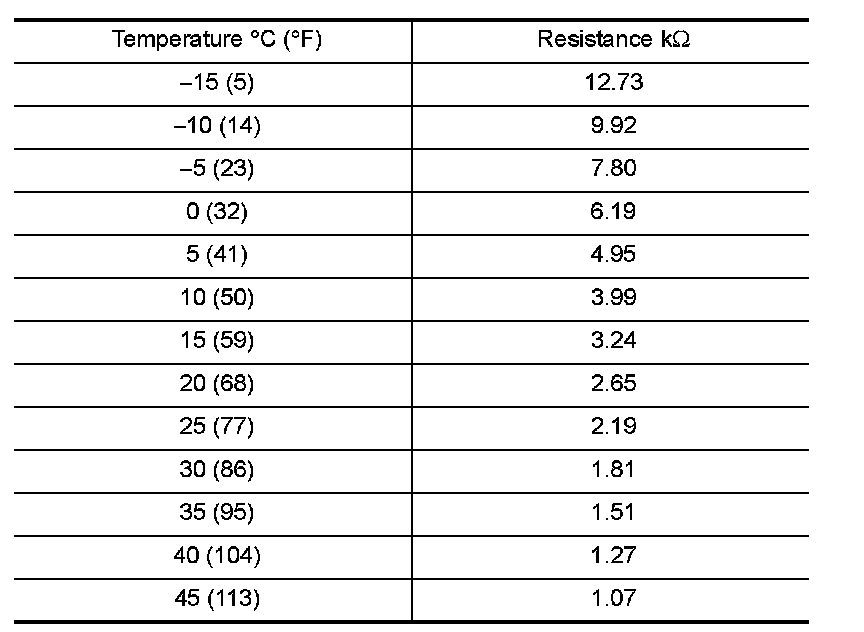

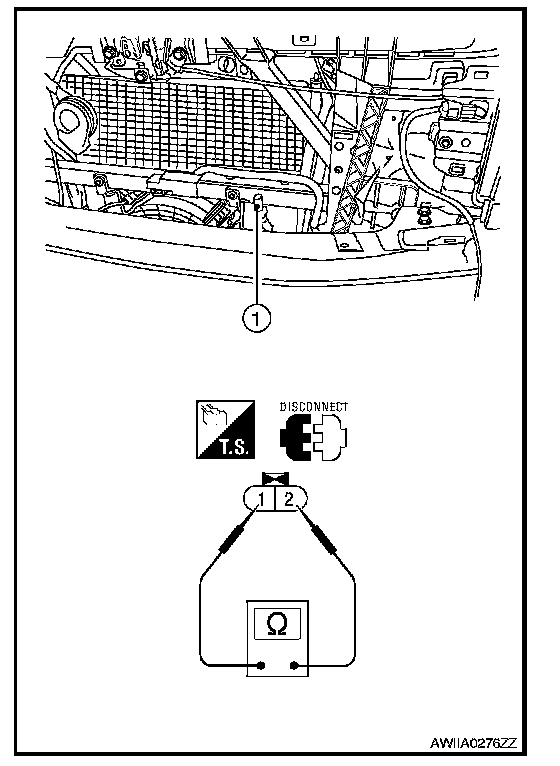

After disconnecting ambient sensor (1) connector E1, measure resistance between terminals 1 and 2 at sensor component side, using the table below.










If NG, replace ambient sensor. Refer to Service and Repair.
