Removal and Installation

HEATER CORE


Removal and Installation


FRONT HEATER CORE

Removal
1. Remove the front heater and cooling unit assembly. Refer to Removal And Installation.
2. Remove the four screws and remove the upper bracket.
3. Remove the four screws and remove the heater core cover.
4. Remove the heater core pipe bracket.





5. Remove the heater core.

NOTE:

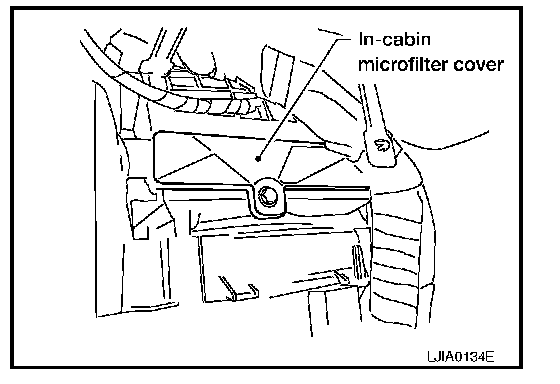

If the in-cabin microfilters are contaminated from coolant leaking from the heater core, replace the in-cabin microfilters with new ones before installing the new heater core.

Installation
Installation is in the reverse order of removal.

REAR HEATER CORE

Removal
1. Partially drain the engine cooling system. Refer to Changing Engine Coolant.
2. Remove the luggage side finisher lower RH. Refer to Service and Repair
3. Disconnect the rear heater hoses from the heater core.
4. Remove the rear heater core bracket.
5. Remove the heater core.

Installation
Installation is in the reverse order of removal.
