Cabin Temperature Sensor / Switch: Service and Repair

INTAKE SENSOR


Removal and Installation


REMOVAL
1. Remove the instrument panel. Refer to Removal and Installation.





2. Disconnect the intake sensor electrical connector.

NOTE:

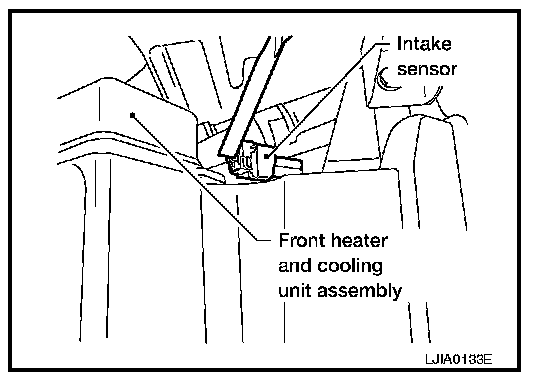

The intake sensor is located on the top of the front heater and cooling unit assembly next to the A/C evaporator cover.
3. Twist the intake sensor to remove the intake sensor from the front heater and cooling unit assembly.

INSTALLATION
Installation is in the reverse order of removal.
