Infiniti Truck
>>
2009
>>
QX56 RWD V8-5.6L (VK56DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Seats
Seats
THIRD SEAT
Exploded View

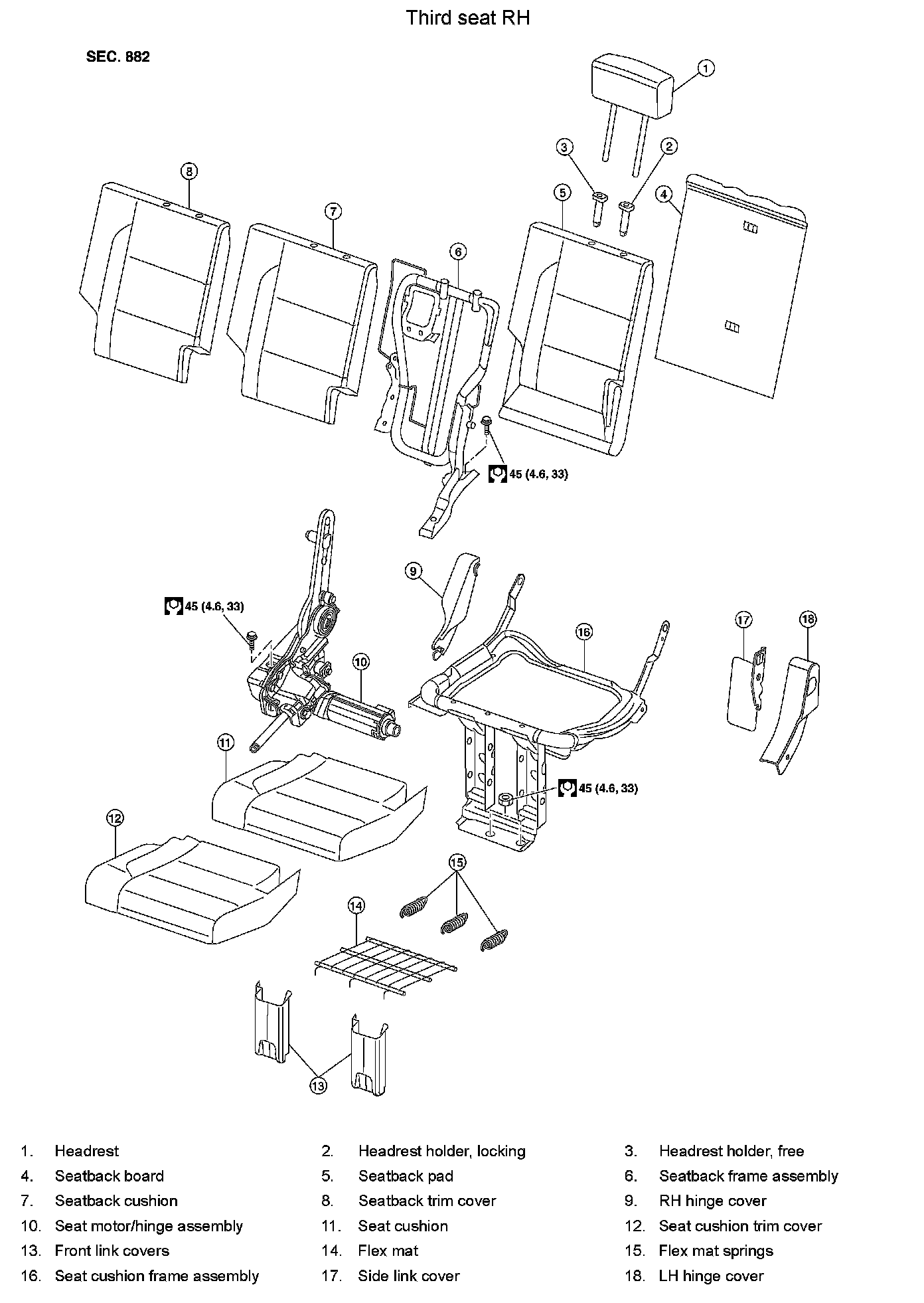

Third seat RH

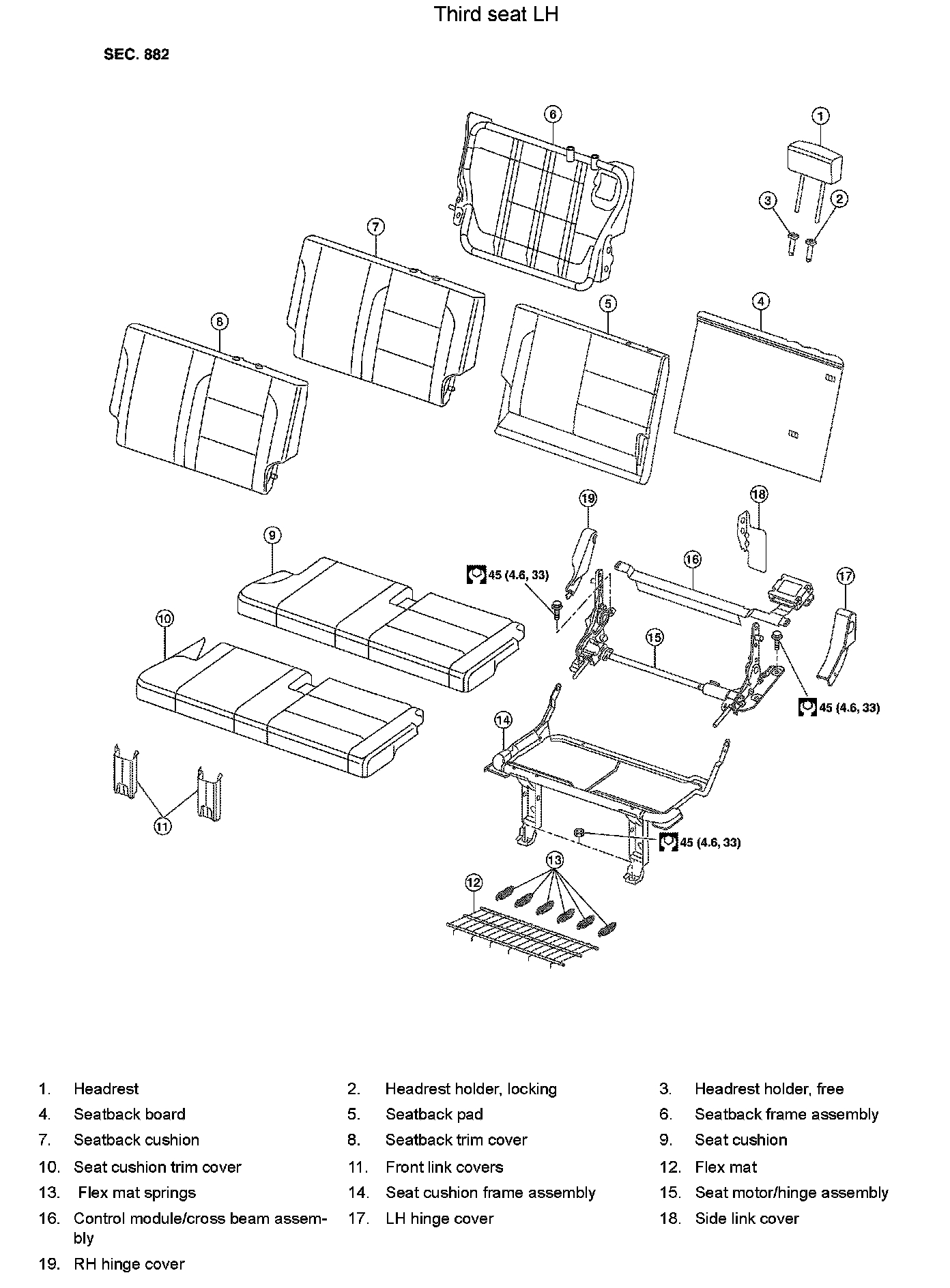

Third seat LH
