Diagnosis Procedure

ICC BRAKE SWITCH


Diagnosis Procedure

1.CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-III.

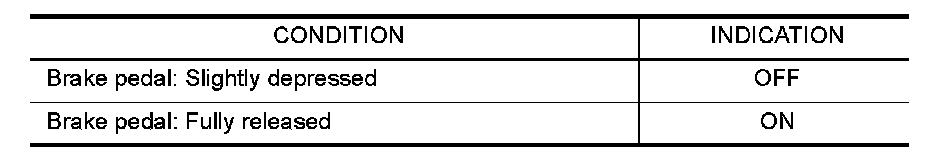

3. Check "BRAKE SW1" indication under the following conditions.





Without CONSULT-III
1. Turn ignition switch ON.

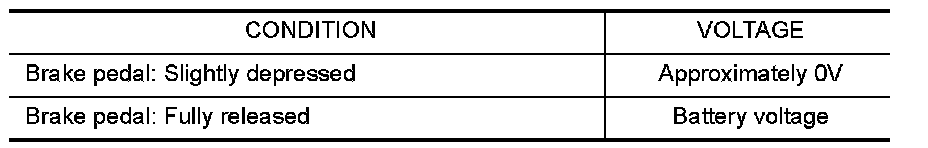

2. Check voltage between ECM terminal 108 and ground under the following conditions.





OK or NG
OK - GO TO 2.
NG - GO TO 3.
2.CHECK OVERALL FUNCTION-II
With CONSULT-III

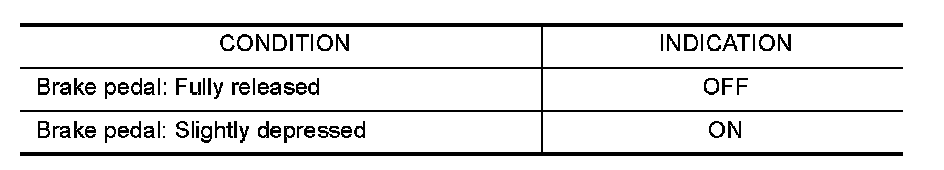

Check "BRAKE SW2" indication in "DATA MONITOR" mode.





Without CONSULT-III

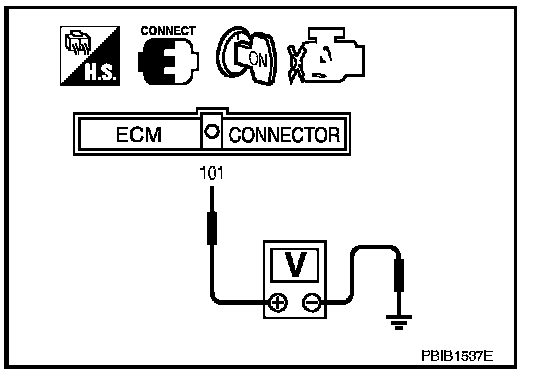

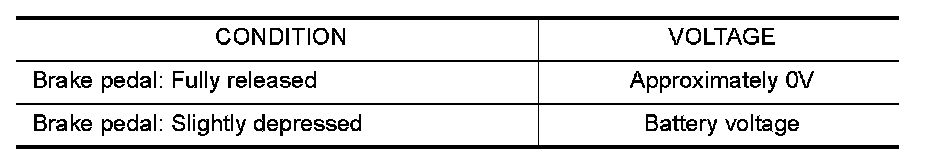

Check voltage between ECM terminal 101 and ground under the following conditions.





OK or NG
OK >> INSPECTION END
NG - GO TO 10.
3.CHECK DTC WITH ICC UNIT
Refer to CONSULT-III Function (ICC).
OK or NG
OK - GO TO 4.
NG - Repair or replace.
4.CHECK ICC BRAKE HOLD RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.





2. Disconnect ICC brake hold relay.
3. Turn ignition switch ON.

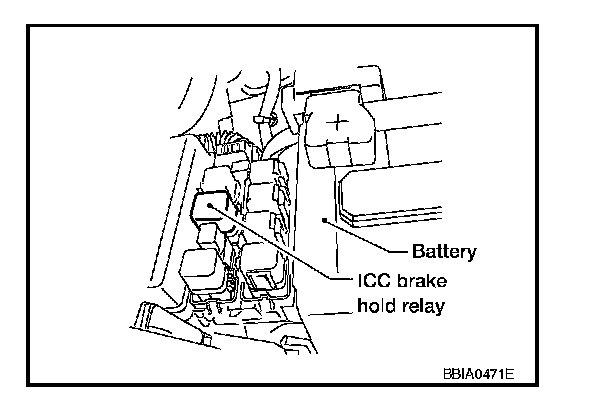

4. Check voltage between ICC brake hold relay terminal 4 and ground with CONSULT-III or tester.

Voltage: Battery voltage

OK or NG
OK - GO TO 6.
NG - GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors M31, E152
- Fuse block (J/B) connector M4
- 10A fuse
- Harness for open or short between ICC brake hold relay and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.





2. Disconnect ICC brake switch harness connector.
3. Check harness continuity between ICC brake hold relay terminal
3 and ICC brake switch terminal 1. Refer to Wiring Diagram.

Continuity should exist.

4. Also check harness for short to ground and short to power.
OK or NG
OK - GO TO 7.
NG - Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ICC brake switch terminal 2 and ECM terminal 108.
Refer Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.
OK or NG
OK - GO TO 8.
NG - Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK ICC BRAKE HOLD RELAY
Refer to Component Inspection.
OK - GO TO 9.
NG - Replace ICC brake hold relay.
9.CHECK ICC BRAKE SWITCH
Refer to Component Inspection.
OK or NG
OK - GO TO 14.
NG - Replace ICC brake switch.
10.CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.





2. Disconnect stop lamp switch harness connector.

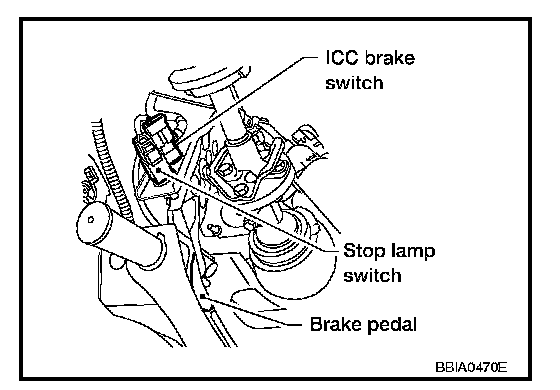

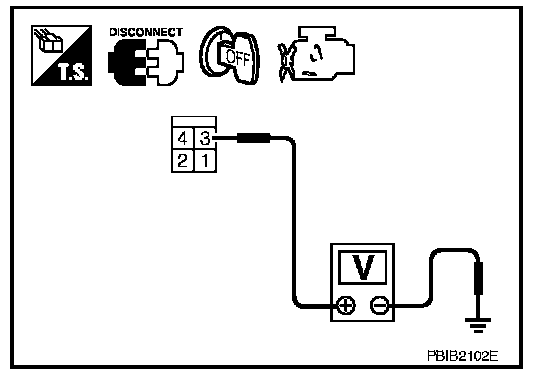

3. Check voltage between stop lamp switch terminal 3 and ground with CONSULT -III or tester.





Voltage: Battery voltage

OK or NG
OK - GO TO 12.
NG - GO TO 11.
11.DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors M31, E152
- Fuse block (J/B) No. 1 connector M60
- 10A fuse
- Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
12.CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 4. Refer to Wiring Diagram.

Continuity should exist.

3. Also check harness for short to ground and short to power.
OK or NG
OK - GO TO 13.
NG - Repair open circuit or short to ground or short to power in harness or connectors.
13.CHECK STOP LAMP SWITCH
Refer to Component Inspection.
OK or NG
OK - GO TO 14.
NG - Replace stop lamp switch.
14.CHECK INTERMITTENT INCIDENT
Refer to How to Check Terminal and Intermittent Incident.
>> INSPECTION END
