Reference Value - Intelligent Key Unit





INTELLIGENT KEY UNIT


Reference Value - Intelligent Key Unit

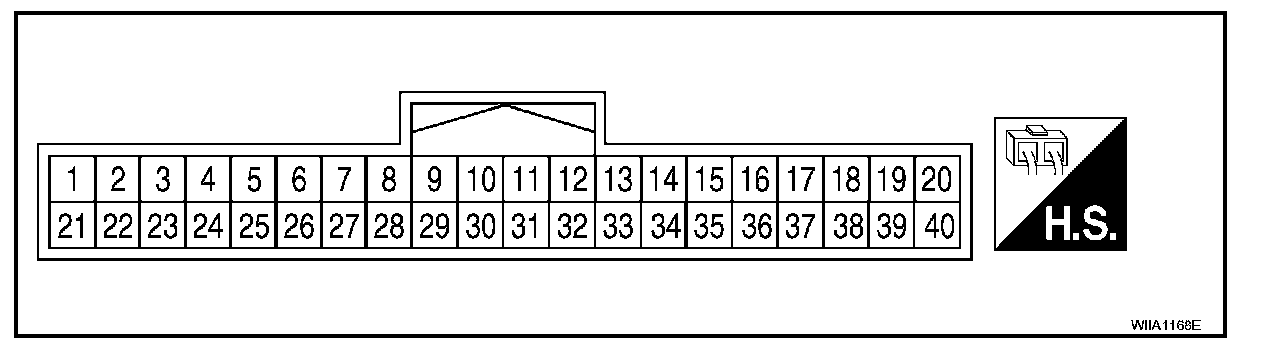

TERMINAL LAYOUT

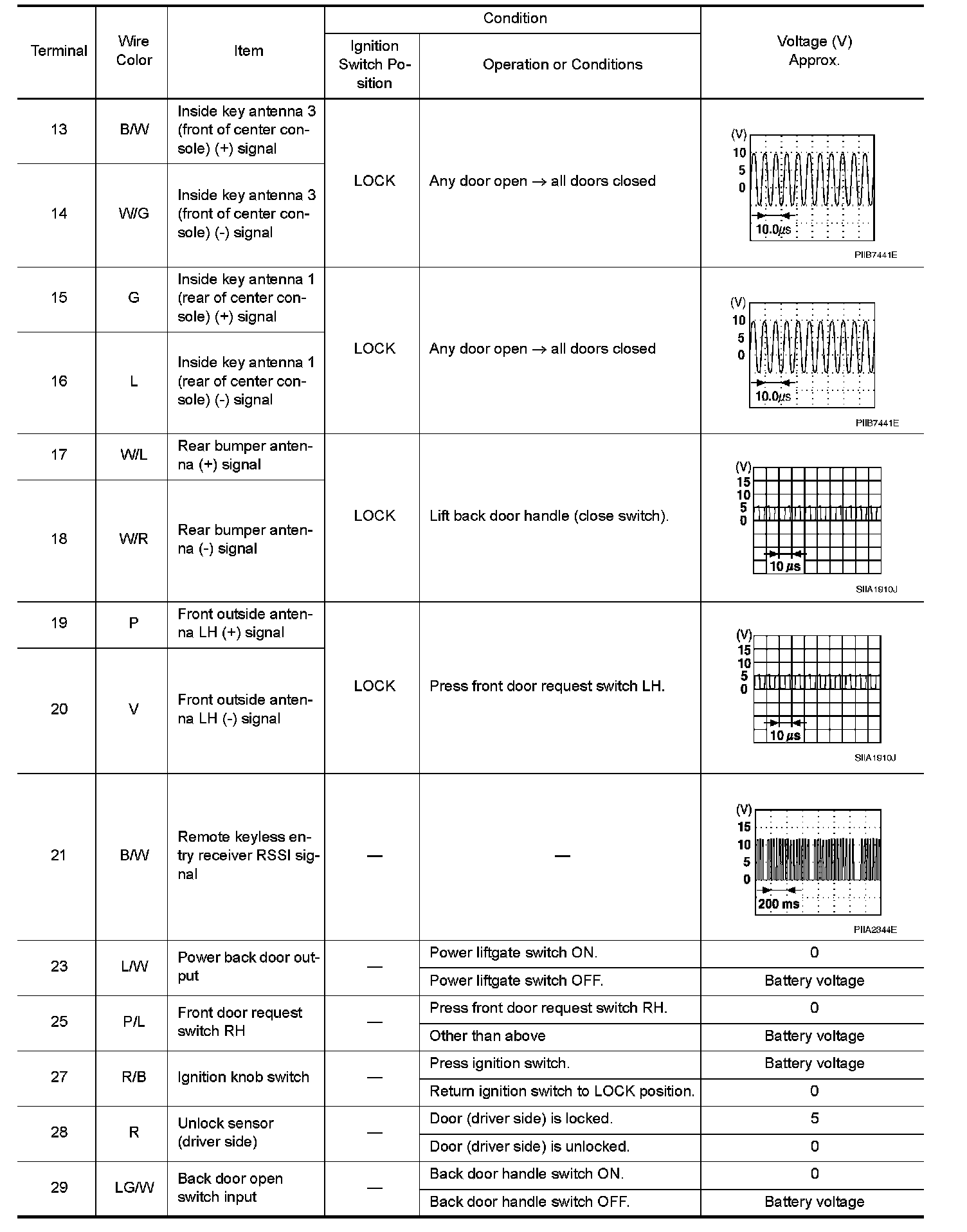

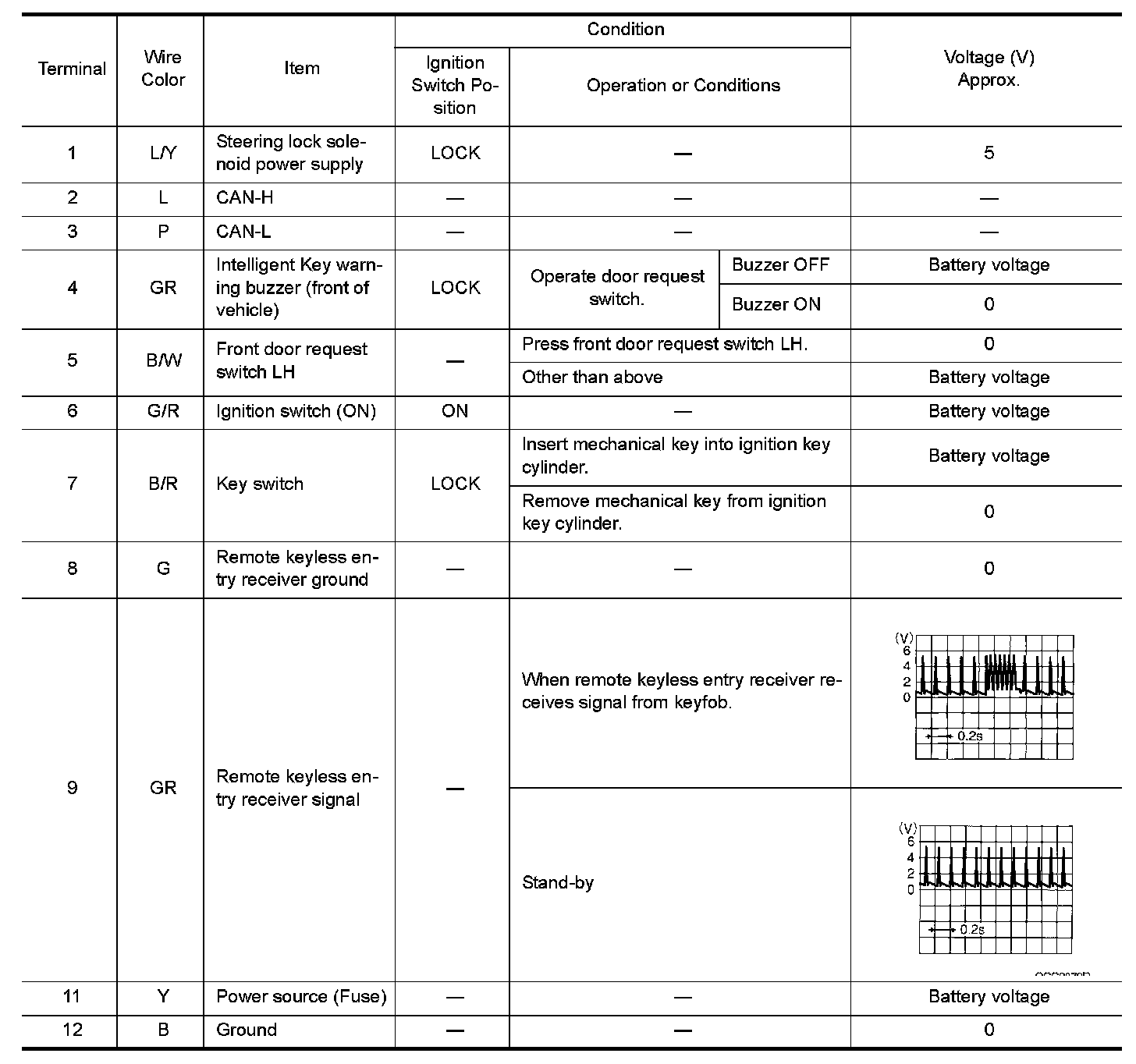

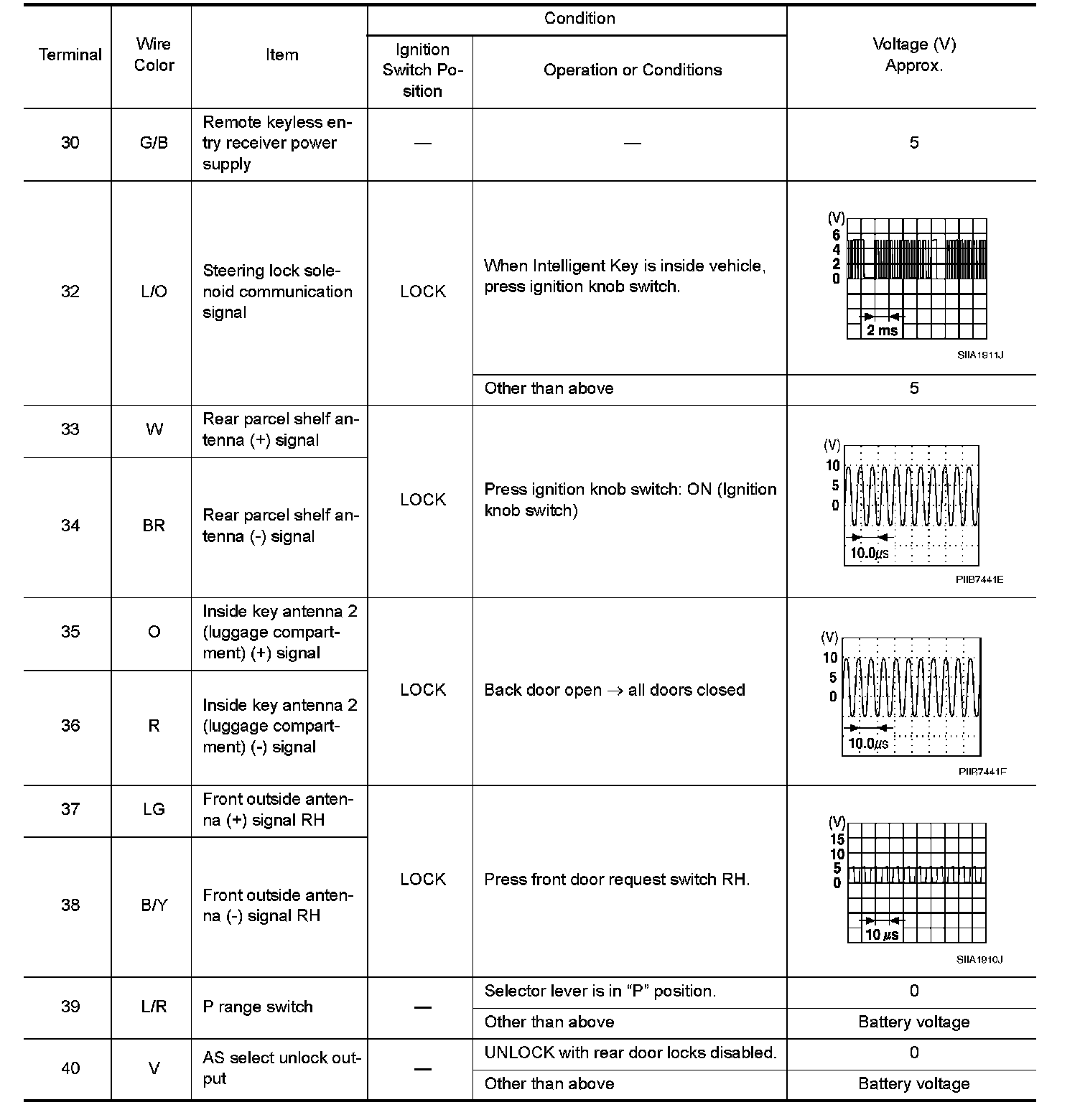

PHYSICAL VALUES
