Infiniti Truck
>>
2009
>>
FX50 AWD V8-5.0L (VK50VE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Differential Assembly
>>
Service and Repair
>>
Overhaul
>>
Front Final Drive F160A
>>
Drive Pinion
>>

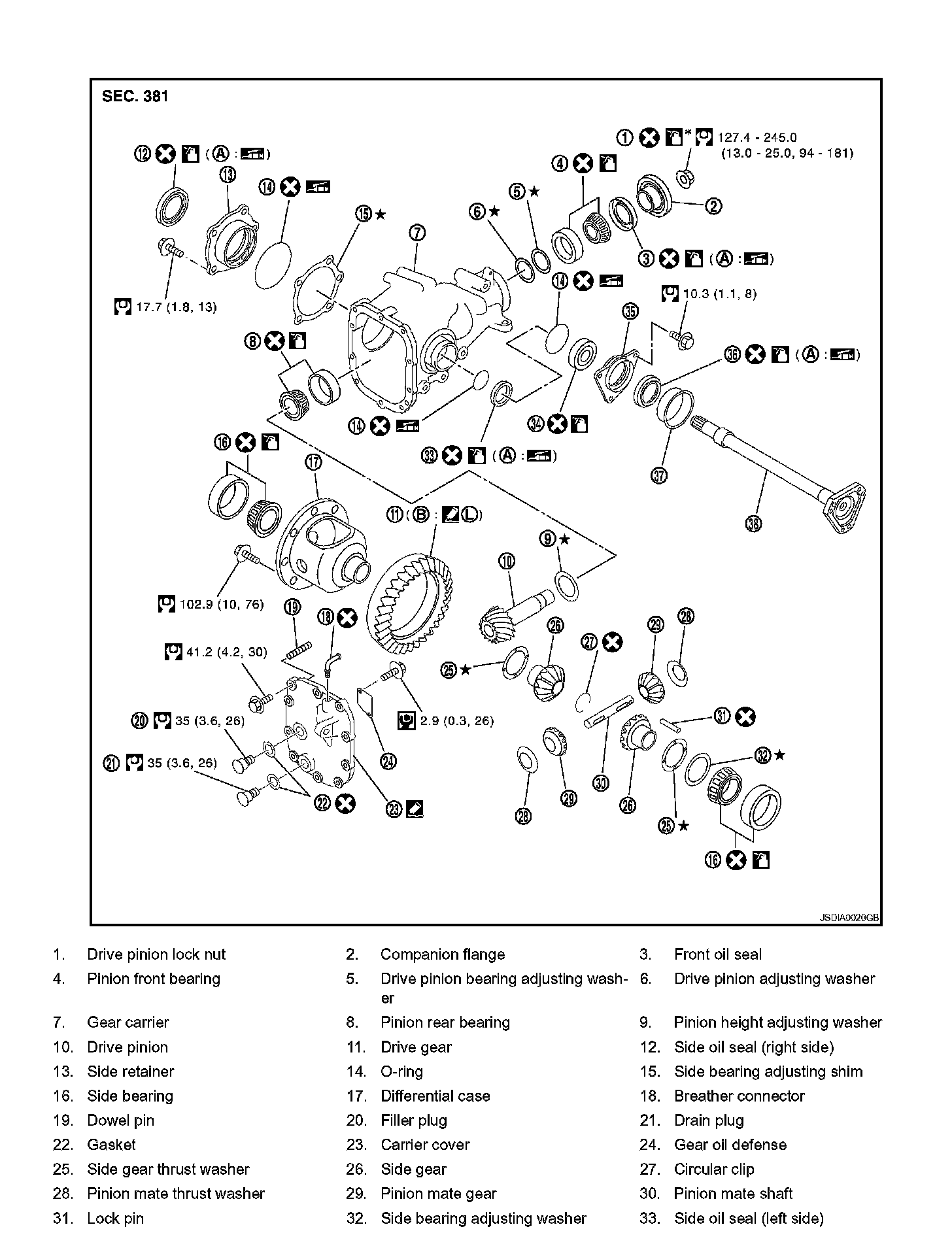

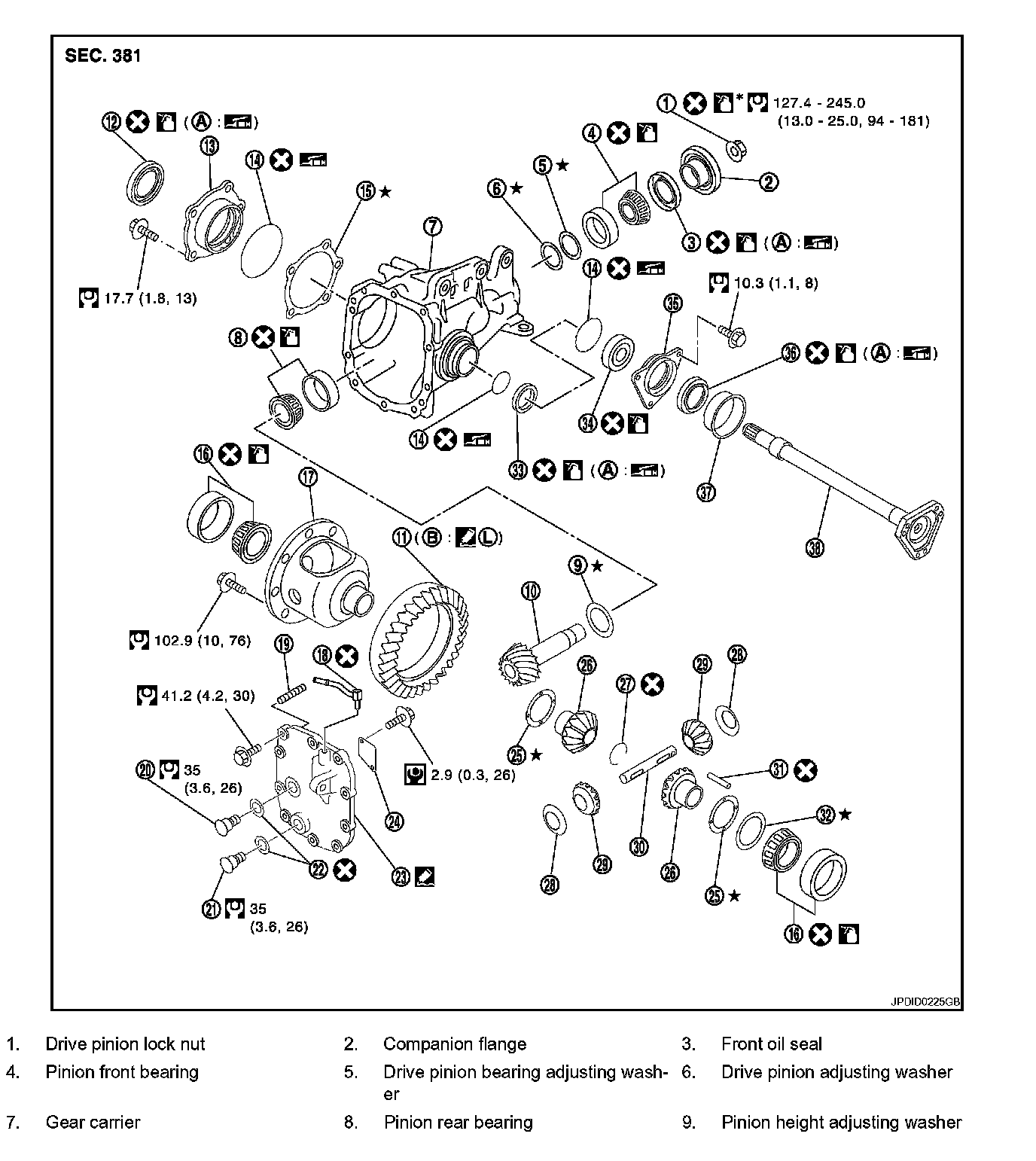

Exploded View
Exploded View
DRIVE PINION
Exploded View
VQ35HR
VK50VE
