Removal and Installation

ALTERNATOR


VK50VE : Removal and Installation


REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove drive belt. Refer to Exploded View
3. Remove the air ducts and air cleaner assembly RH.

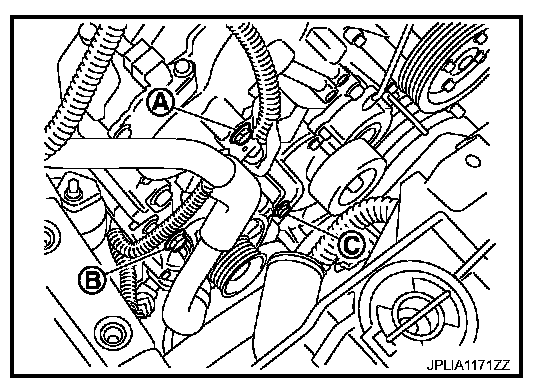

4. Remove the alternator connector harness bracket (A).
5. Move a steering hose and harness not to interfere the removal of the alternator.
6. Remove the alternator mounting bolt (B) and alternator mounting bolt (C).

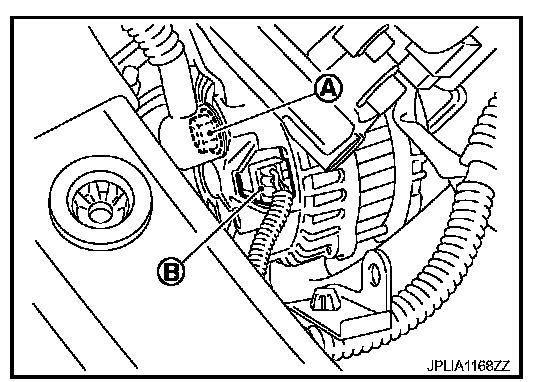

7. Pull and turn alternator, and then remove the "B" terminal nut (A) and alternator connector (B).

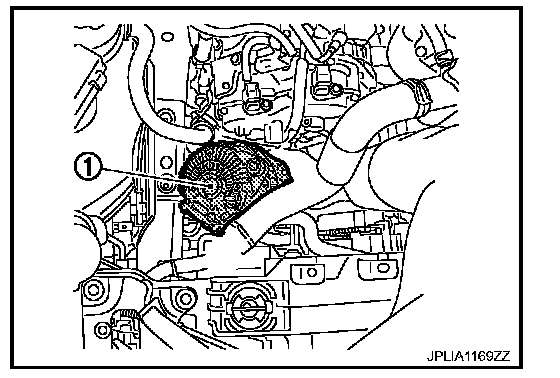

8. Remove alternator assembly (1) upward from the vehicle.






INSTALLATION
Install in the reverse order of removal.

CAUTION:
Be sure to tighten "B" terminal nut carefully.
- Install alternator, and check tension of belt. Refer to Testing and Inspection.
- For this model, the power generation voltage variable control system that controls the power generation voltage of the alternator has been adopted. Therefore, the power generation voltage variable control system operation inspection should be performed after replacing the alternator, and then make sure that the system operates normally. Refer to Inspection Procedure.
