Removal and Installation

CRASH ZONE SENSOR


Removal and Installation


WARNING:
- Before servicing, turn ignition switch OFF, disconnect the battery negative terminal and wait at least
3 minutes.
- Never use the air tools or the electric tools for servicing.

REMOVAL
1. Remove the air duct (inlet).
- VQ35 engine: Refer to Exploded View.
- VK50 engine: Refer to Exploded View.
2. Remove the reservoir tank.
- VQ35 engine: Refer to Exploded View.
- VK50 engine: Refer to Exploded View.

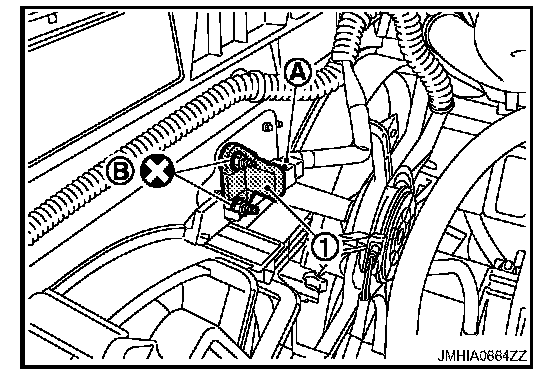

3. Disconnect crash zone sensor harness connector (A).
4. Remove the crash zone sensor (1) fixing nuts (B).
5. Remove the crash zone sensor.

CAUTION:
- Replace the crash zone sensor of deployed the SRS driver air bag and deployed the SRS front passenger air bag.





- Never impact the crash zone sensor.
- Replace the crash zone sensor if it has been dropped or sustained an impact.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Never use the old fixing nuts after removal; replace with the new nuts.
- Never damage the harness while installing.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT-III.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp. Refer to Diagnosis Description.
