Side Defroster Nozzle

DUCT AND GRILLE


SIDE DEFROSTER NOZZLE : Removal and Installation


REMOVAL

Driver side
1. Remove instrument panel assembly. Refer to Exploded View.

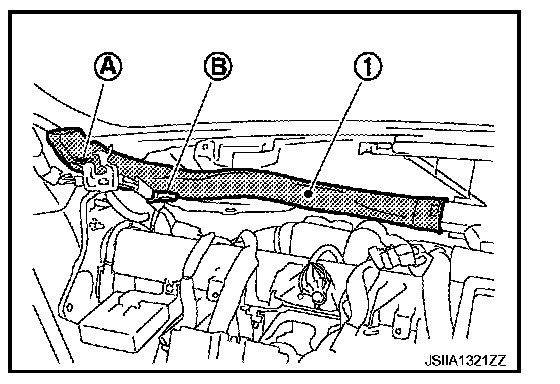

2. Remove mounting clip (A) and harness clip (B), and then remove side defroster nozzle (left) (1).

Passenger side
1. Remove instrument panel assembly. Refer to Exploded View.

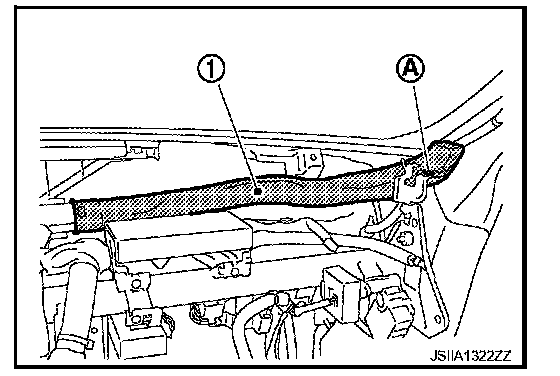

2. Remove mounting clip (A), and then remove side defroster nozzle (right) (1).

INSTALLATION
Installation is basically the reverse order of removal.
