Side Defroster Grille

DUCT AND GRILLE


SIDE DEFROSTER GRILLE : Removal and Installation


REMOVAL

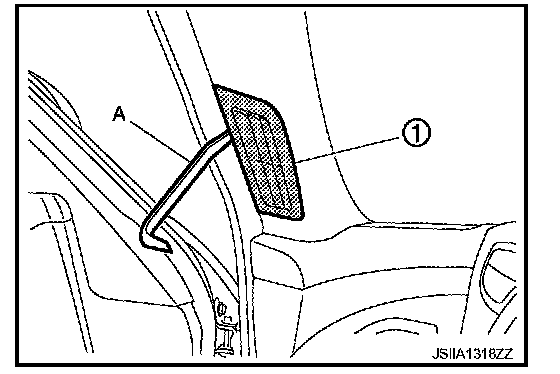

Remove side defroster grilles (left and right) (1), using remover tools





(A).

INSTALLATION
Installation is basically the reverse order of removal.
