Heater Duct

DUCT AND GRILLE


HEATER DUCT : Removal and Installation


REMOVAL
1. Remove instrument lower panel LH. Refer to Exploded View.

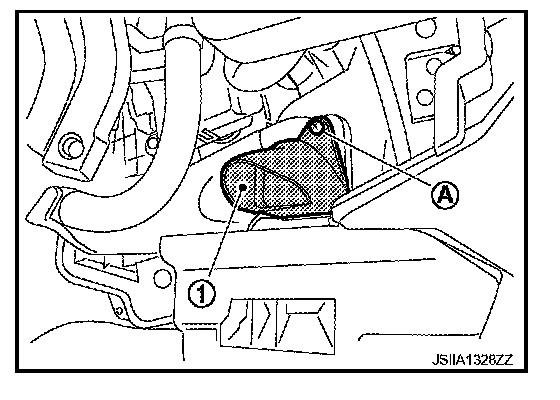

2. Remove mounting screw (A), and then remove heater duct (1).

INSTALLATION
Installation is basically the reverse order of removal.
