Tire Monitoring System
Tire Monitoring System
TPMS CONTROL UNIT

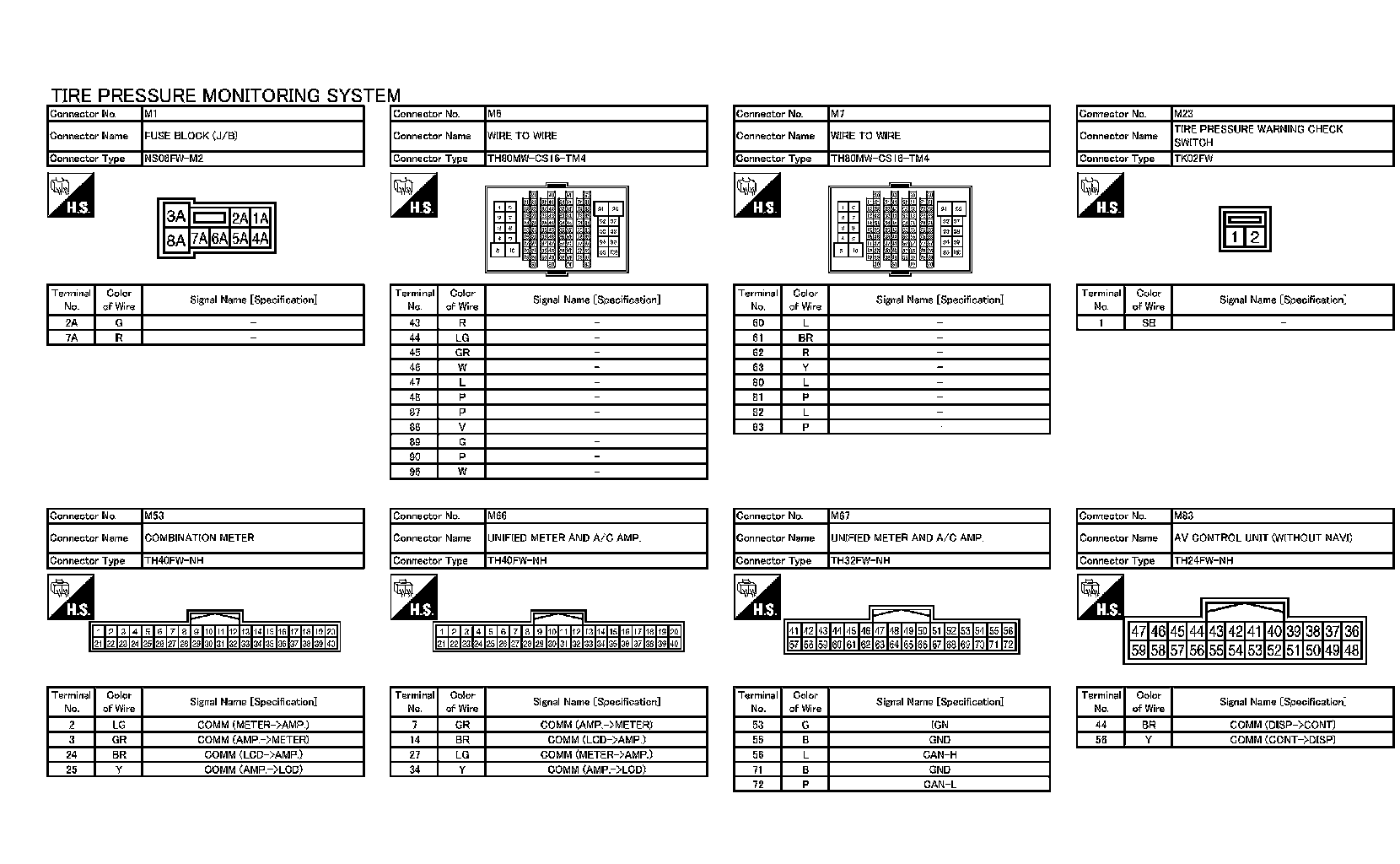

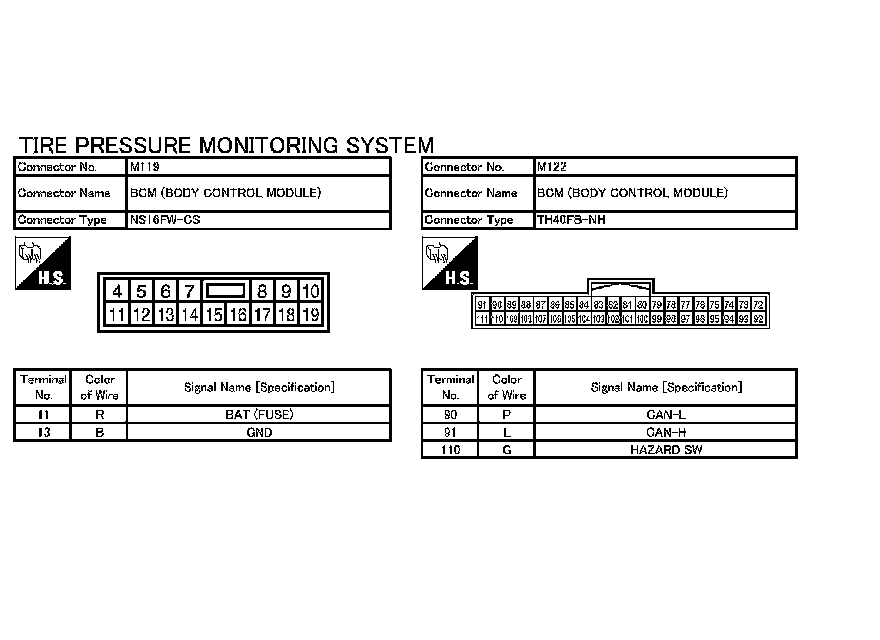

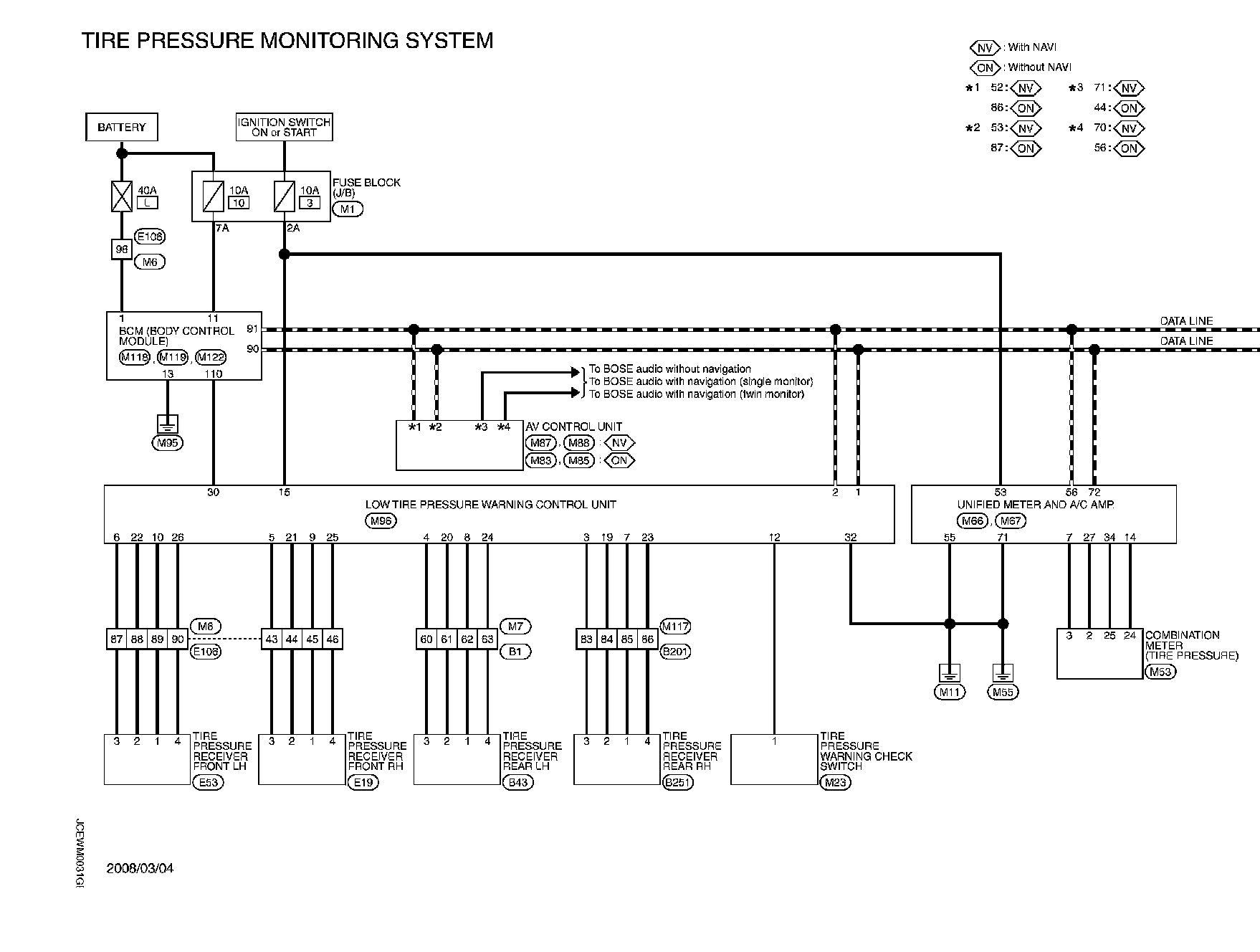

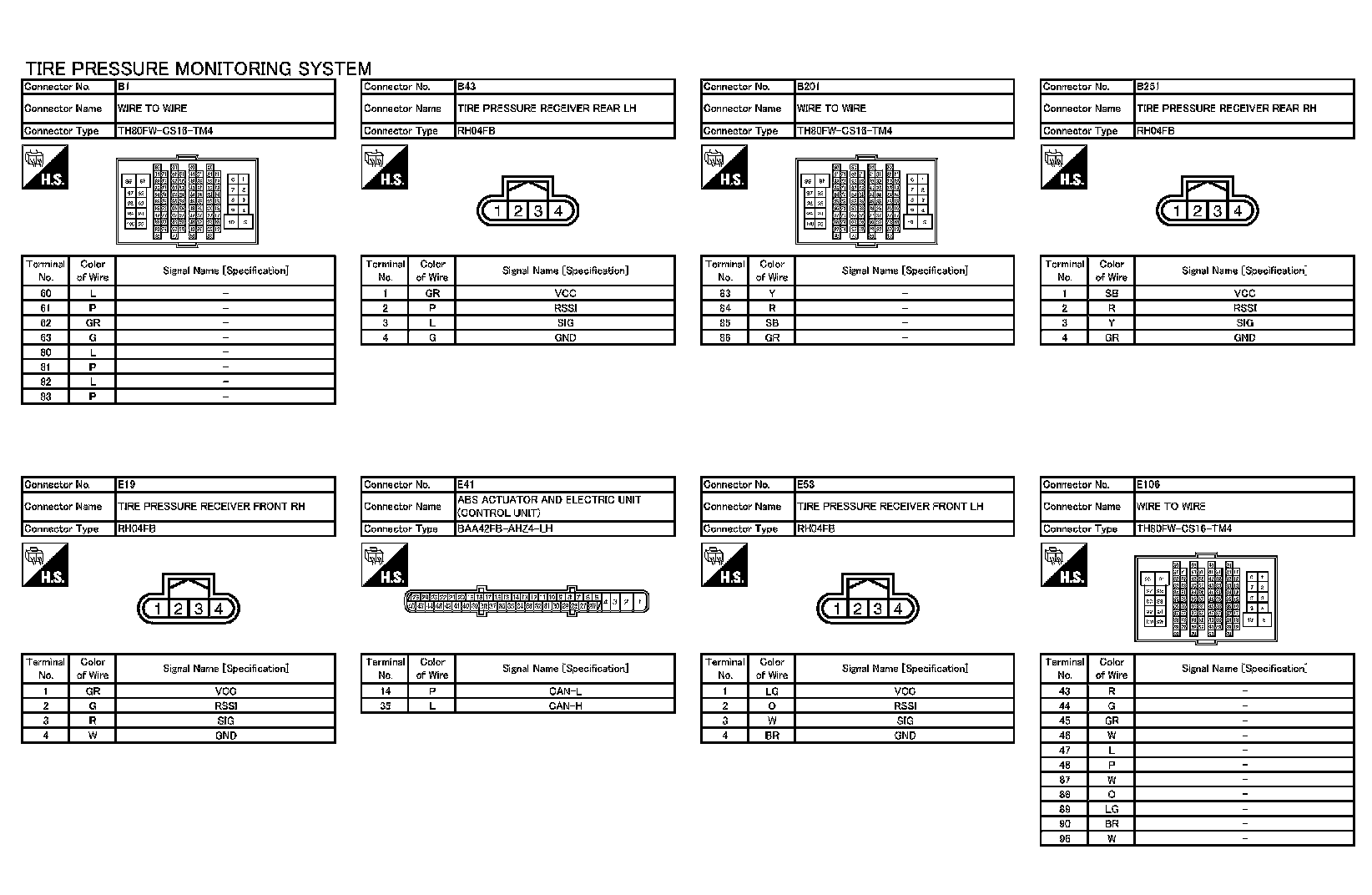

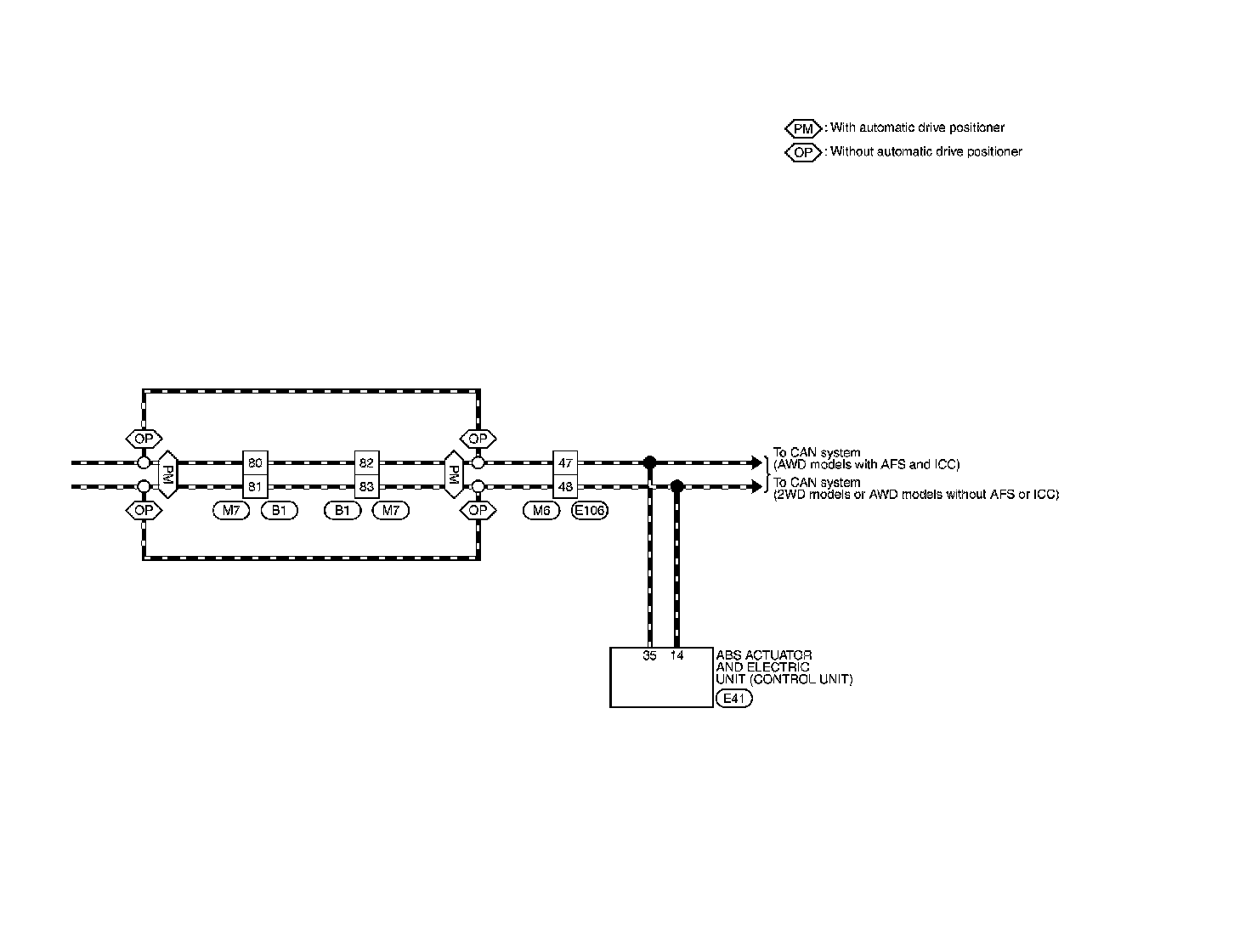

Wiring Diagram - TIRE PRESSURE MONITORING SYSTEM -
