DCA





ICC SENSOR INTEGRATED UNIT


Reference Value

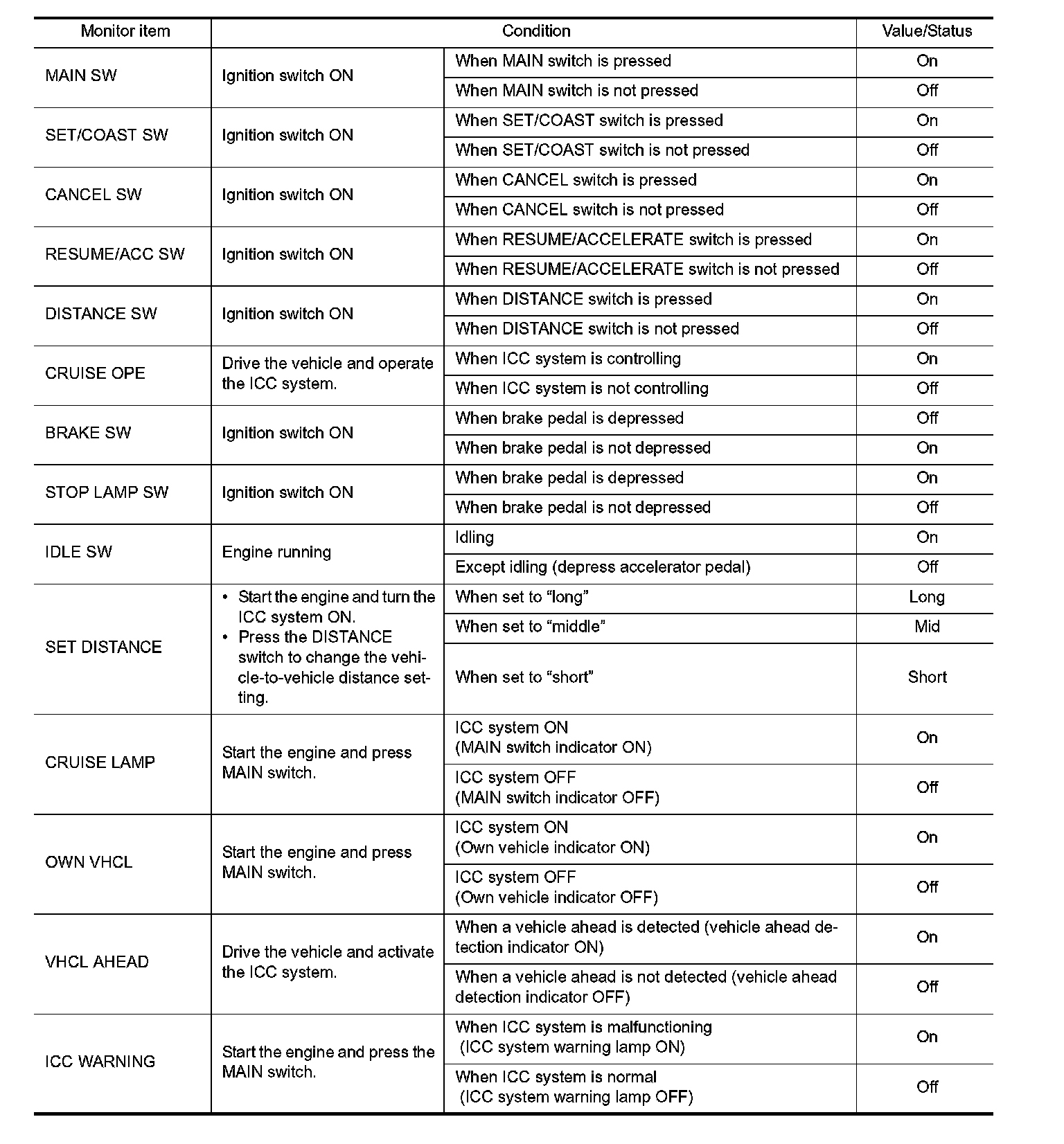

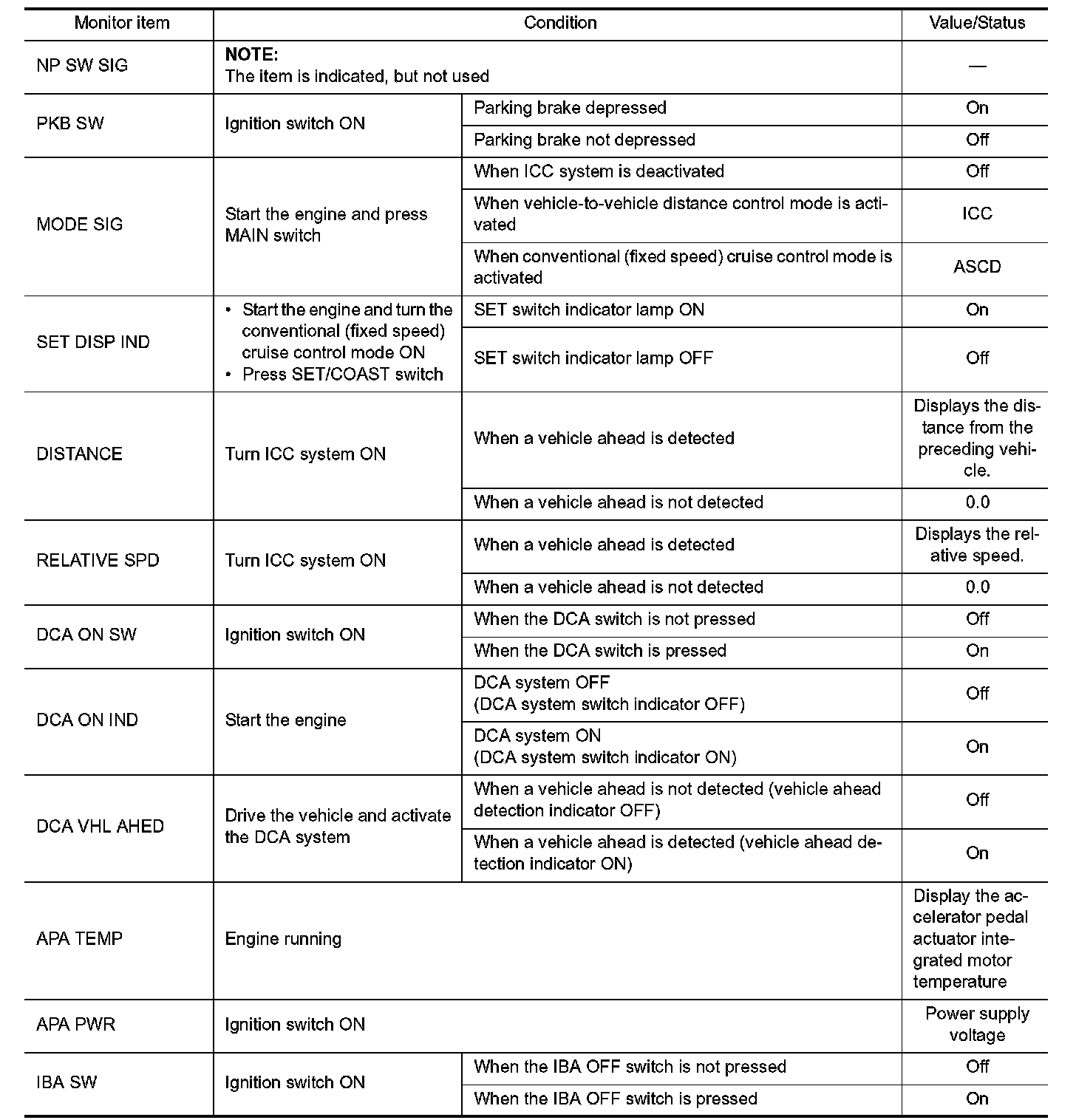

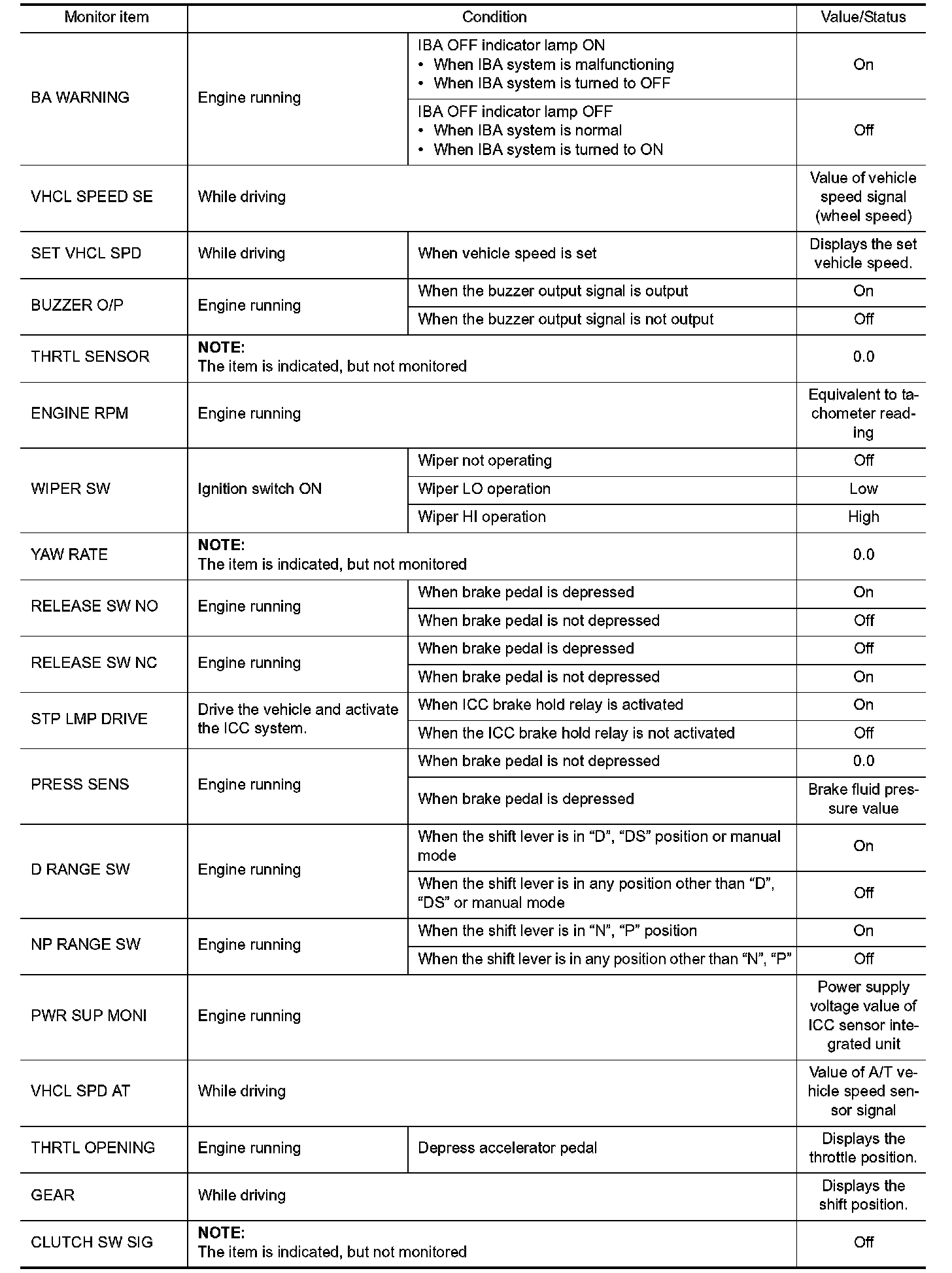

VALUES ON THE DIAGNOSIS TOOL

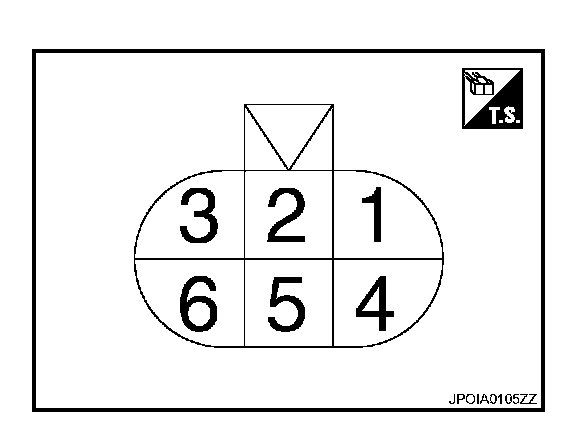

TERMINAL LAYOUT

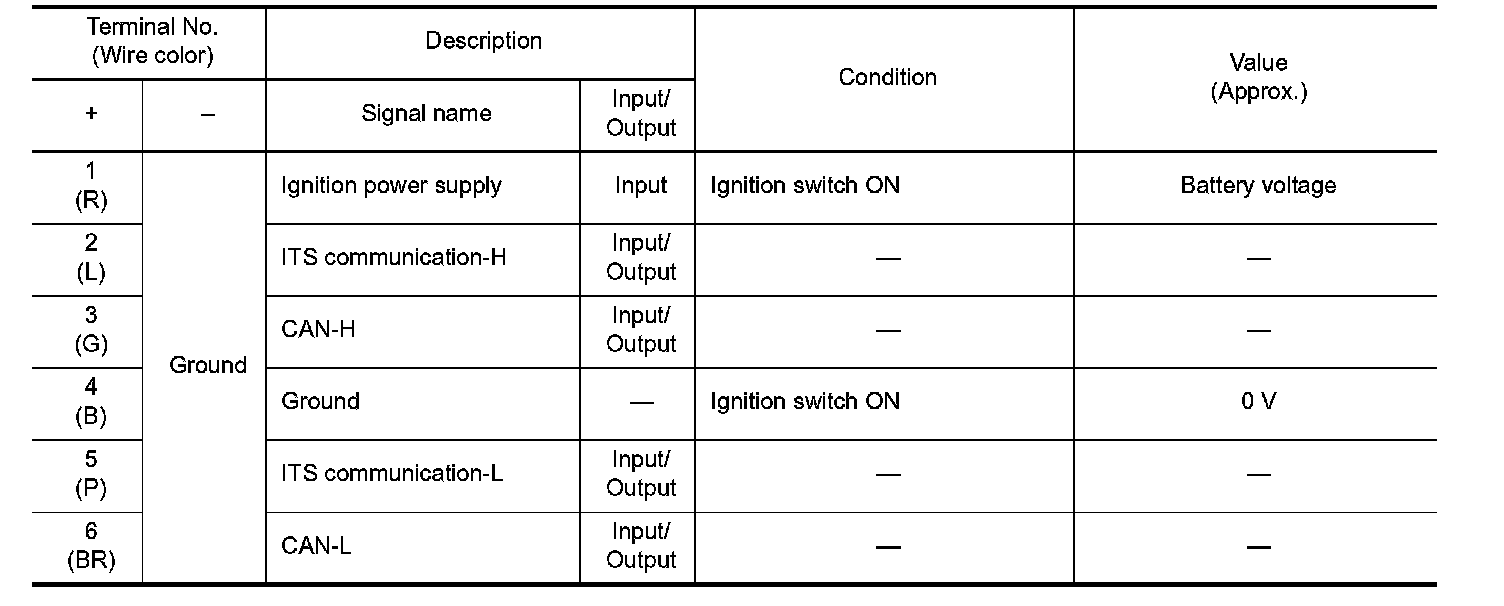

PHYSICAL VALUES
