Infiniti Truck
>>
2009
>>
FX50 AWD V8-5.0L (VK50VE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Service and Repair
>>
Sunroof Unit Assembly
>>

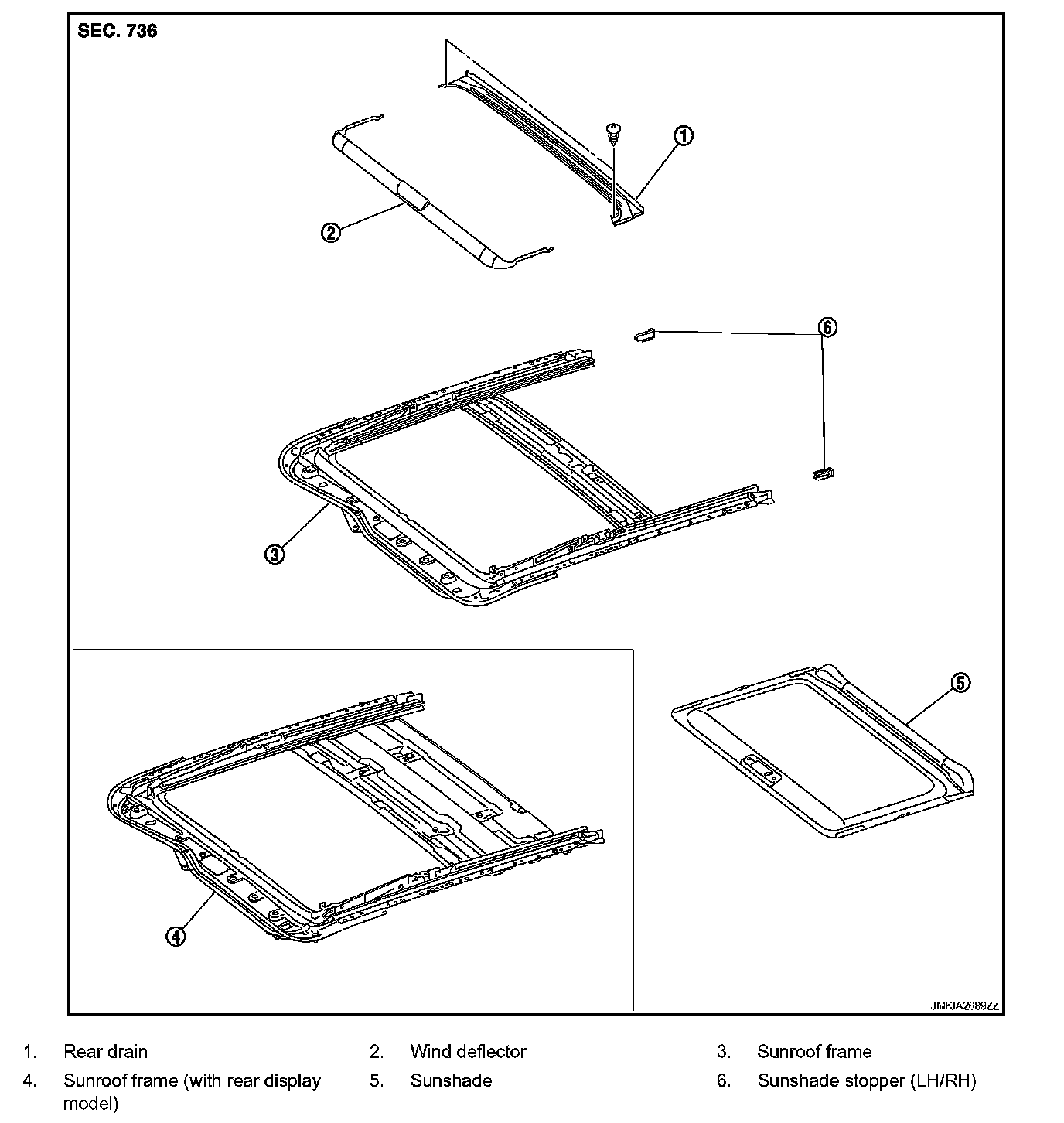

Exploded View
Exploded View
SUNROOF UNIT ASSEMBLY

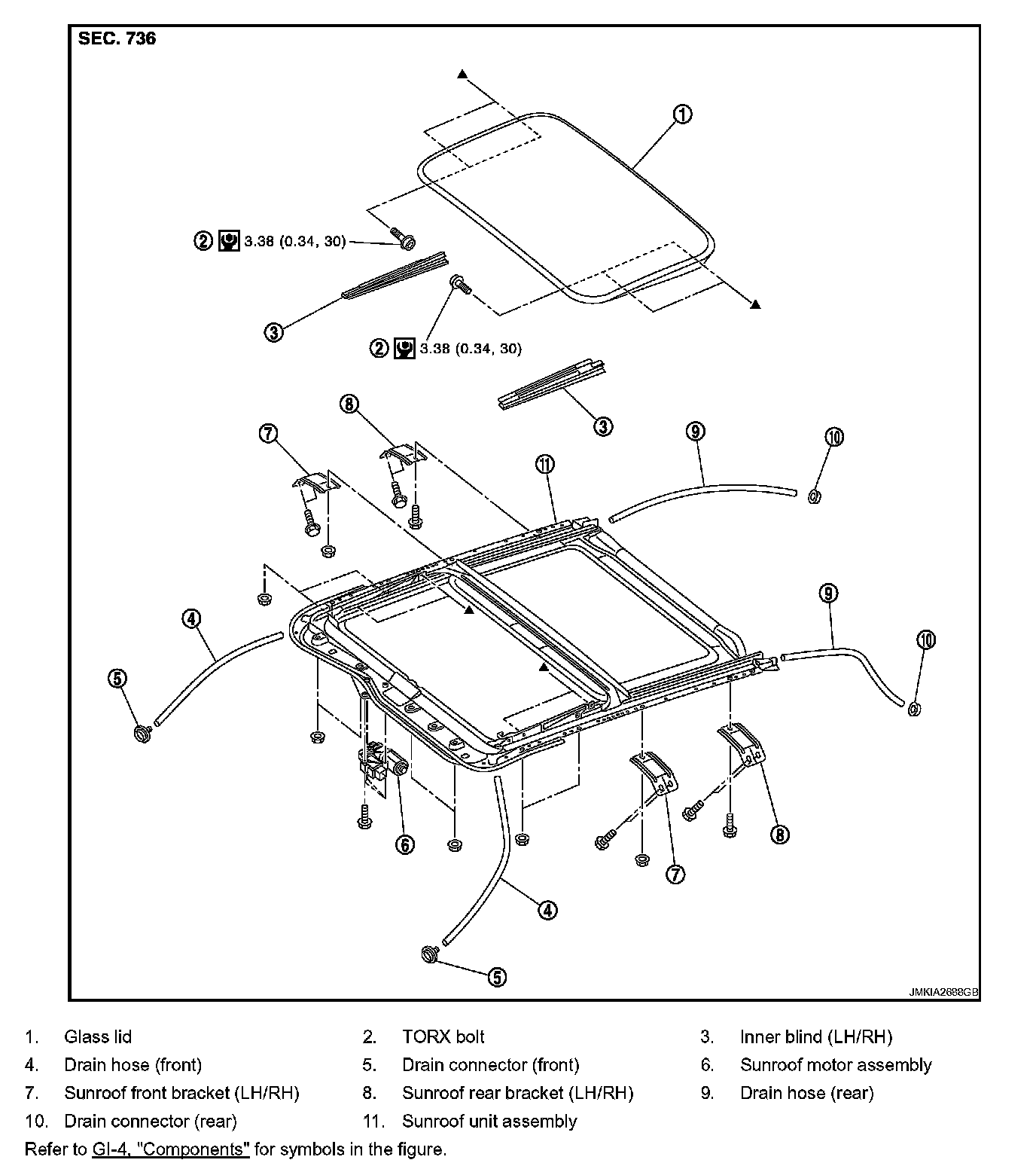

Exploded View
REMOVAL
DISASSEMBLY
