Inspection

INTAKE MANIFOLD


Inspection


INSPECTION AFTER REMOVAL

Surface Distortion

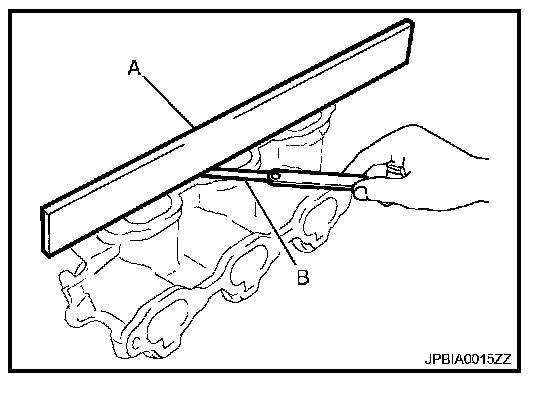

- Check the surface distortion of the intake manifold mating surface with a straightedge (A) and a feeler gauge (B).






Limit : Refer to "Intake Manifold". Intake Manifold

- If it exceeds the limit, replace intake manifold.
