Power Window Main Switch





POWER WINDOW MAIN SWITCH


Reference Value

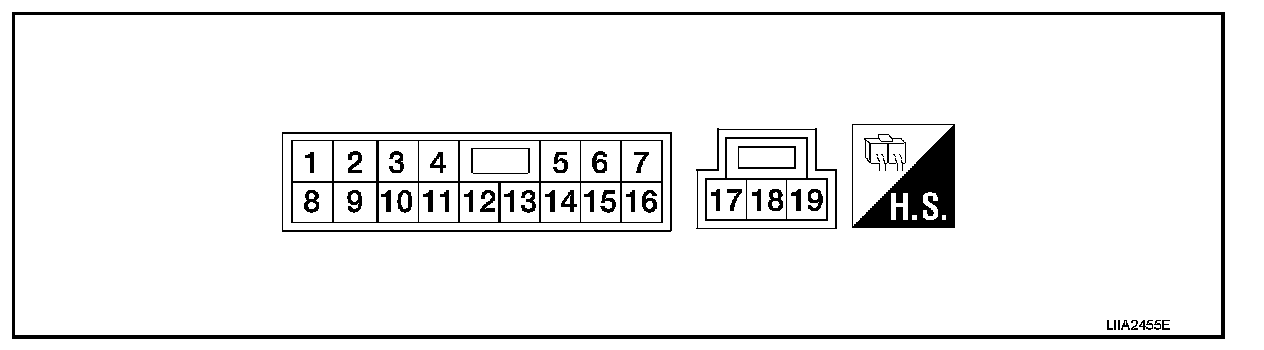

TERMINAL LAYOUT

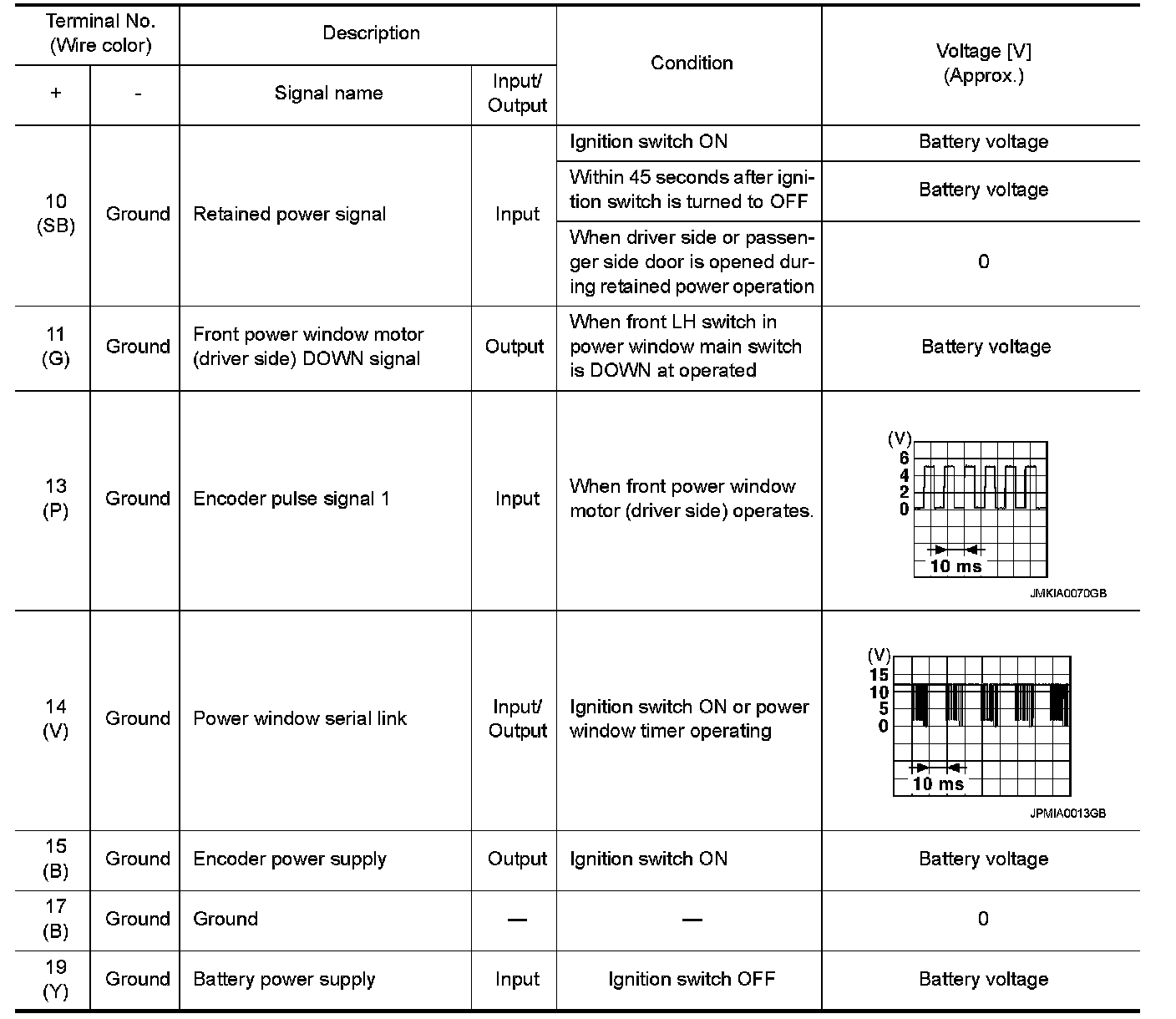

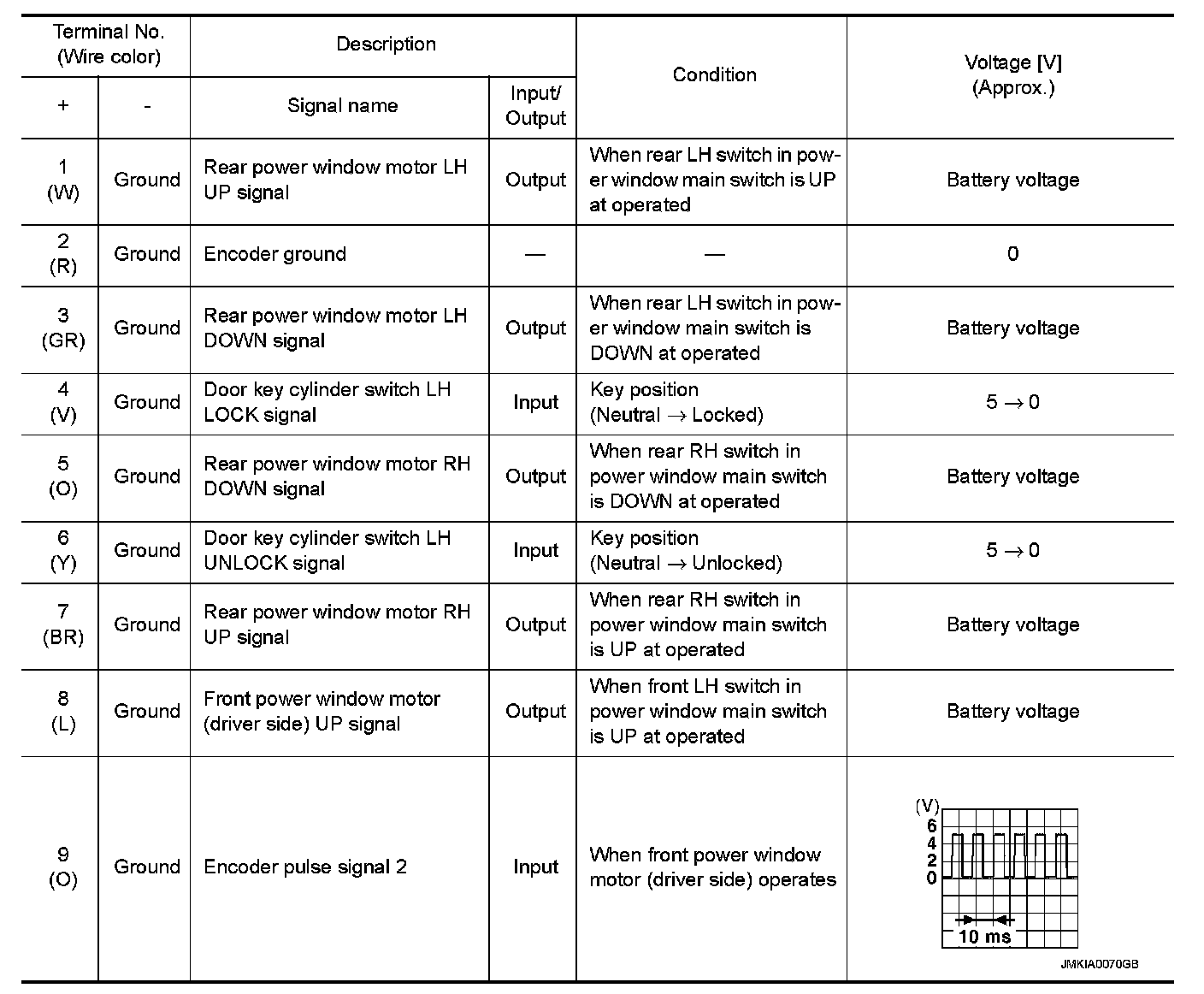

PHYSICAL VALUES
POWER WINDOW MAIN SWITCH
