Disassembly

OIL PUMP


Disassembly

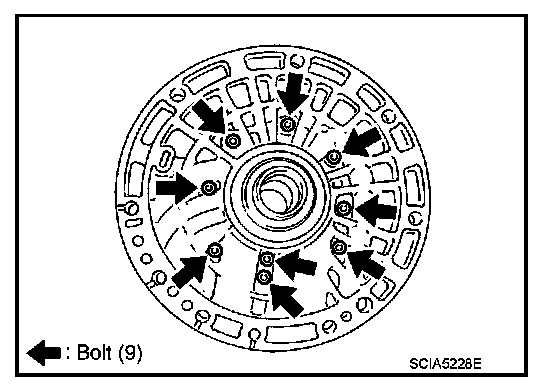

1. Remove oil pump housing from oil pump cover.

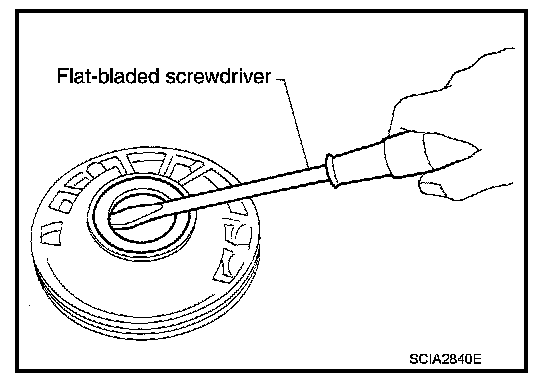

2. Remove oil pump housing oil seal with a flat-bladed screwdriver.






CAUTION:
Be careful not to scratch oil pump housing.

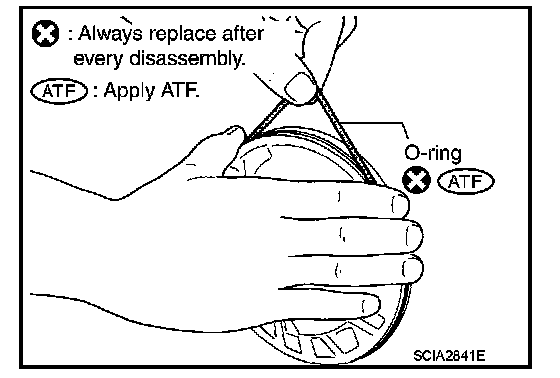

3. Remove O-ring from oil pump housing.

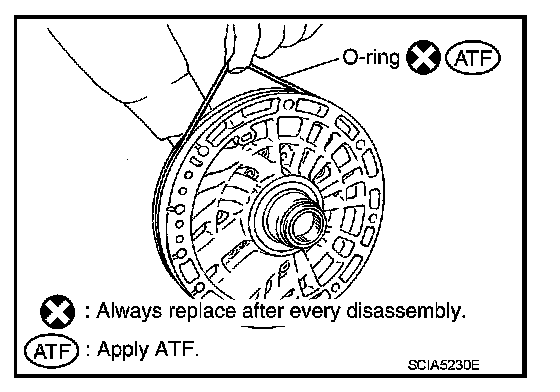

4. Remove O-ring from oil pump cover.
