Assembly

OIL PUMP


Assembly






1. Install O-ring to oil pump cover.





2. Install O-ring to oil pump housing.

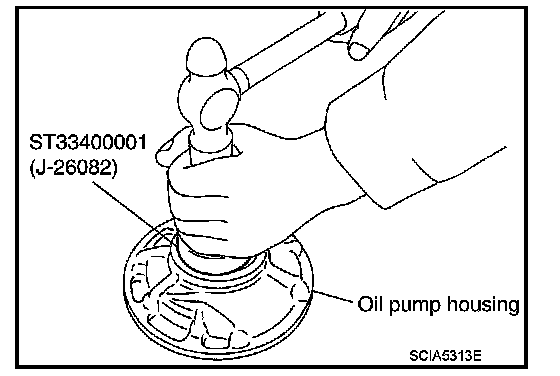

3. Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush.

CAUTION:
- Never reuse oil seal.
- Apply [1][2]ATF to oil seal.





4. Install oil pump housing to oil pump cover.

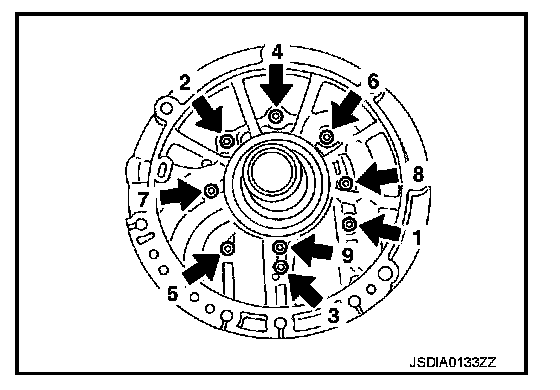

5. Tighten bolts ( ) to the specified torque in numerical order shown in the figure after temporarily tightening them.
