Intake Valve Timing Control
>>

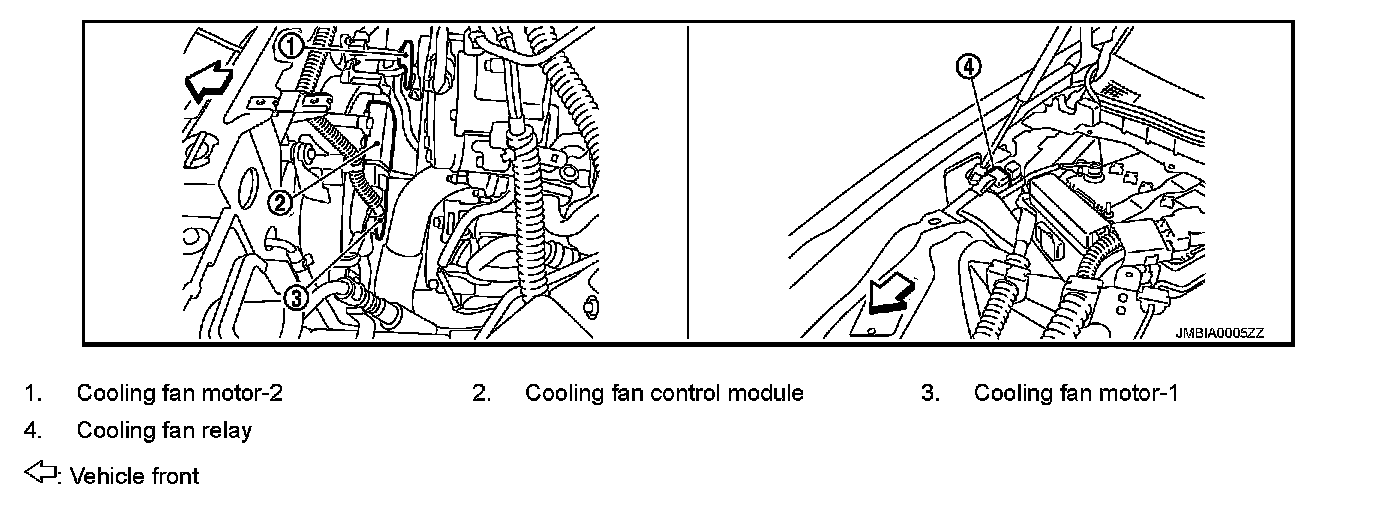

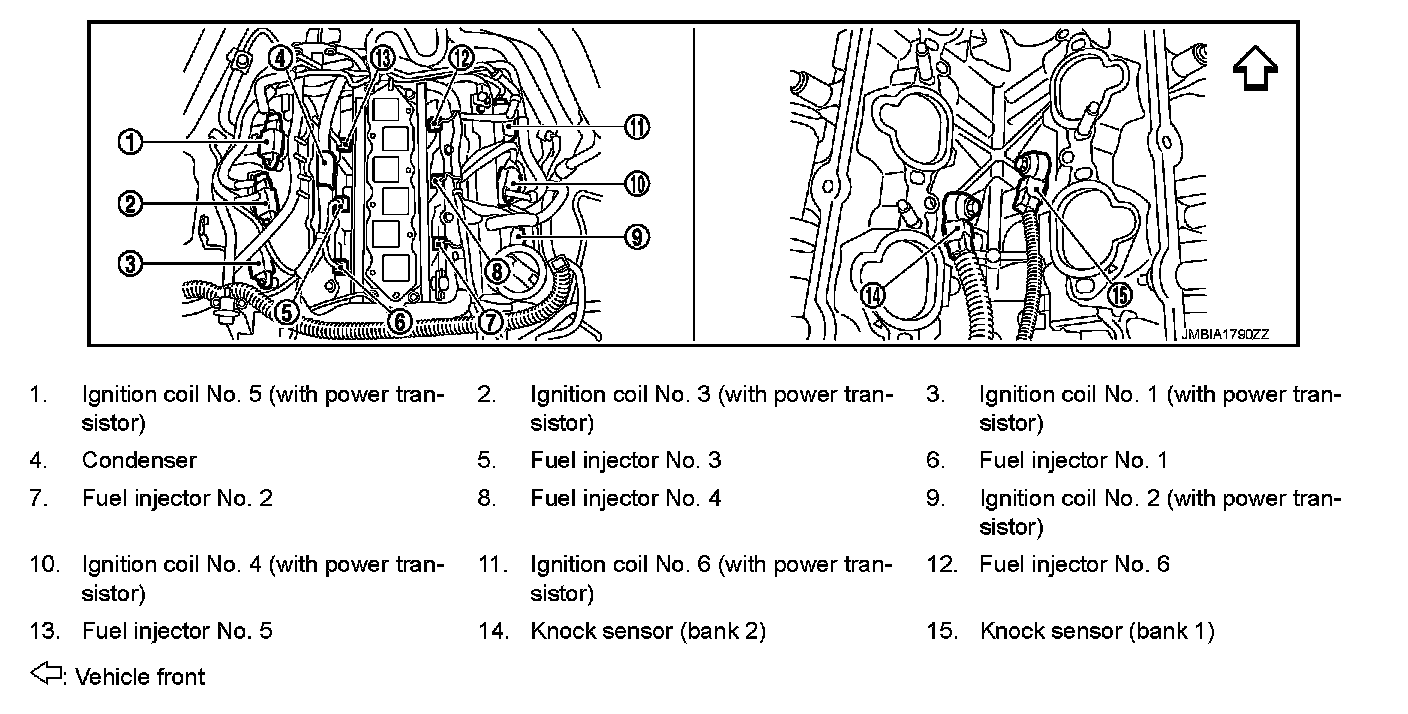

Component Parts Location
Component Parts Location

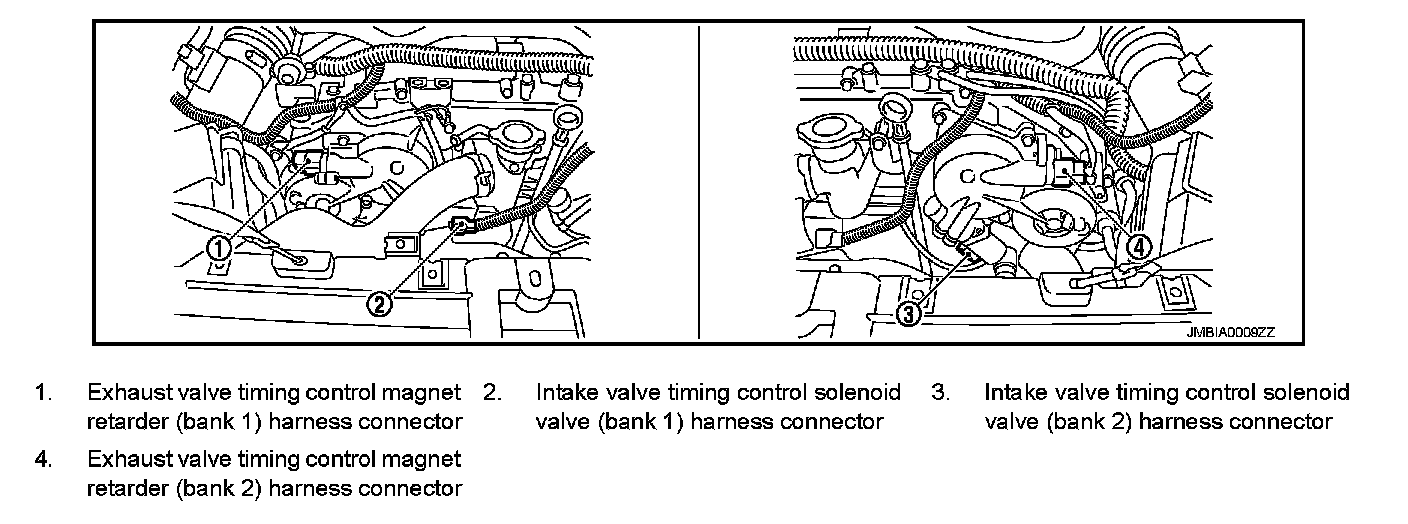

INTAKE VALVE TIMING CONTROL

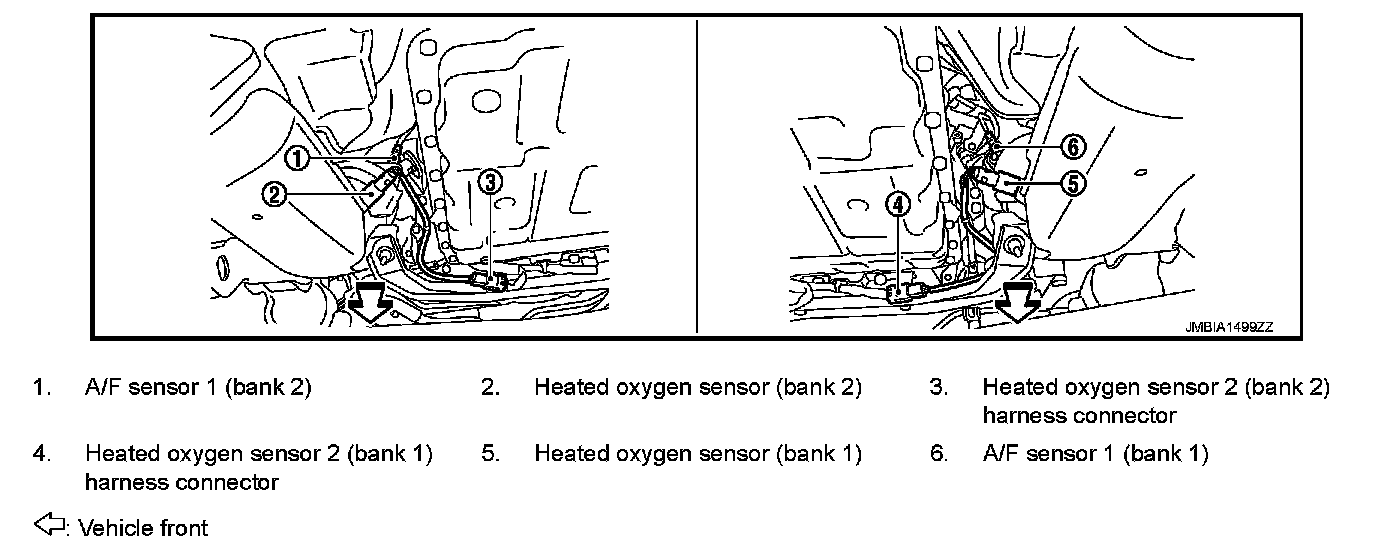

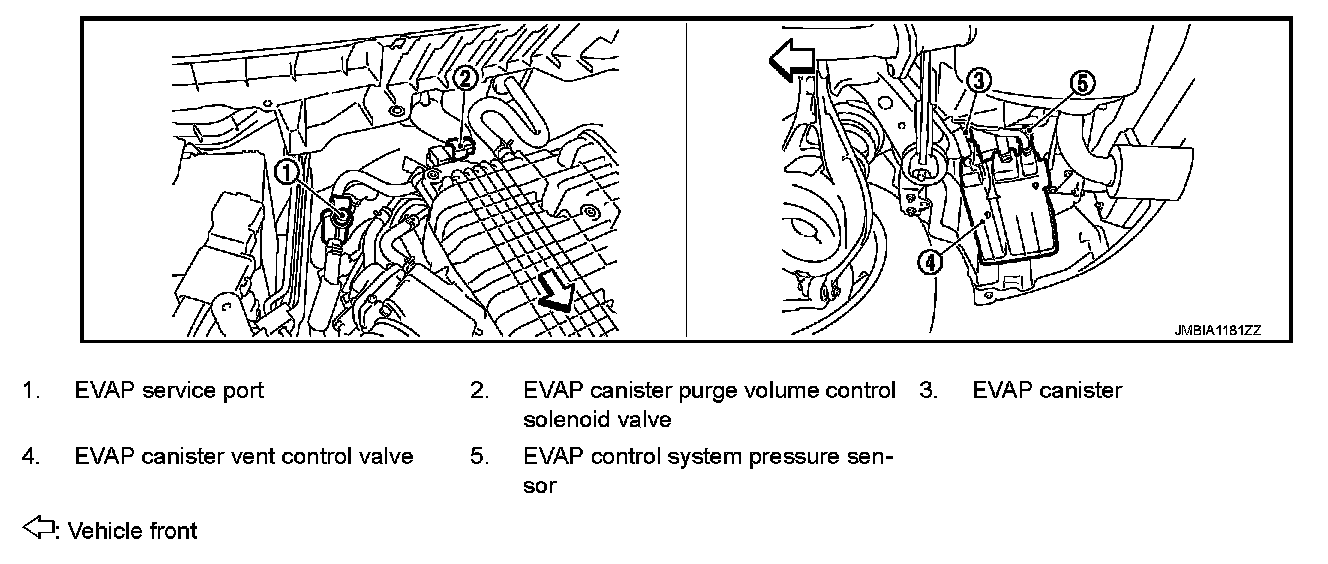

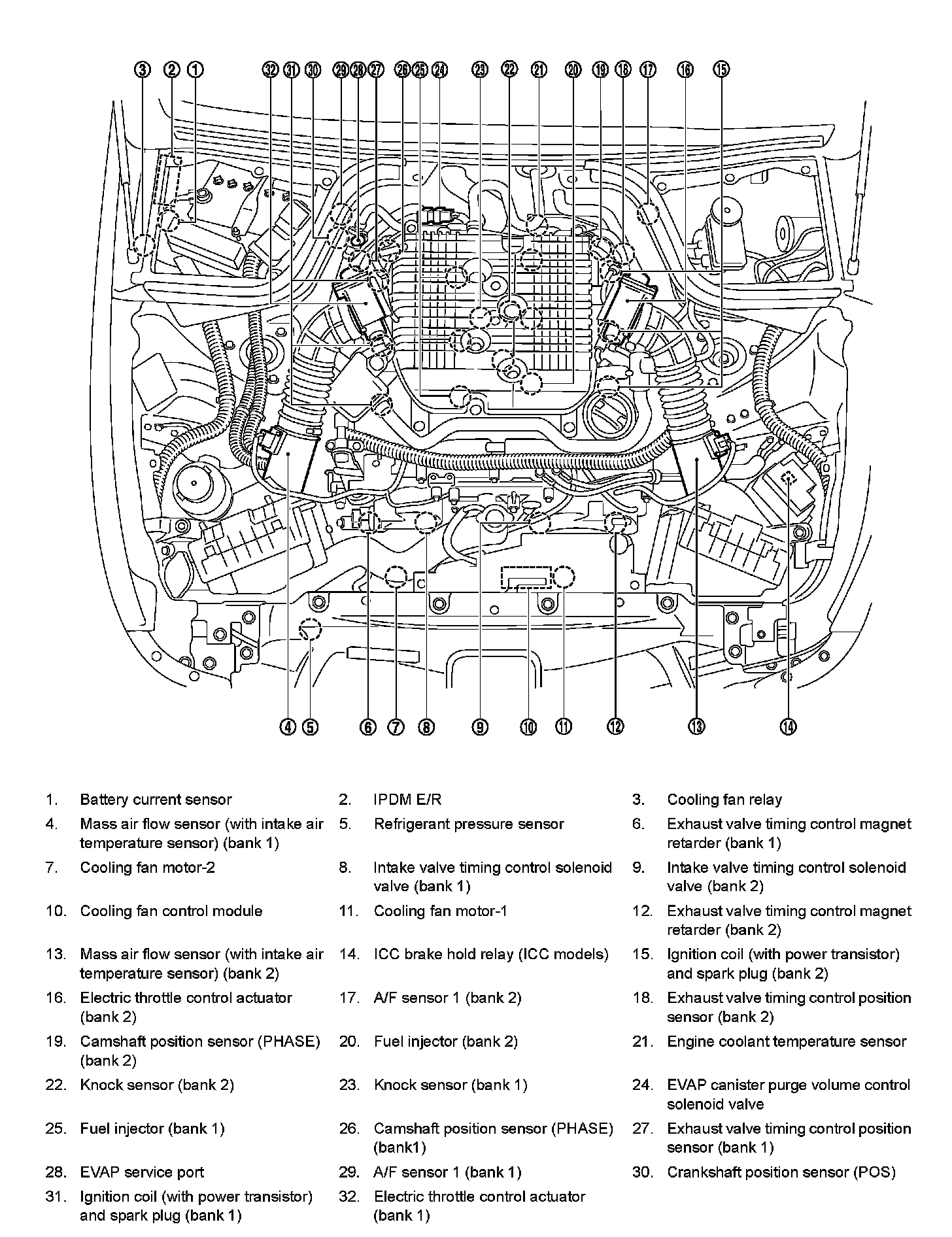

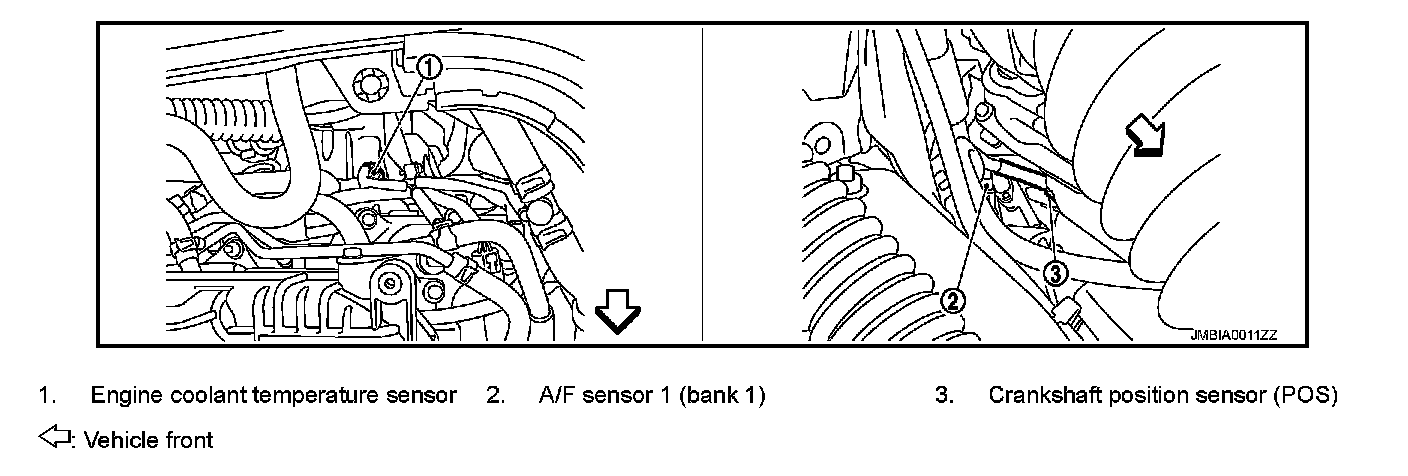

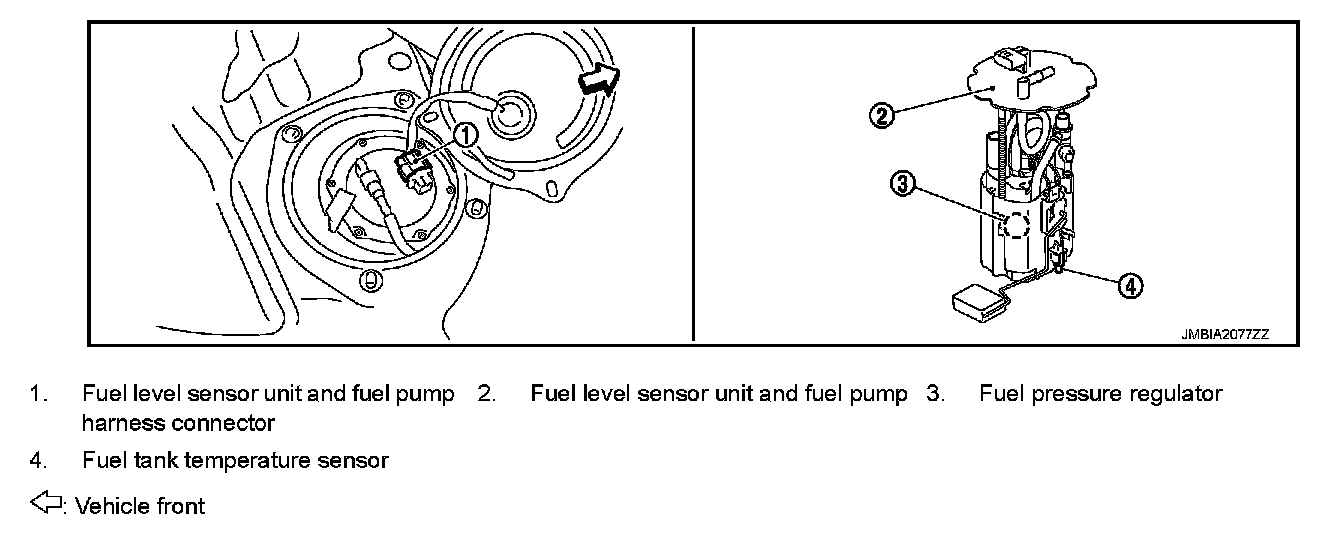

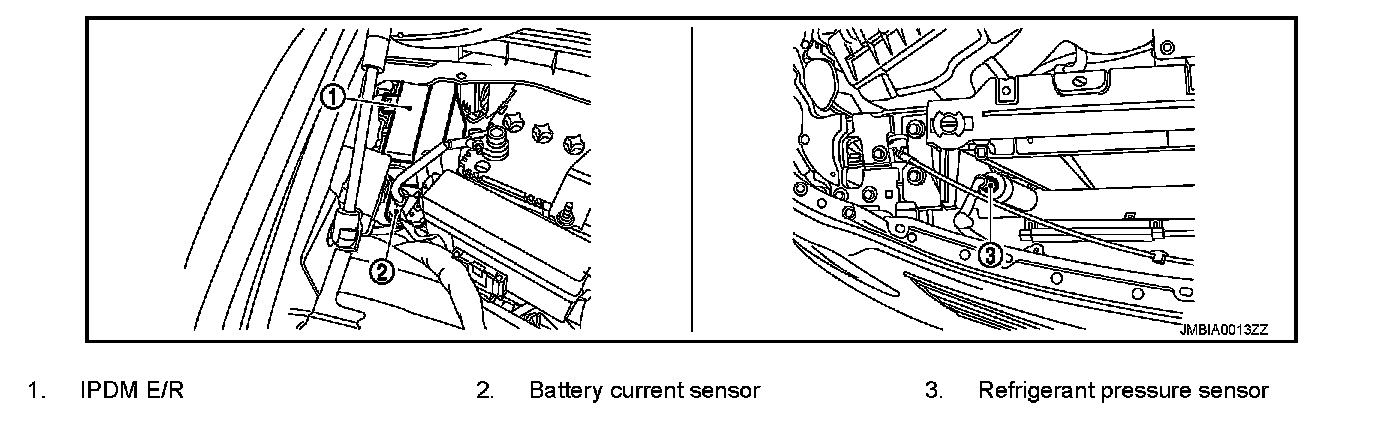

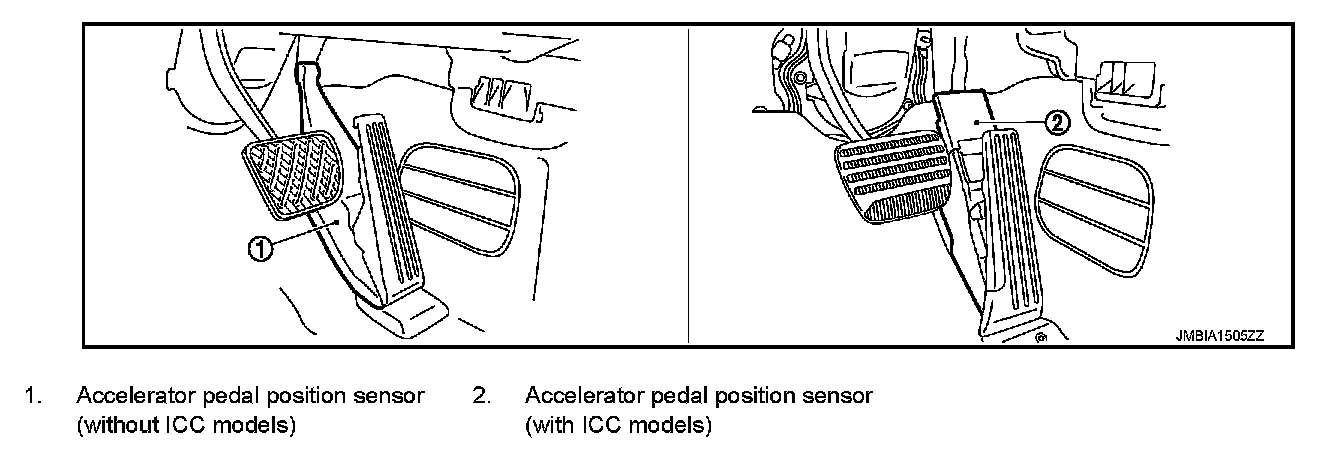

Component Parts Location
