Draining

TRANSFER FLUID


Draining

1. Run the vehicle to warm up the transfer unit sufficiently.

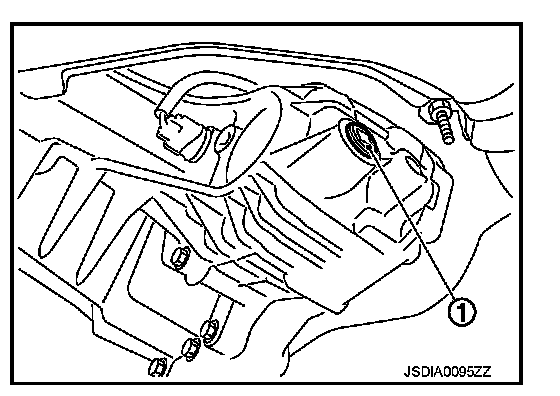

2. Stop the engine, and remove the drain plug (1) to drain the transfer fluid.

CAUTION:
When draining fluid, protect exhaust tube flange with cover.
3. Apply sealant to drain plug. Install drain plug on transfer and tighten to the specified torque. Refer to Exploded View.
Use Genuine Silicone RTV or equivalent. Refer to Recommended Chemical Products and Sealants.

CAUTION:
Remove old sealant adhering to mounting surfaces. Also remove any moisture, oil, or foreign material adhering to application and mounting surfaces.
