ICC Sensor Integrated Unit
>>
DCA
DCA
ICC SENSOR INTEGRATED UNIT
Reference Value

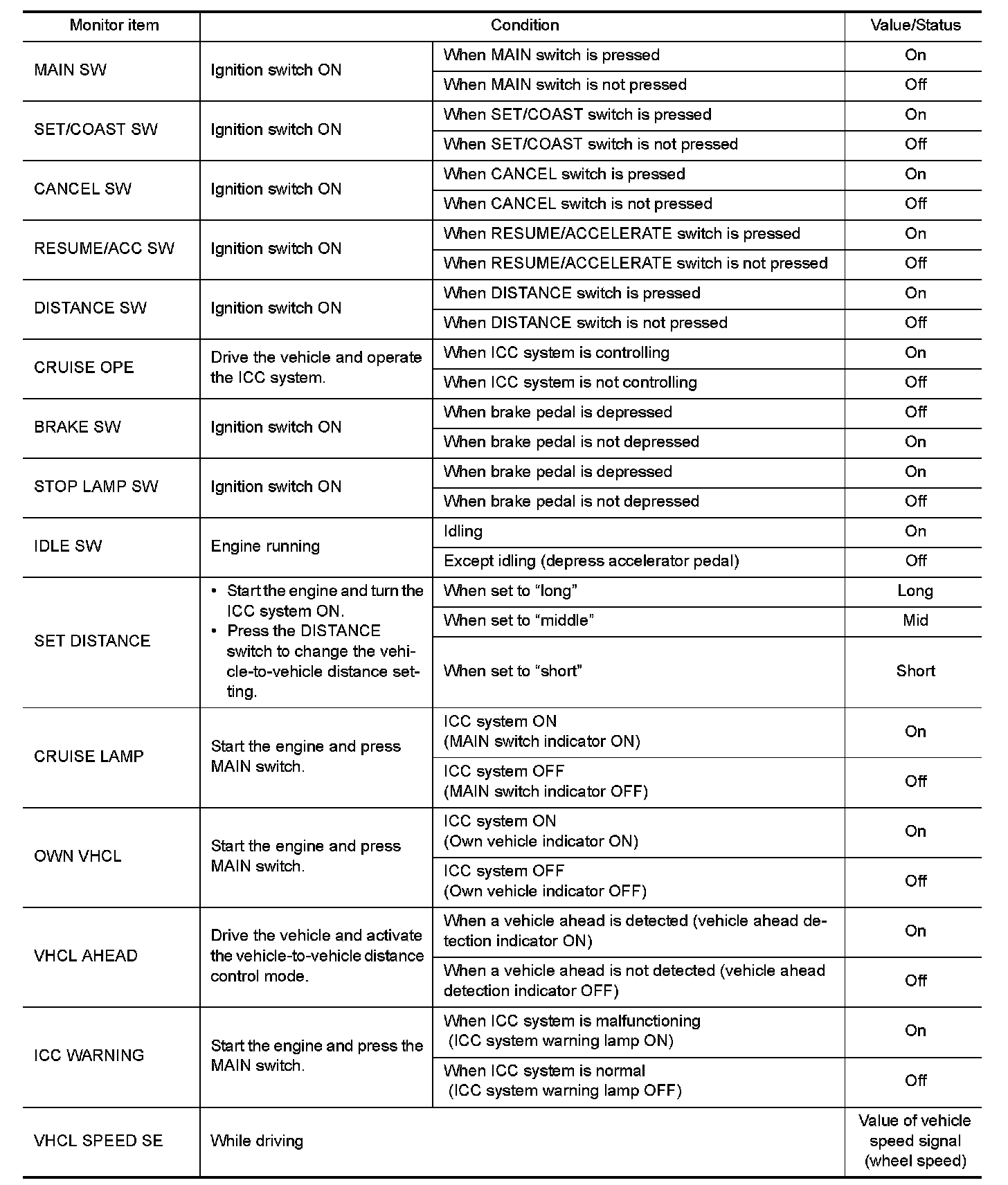

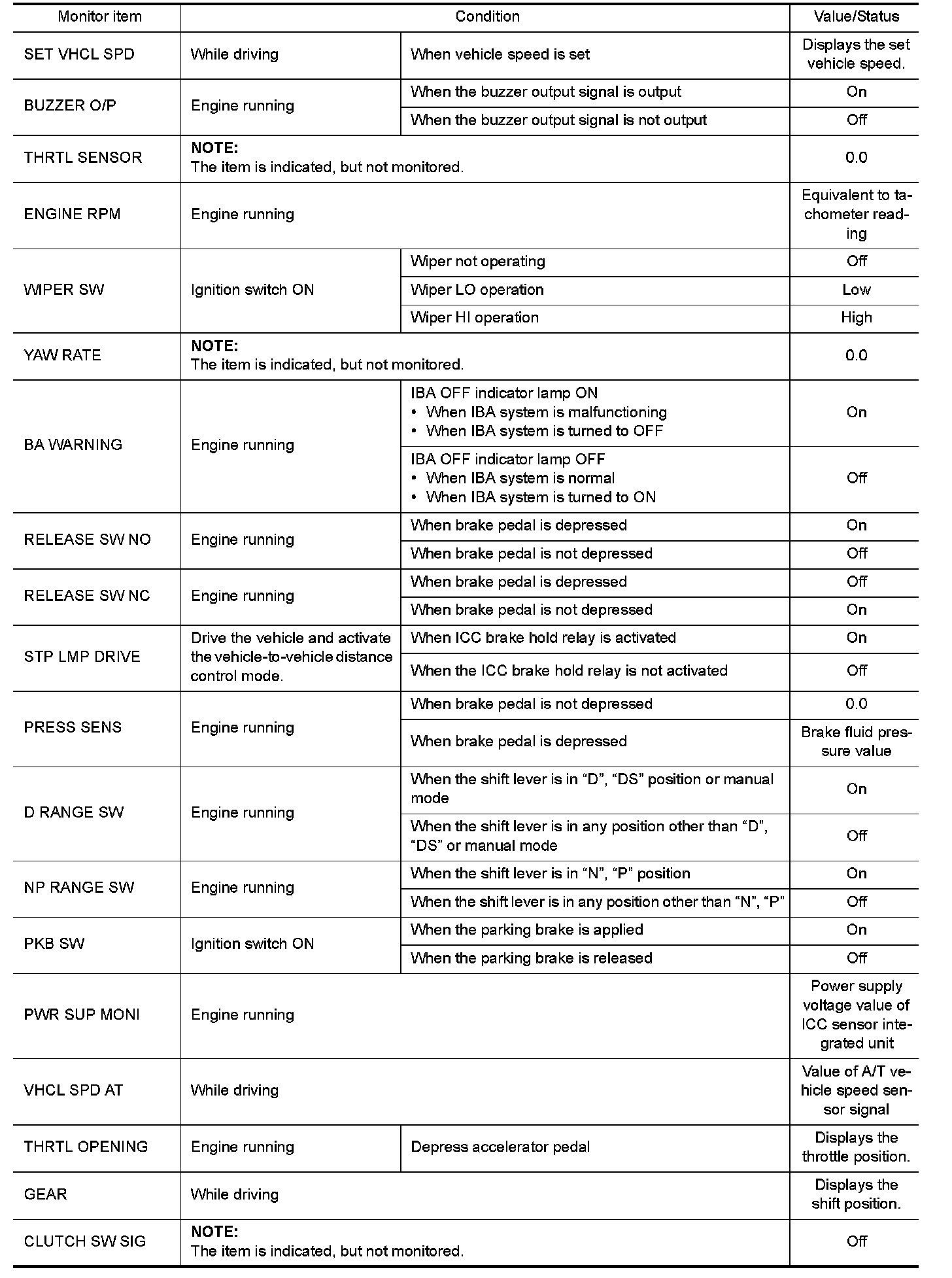

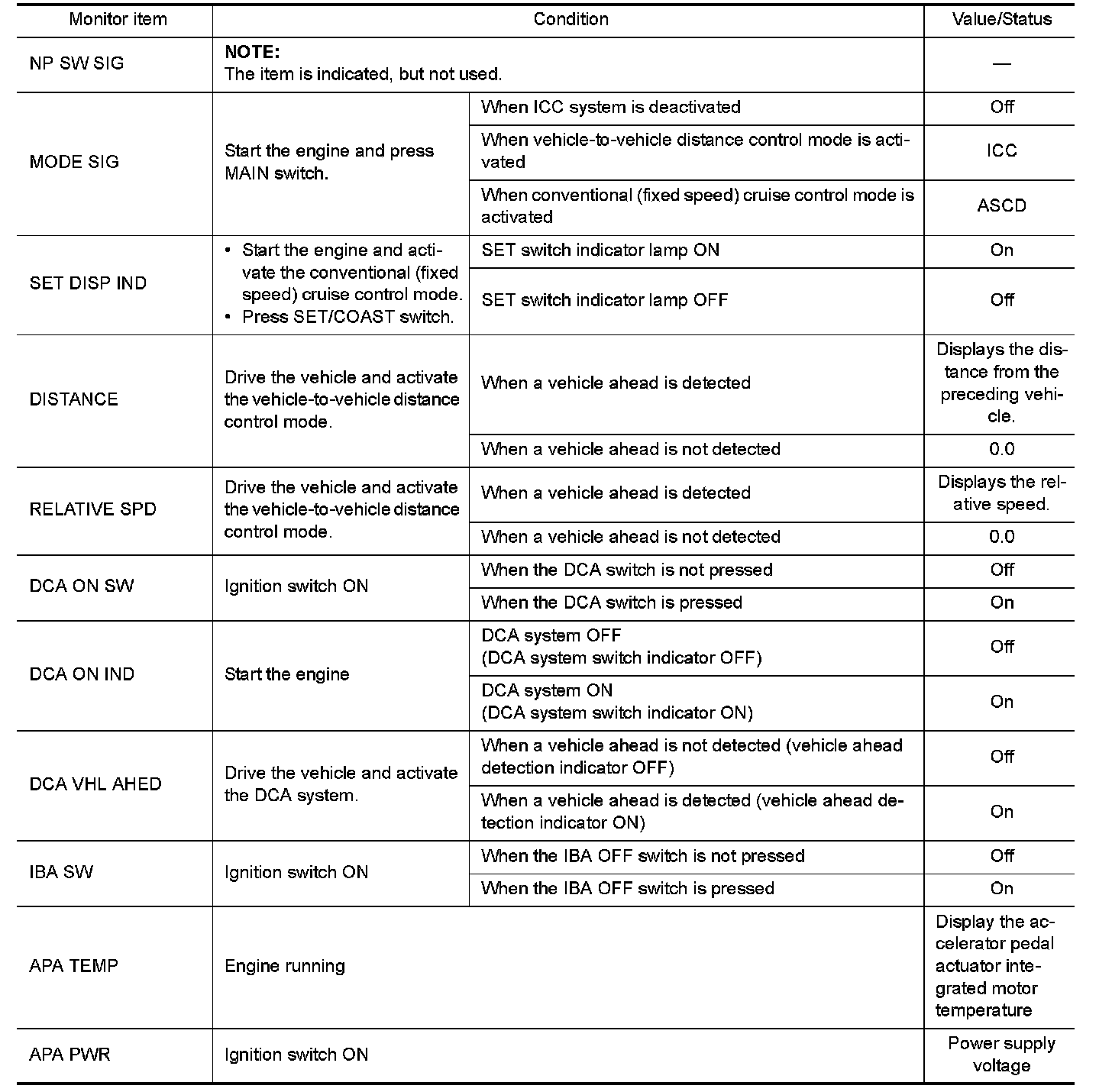

VALUES ON THE DIAGNOSIS TOOL

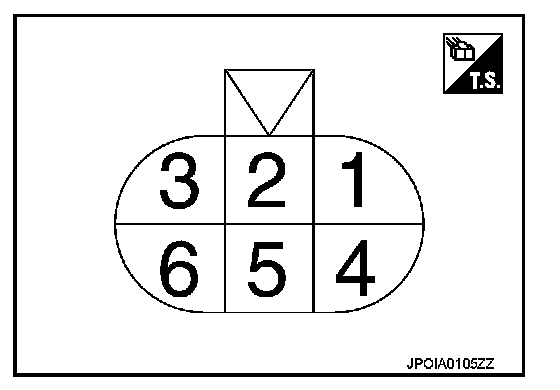

TERMINAL LAYOUT

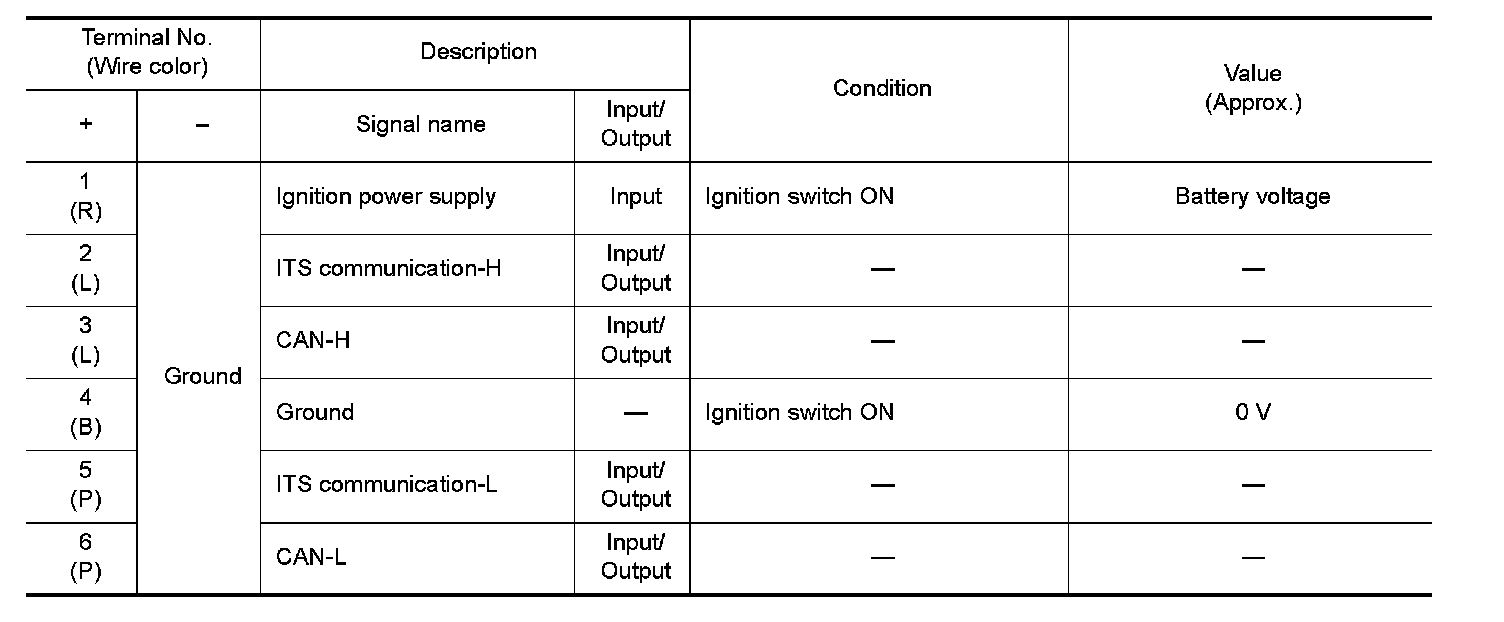

PHYSICAL VALUES
