Home
>>
Infiniti Truck
>>
2009
>>
EX35 AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Brake Pad
>>
Service and Repair
>>
Removal and Replacement
>>
Rear Disc Brake
>>

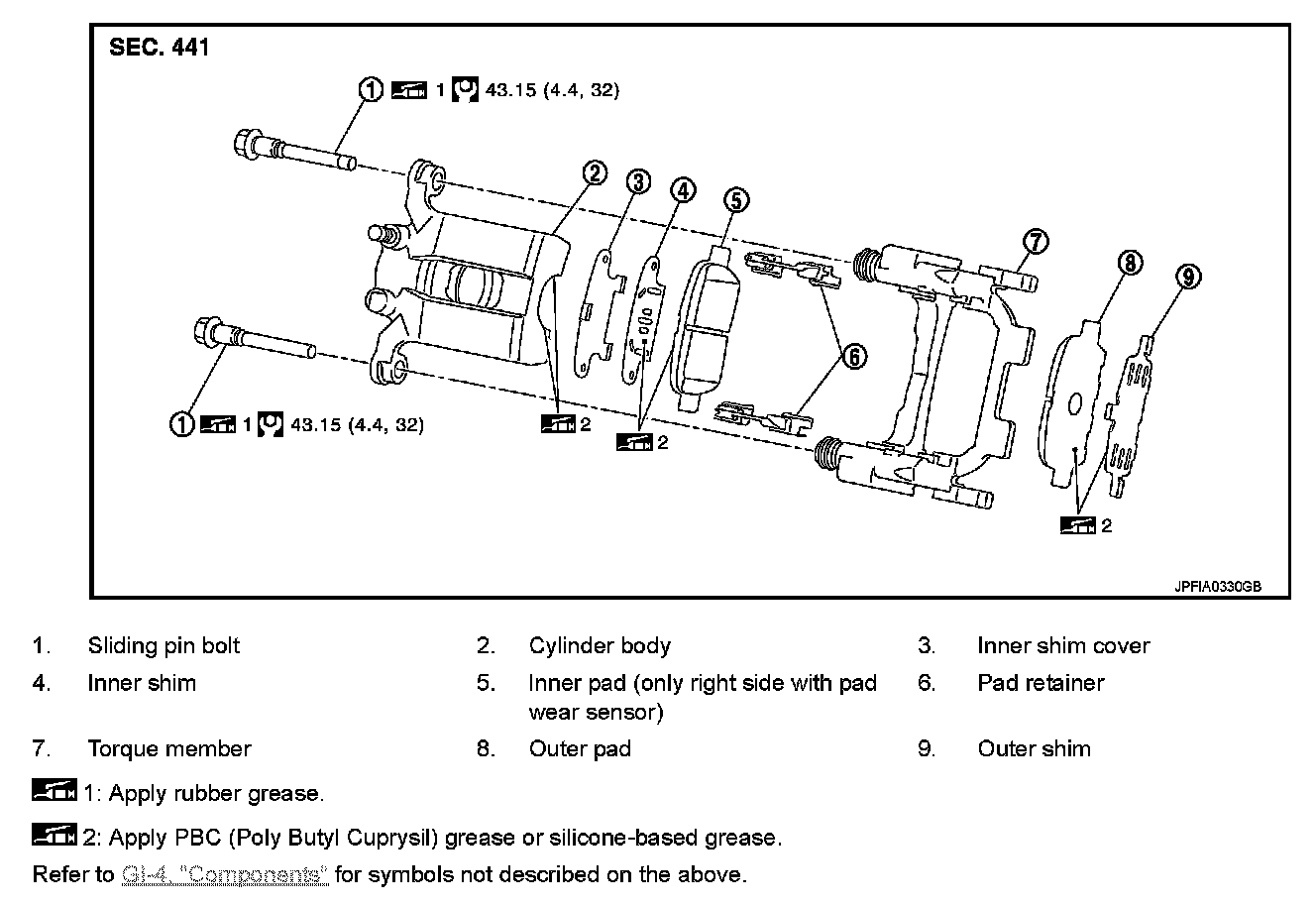

Exploded View
Exploded View
REAR DISC BRAKE
BRAKE PAD
: Exploded View
