Home
>>
Infiniti Truck
>>
2009
>>
EX35 AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Description and Operation
>>
VDC/TCS/ABS
>>
System Diagram
System Diagram
ABS
System Diagram

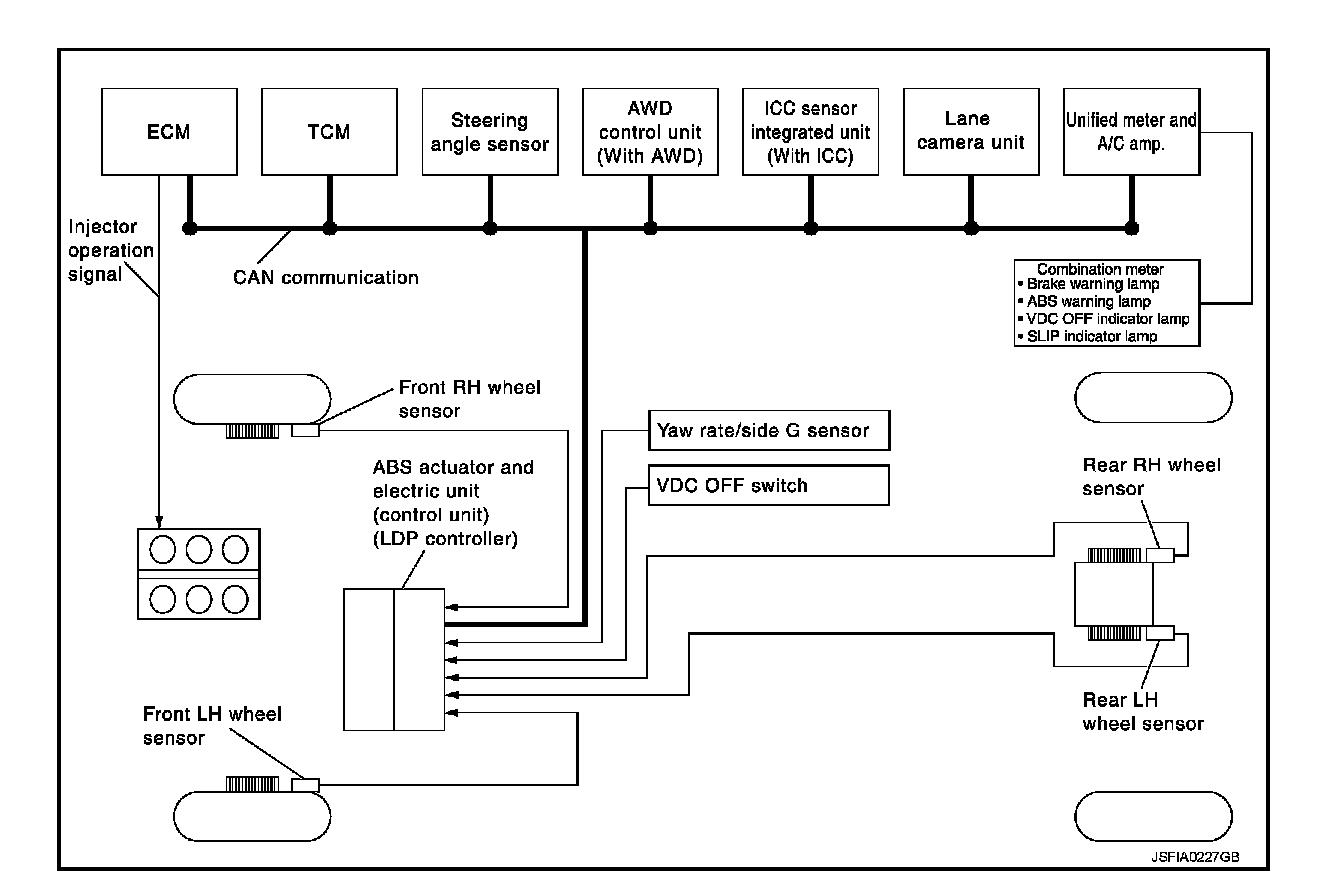

With LDP

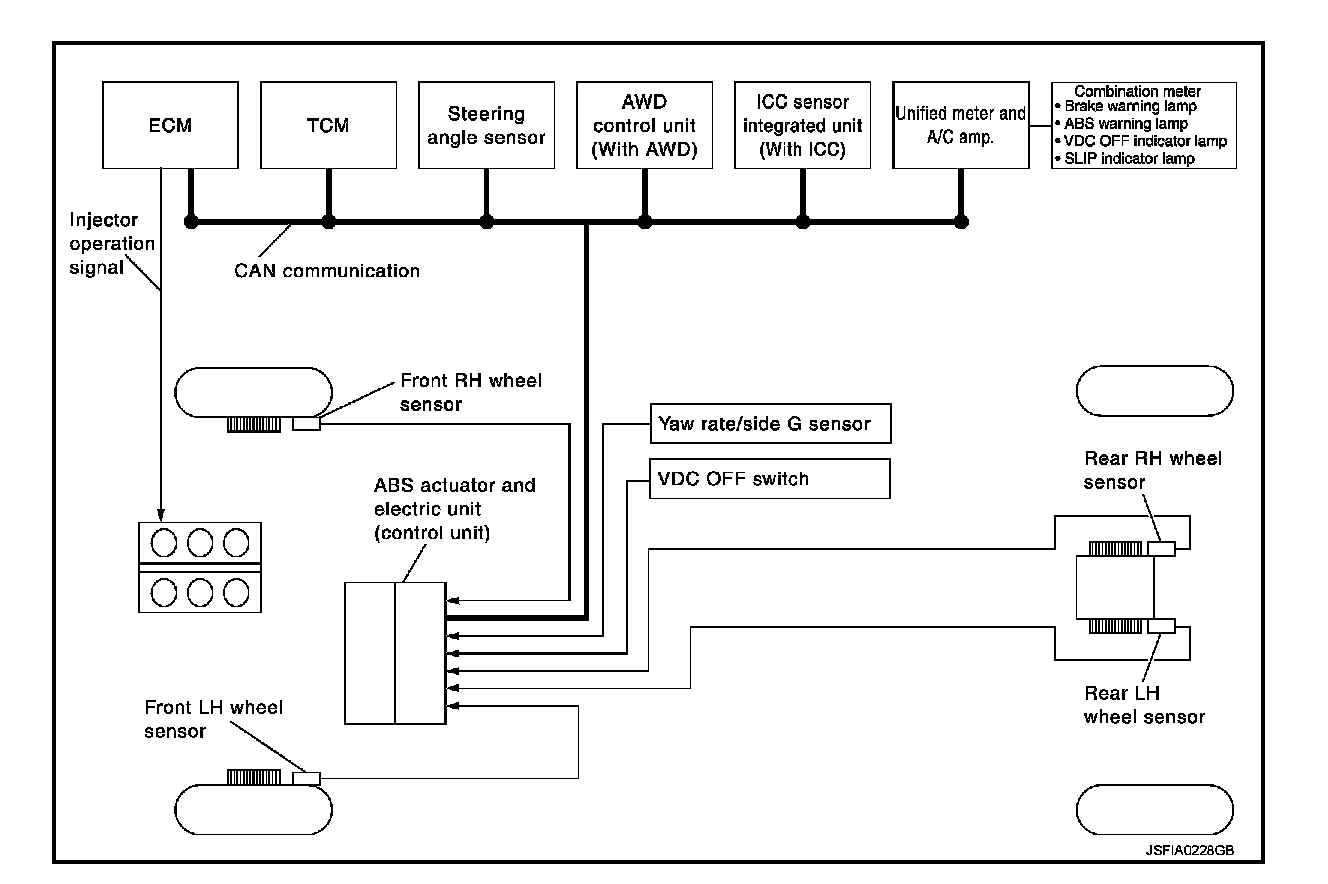

Without LDP
