EGR Control Solenoid: Testing and Inspection

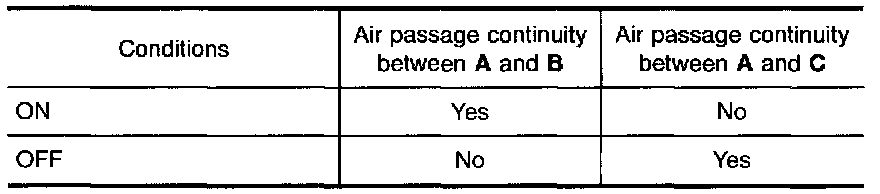

Component InspectionCheck air passage continuity.

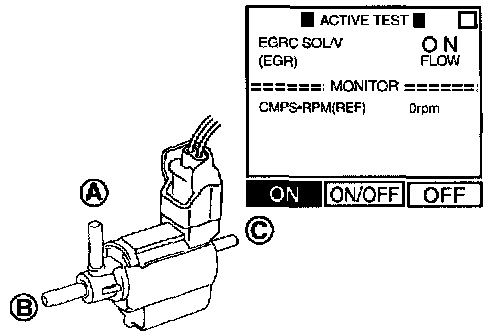

With CONSULT
Perform "EGRC SOLENOID VALVE" in "ACTIVE TEST" mode.

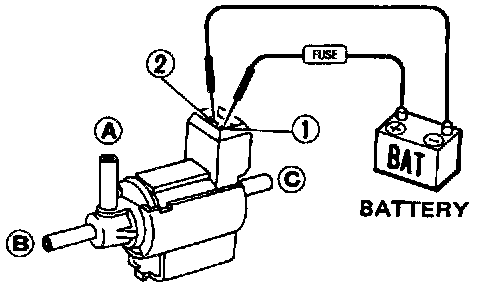

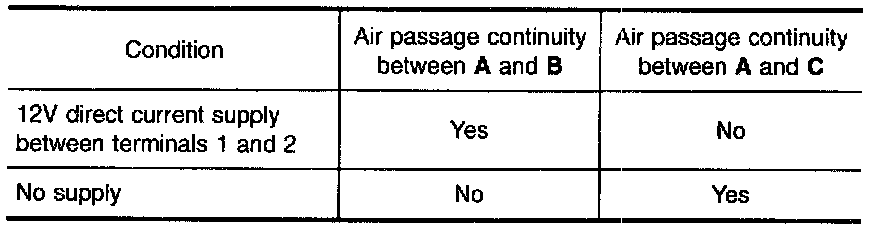

Without CONSULT
If NG or operation takes more than 1 second, replace solenoid valve.
Check air passage continuity.
With CONSULT
Perform "EGRC SOLENOID VALVE" in "ACTIVE TEST" mode.
Without CONSULT
If NG or operation takes more than 1 second, replace solenoid valve.
