Electrical Diagrams





Circuit Diagrams

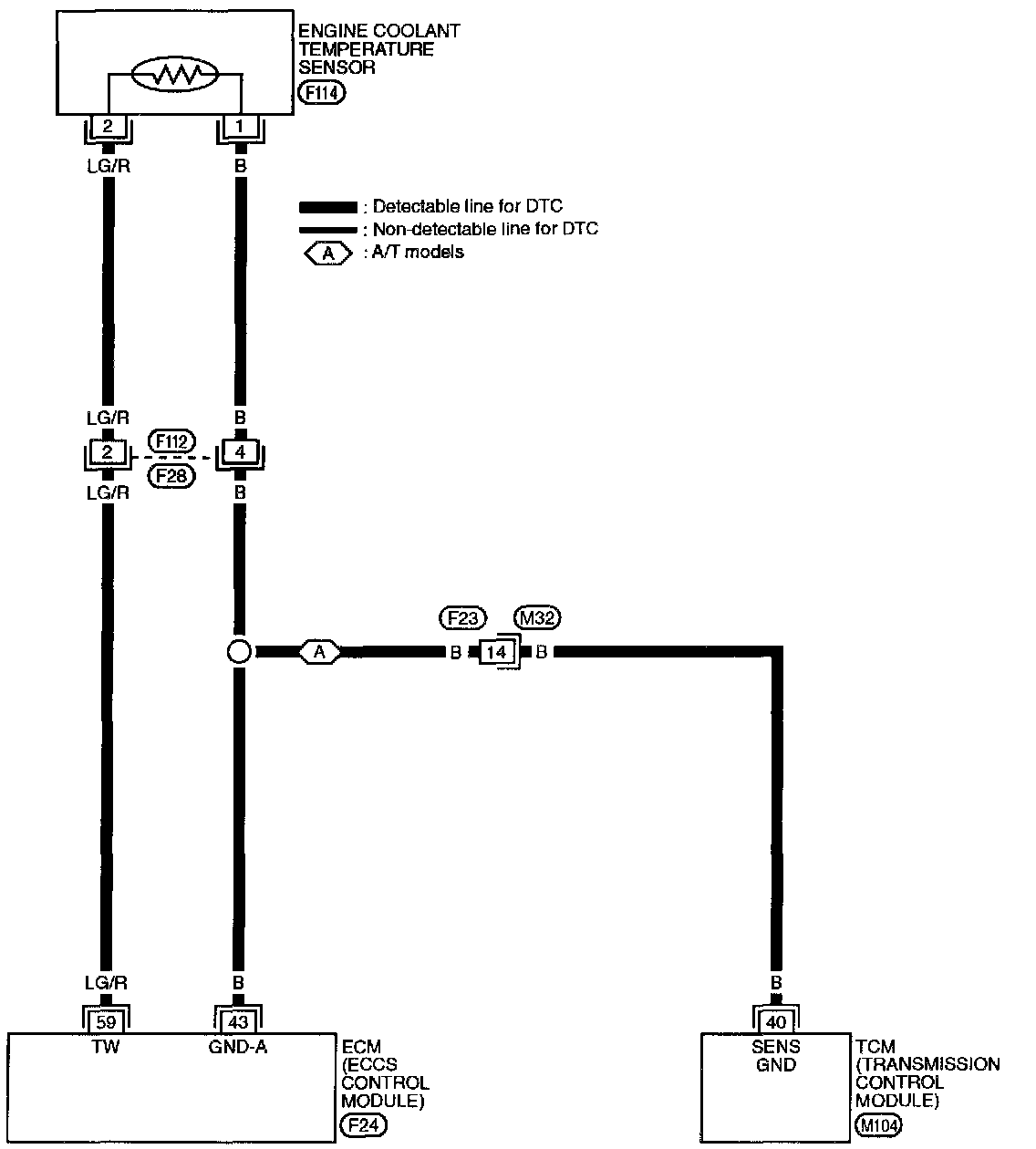

Engine Coolant Temperature Sensor (ECTS) (Circuit) Circuit Connectors
