Home >> Infiniti Truck >> 1999 >> QX4 V6-3275cc 3.3L SOHC MFI (VG33E) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

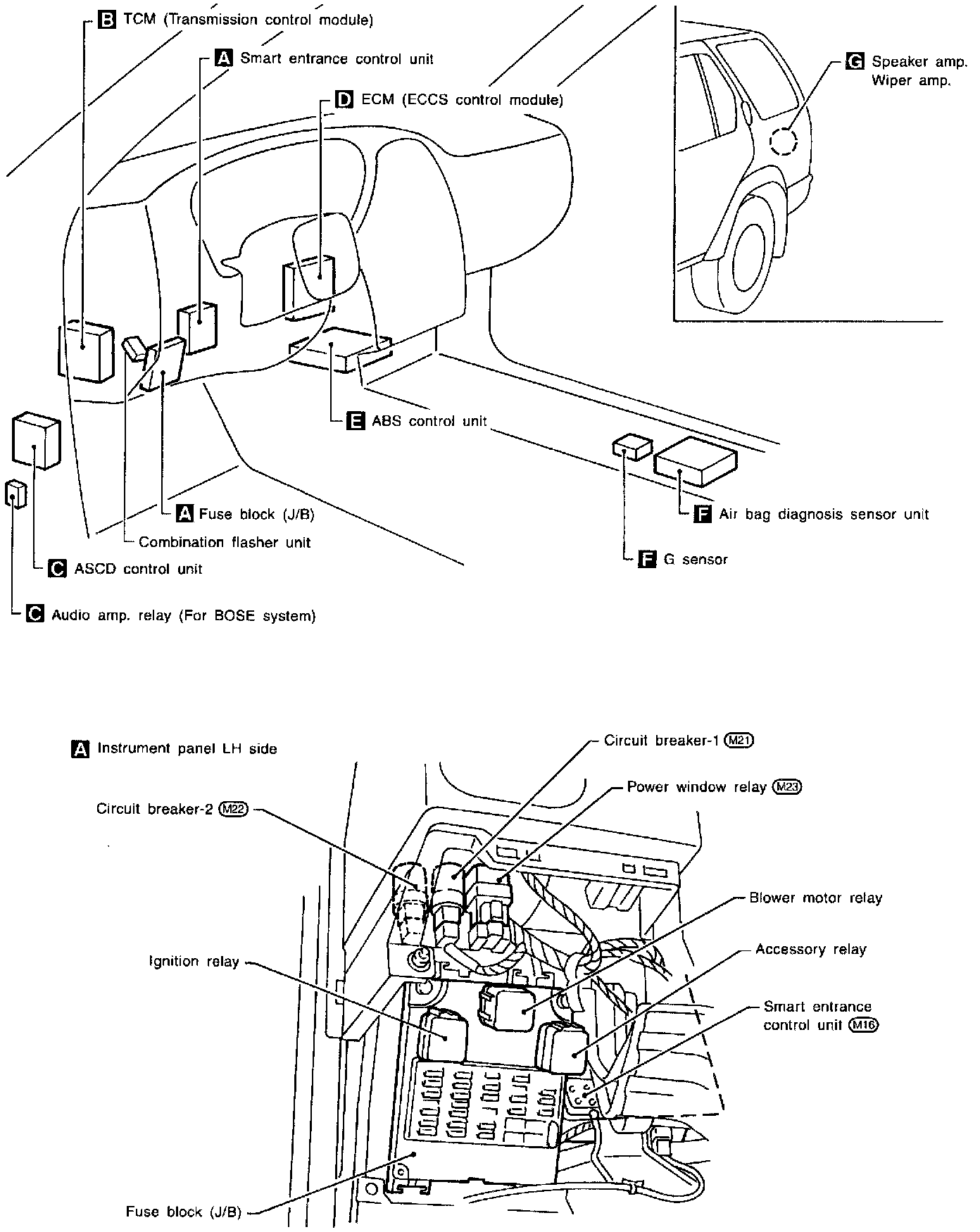

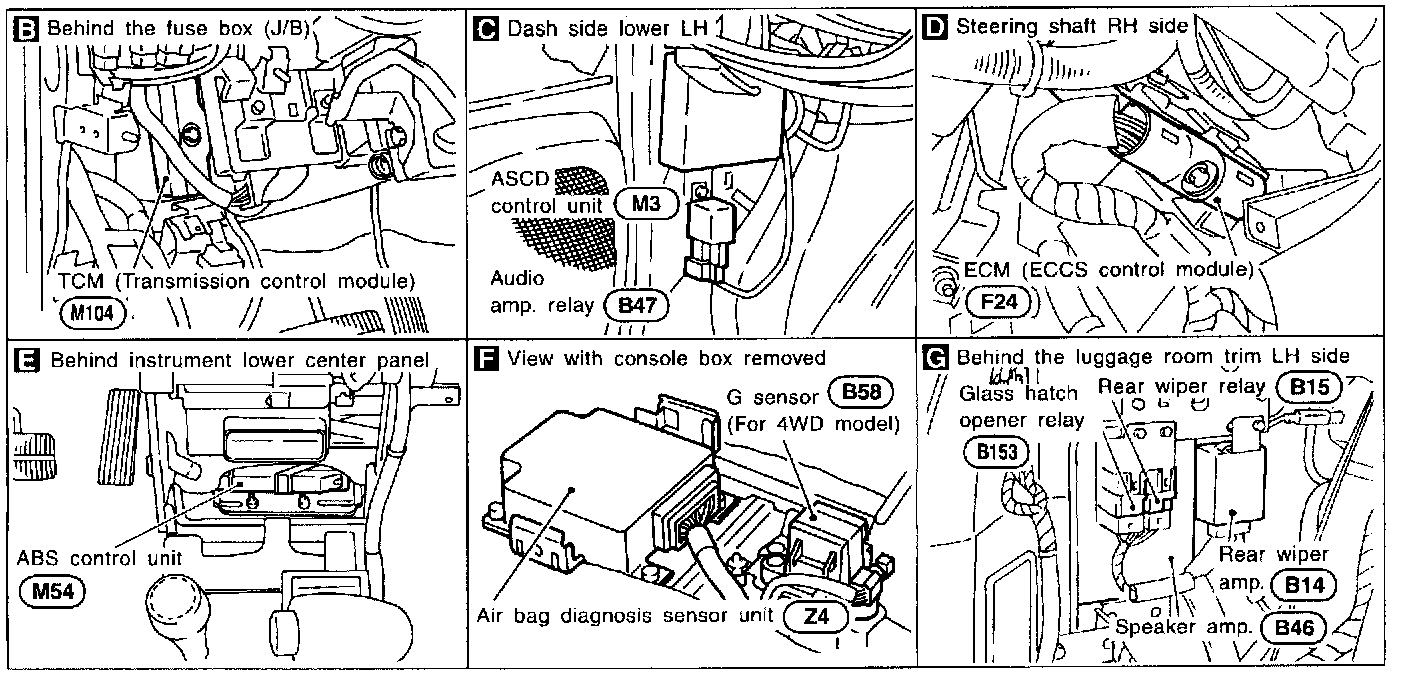

Component Parts and Harness Connector Location








Passenger Compartment
