Schematic Diagrams
Schematic Diagrams
Circuit Diagram (1)

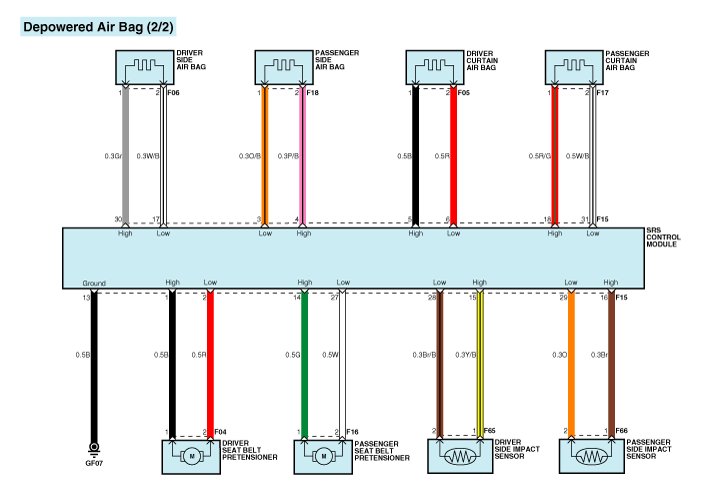

Circuit Diagram (2)

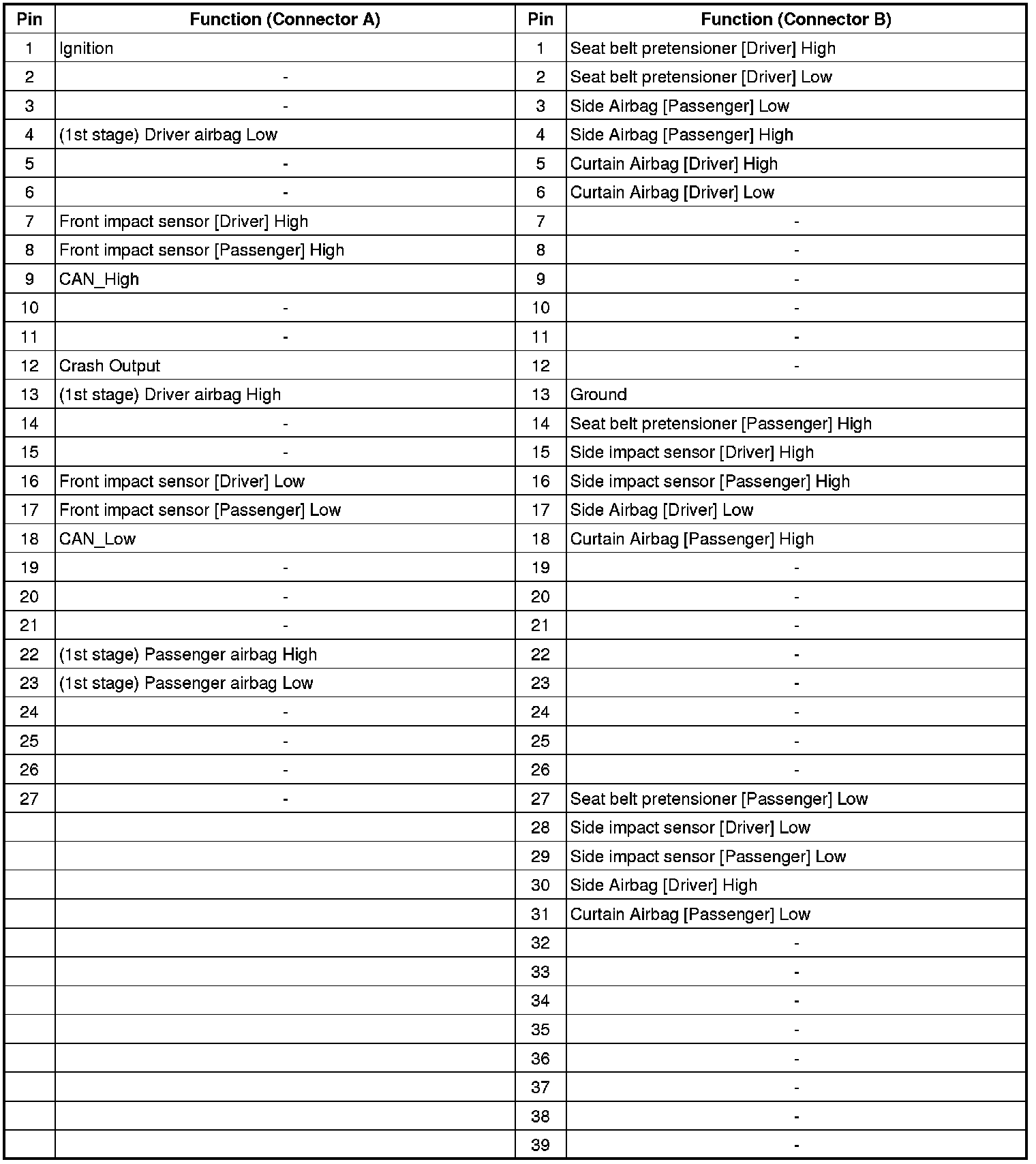

SRSCM Connector terminal
