Speaker: Service and Repair

Inspection

1. Troubleshooting for Speaker

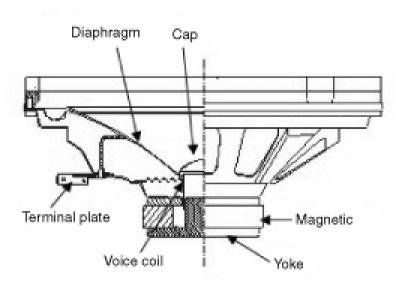

(1) Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker mounting screws are removed and the wiring connector is connected to remove any possible vibration transmitted from body trims and surrounding parts.

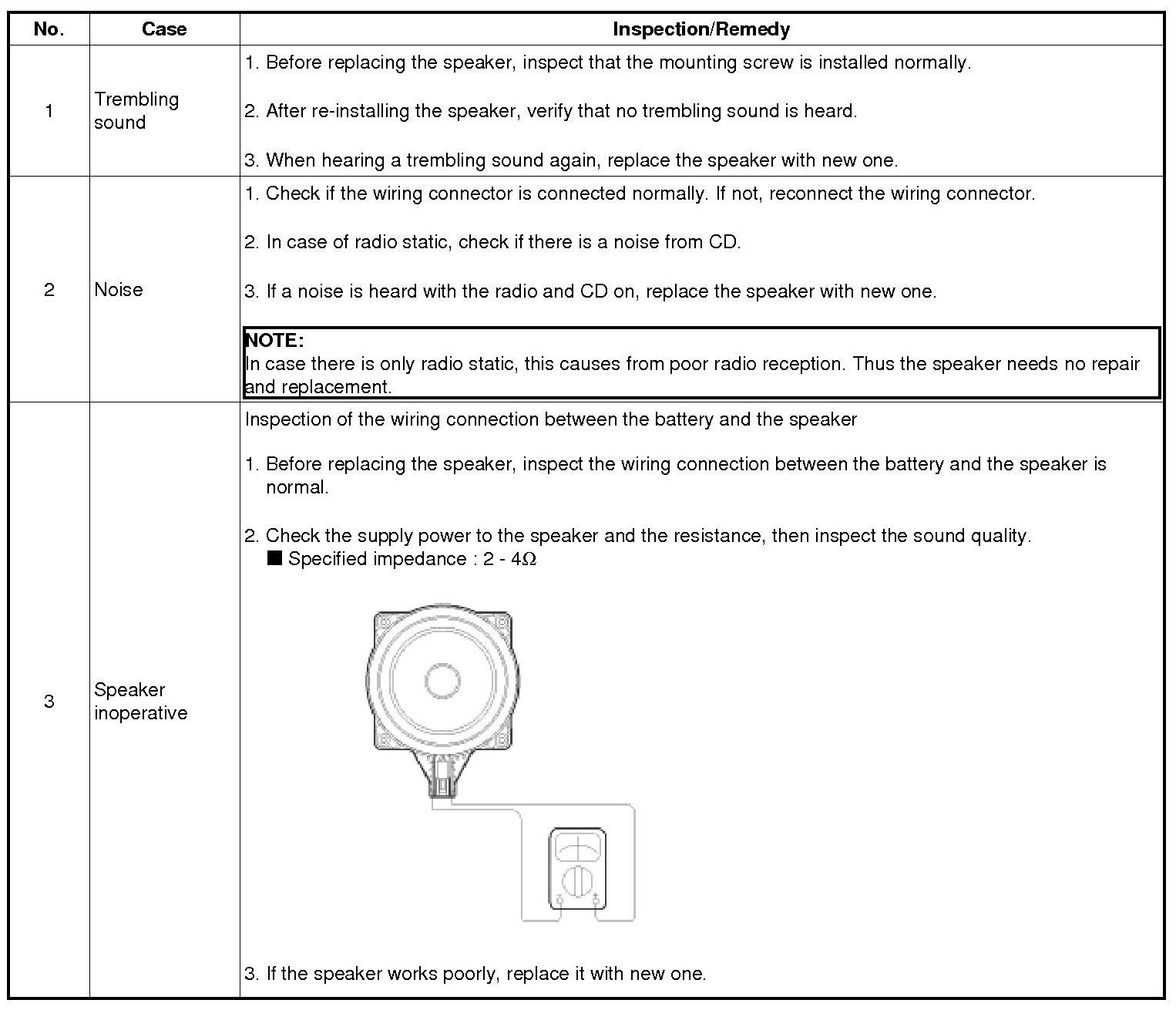

(2) Case Troubleshooting






CAUTION:
When handling the speakers:
- Do not damage the speaker with impact, like dropping or throwing it.
- Be careful not to drop water and oil on the speakers.
- Caution during handling of speaker because the material of diaphragm is paper which is easily torn by impact or external force.
- Modifying the audio system may cause damage to the speakers. If this is the case, the speakers are not covered by the manufacturer's warranty.

Removal

Front Speaker
1. Remove the front door trim panel and speaker connector.

2. Remove the front speaker (A) after loosening 4 rivets.





Rear Speaker (Right)
1. Remove the rear door trim panel and speaker connector.

2. Remove the rear speaker (A) after removing 4 rivets.





Rear Speaker (Left)
1. Remove the rear door trim panel and speaker connector.

2. Remove the rear speaker (A) after removing 4 bolts.





Center Speaker
1. Remove the crash pad upper speaker cover (A).




2. Disconnect the connector, after loosening 2 screws then remove the center speaker (A).





Midrange Speaker
1. Remove the front door trim panel and speaker connector.

2. Remove the front midrange speaker, after loosening 2 screws.





Subwoofer Speaker
1. Remove the rear filler trim panel and speaker connector.

2. Remove the subwoofer speaker (A), after loosening 2 bolts and 2 nuts.






Installation

Front Speaker
1. Install the front speaker.
2. Install the rivets and connect the connector.
3. Install the front door trim panel.

Rear Speaker (Right)
1. Install the rear speaker.
2. Install the rivets and connect the connector.
3. Install the door trim panel.

Rear Speaker (Left)
1. Install the rear speaker after connecting the connector.
2. Install the door trim panel.

Center Speaker
1. Install the center speaker after connecting the connector.
2. Install the center speaker cover.

Mindrange Speaker
1. Install the midrange speaker after connecting the connector.
2. Install the front door trim panel.

Subwoofer Speaker
1. Install the subwoofer speaker after connecting the connector.
2. Install the rear filler trim panel.
