Hyundai
>>
2013
>>
Genesis Sedan V8-4.6L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Solenoid
>>
Diagrams
>>
Damper Clutch Control Solenoid Valve
Damper Clutch Control Solenoid Valve

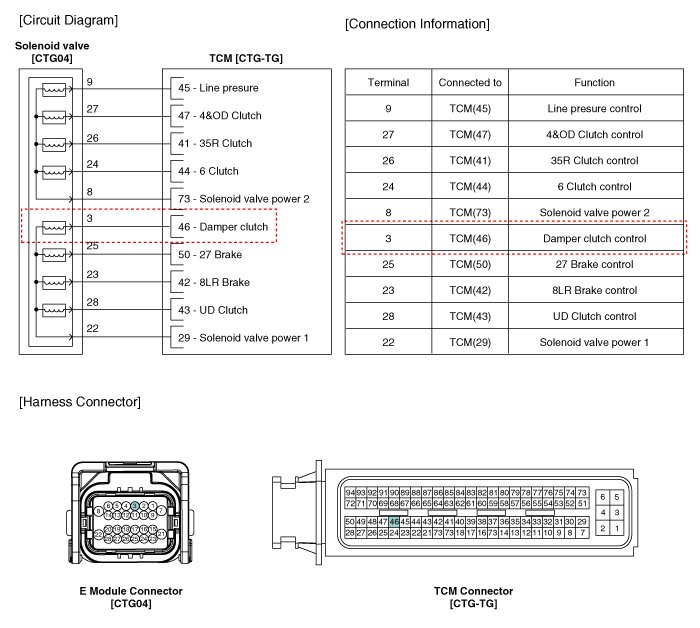

Circuit Diagram
