Home
>>
Hyundai
>>
2013
>>
Genesis Sedan V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Memory Positioning Module
>>
IMS (Integrated Memory System)
IMS (Integrated Memory System)

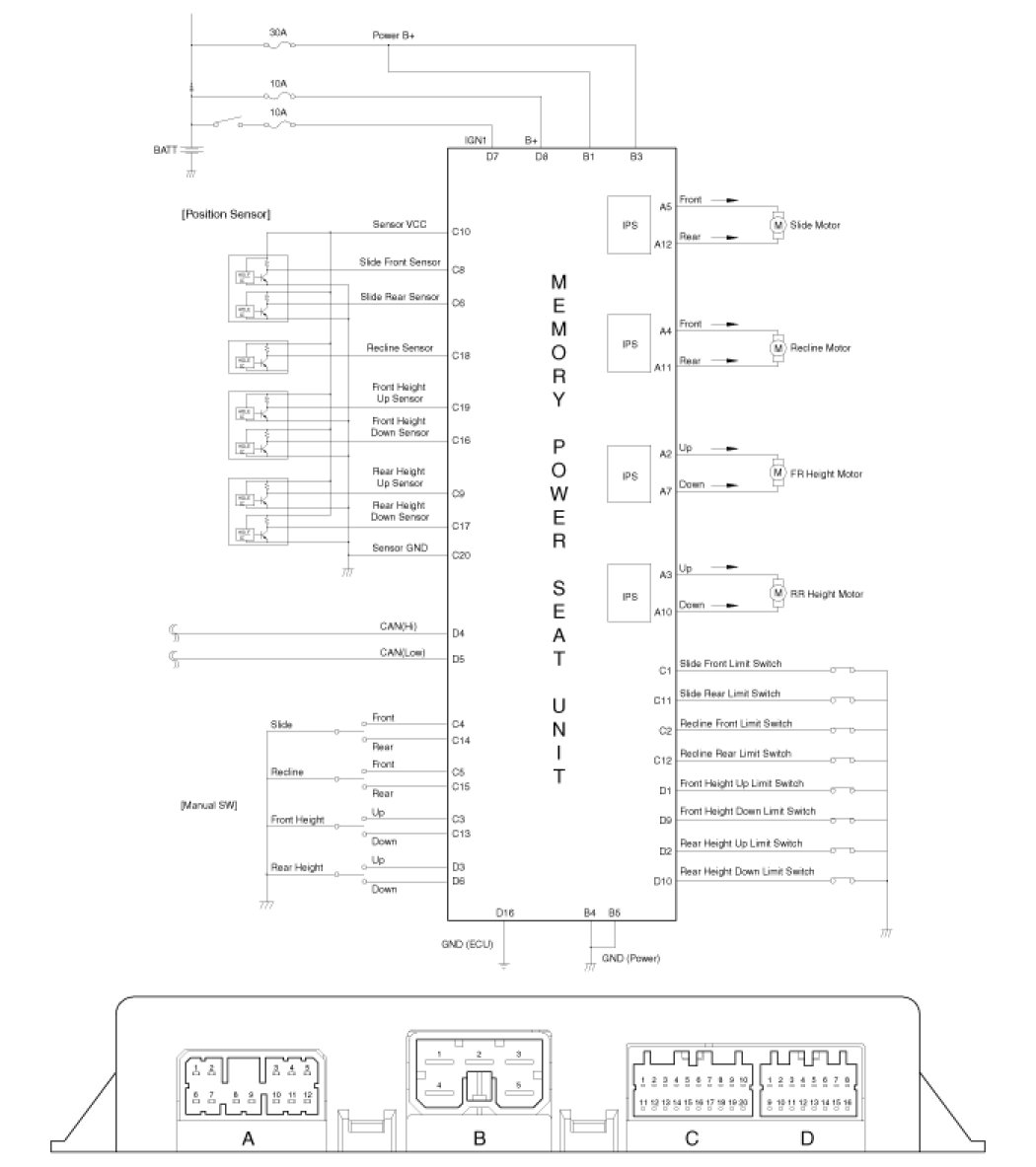

Circuit Diagram
