Components And Components Location

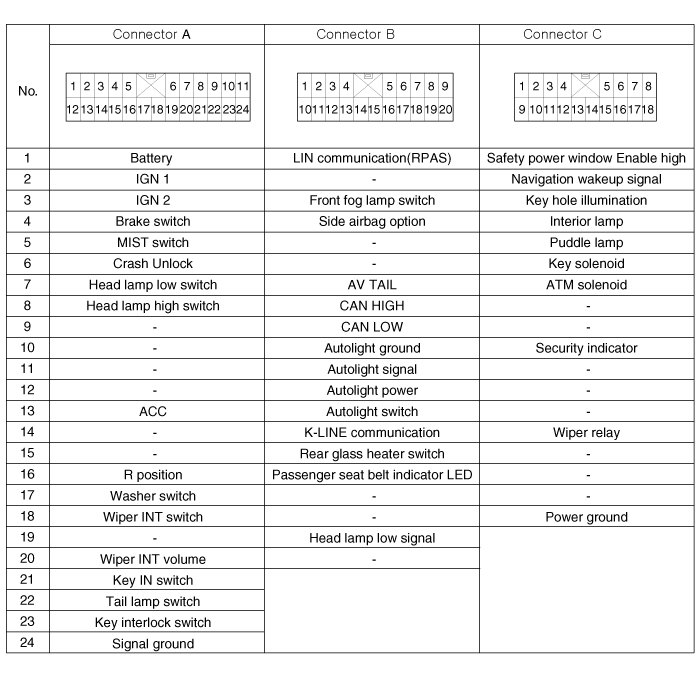

Components

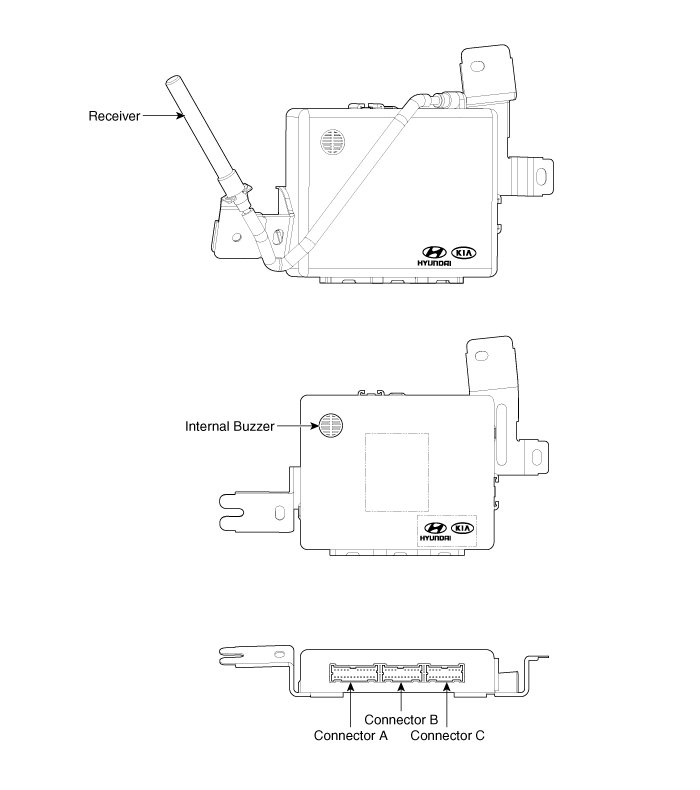

** Internal Buzzer : Rear parking assist system buzzer

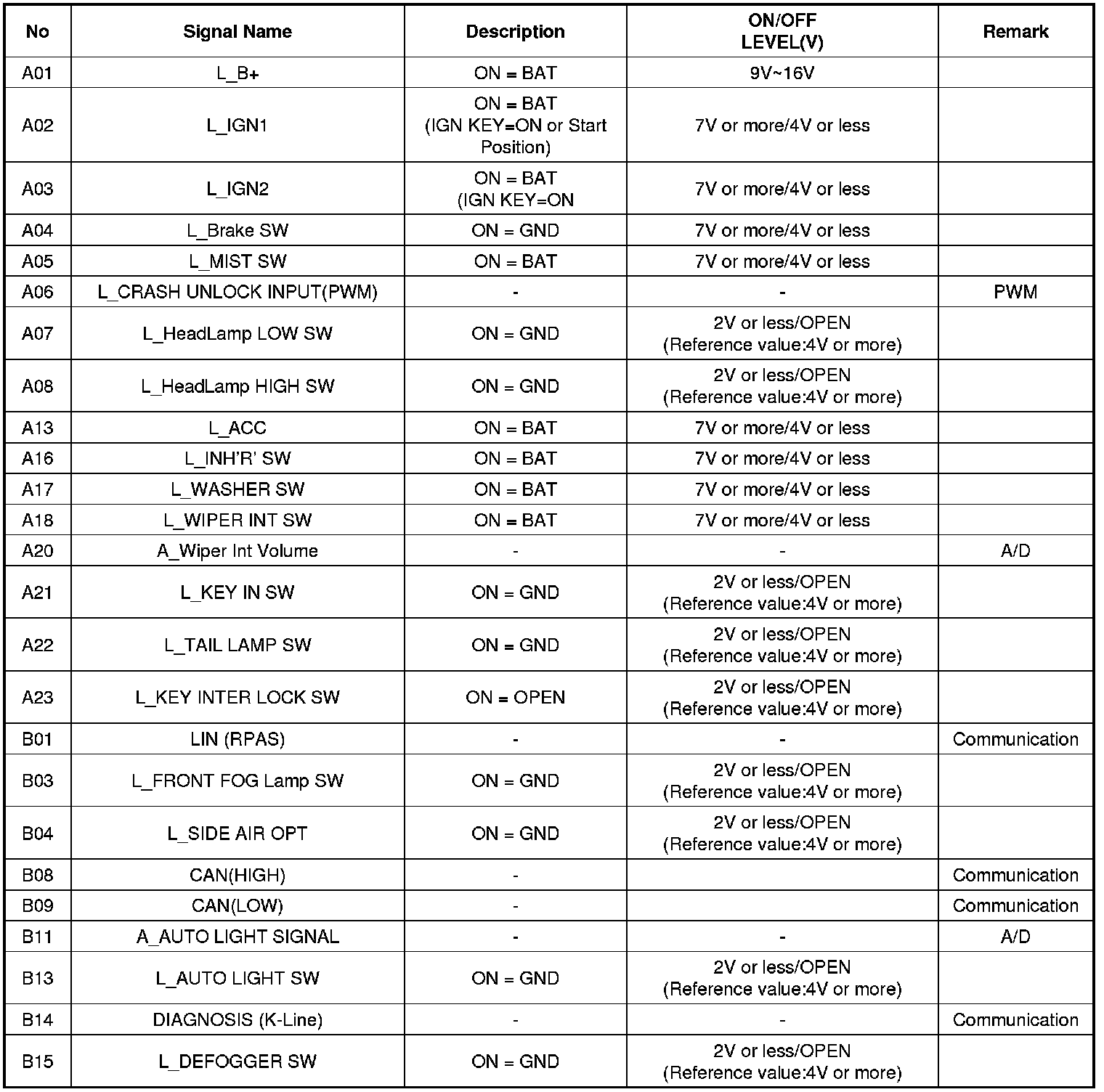

BCM Input Signal Specification
