Home
>>
Hyundai
>>
2013
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Entertainment Systems
>>
Auxiliary Input / Output Jack, Entertainment System
>>
Audio
Audio

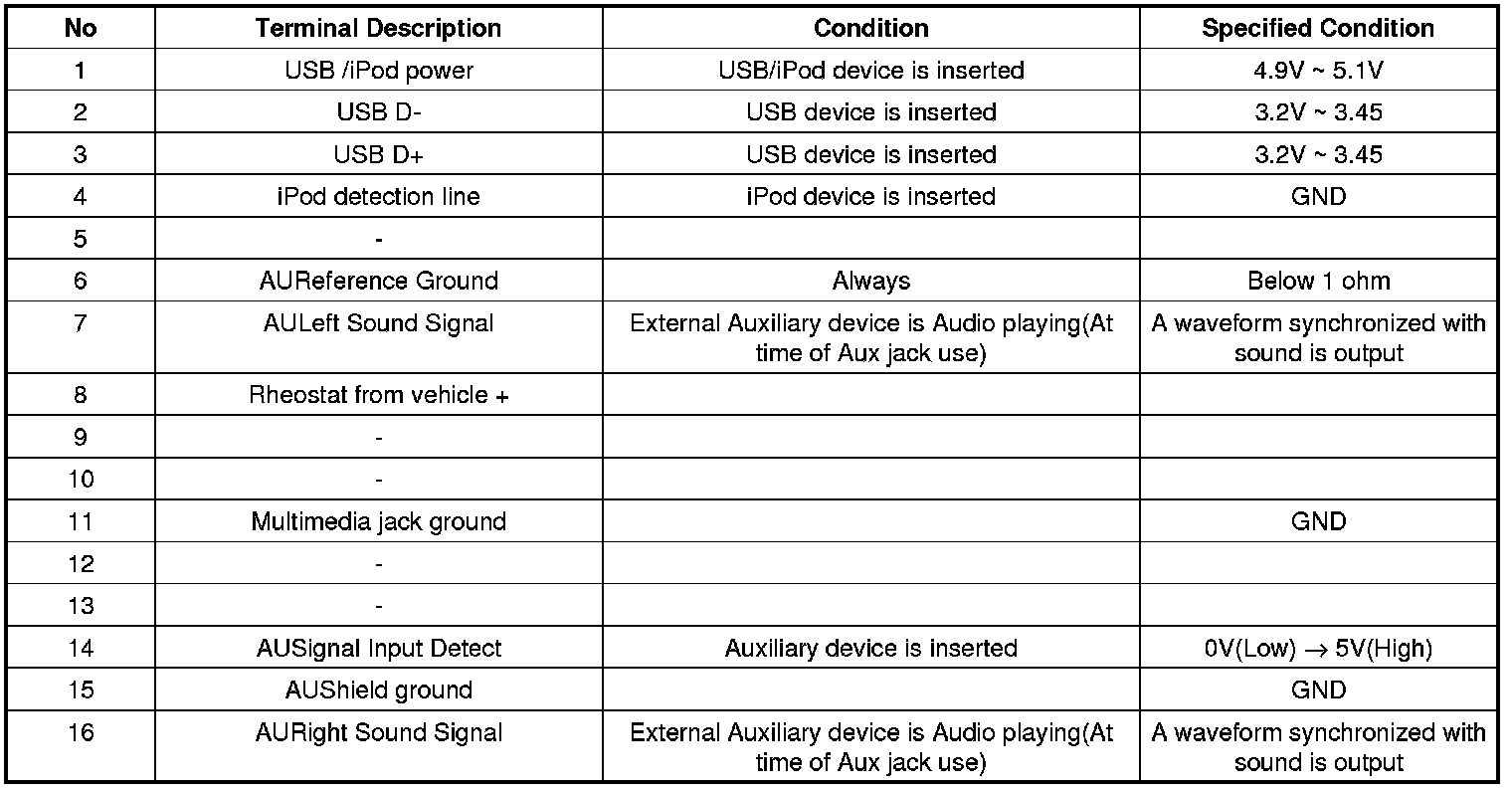

Circuit Diagram
