Repair procedures

Removal

1. Remove the transaxle assembly.

2. Remove the clutch release bearing (A).




3. Pull the clip (A).




4. Remove the clutch release fork (A).




5. Remove the boot (A).






Inspection

1. Check for damage to boot.
2. Check for deformation to clutch release fork.
3. Check for deformation to clutch release bearing.

Installation

1. Install the boot (A).




2. Install the clip to the clutch release fork.

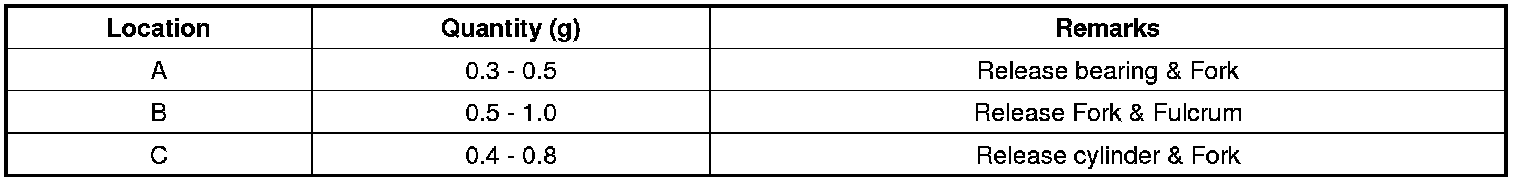

3. Apply to grease in location A, B and C.









4. Apply the grease to the hole surface of the clutch release bearing all around.

Specified grease:CASMOLY L9508
Amount:0.5 - 1.0 g




5. Install the clutch release fork (B), clutch release bearing (A).




6. Install the transaxle assembly.
