Home >> Hyundai >> 2013 >> Azera V6-3.3L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Diagrams

Seat Temperature Element: Diagrams

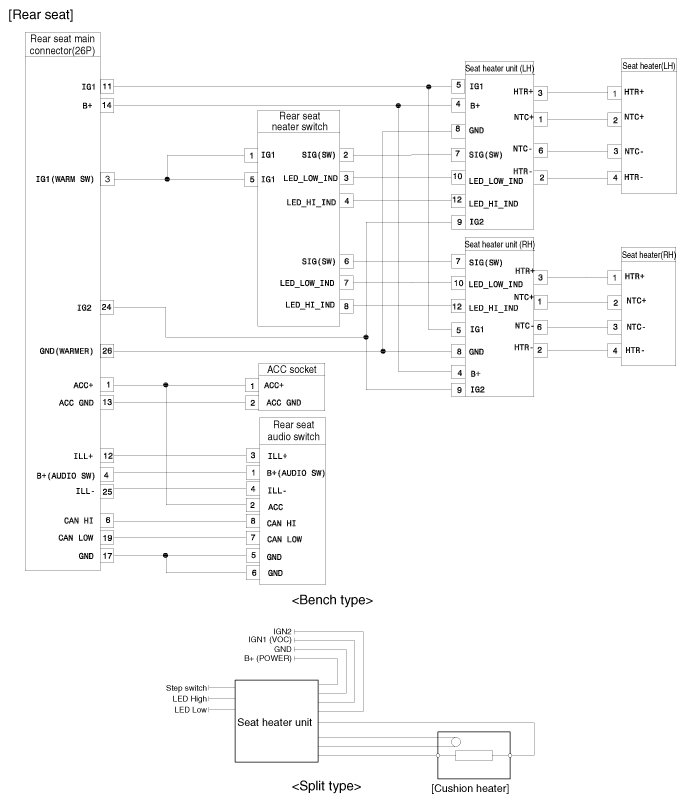

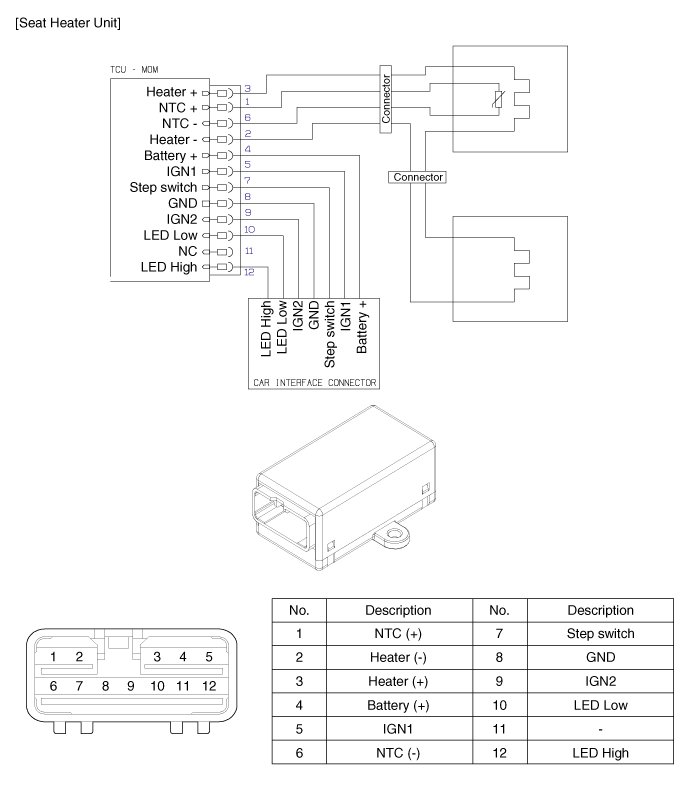

Circuit Diagram
