Home >> Hyundai >> 2013 >> Azera V6-3.3L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Switch >> Diagrams

Power Seat Switch: Diagrams

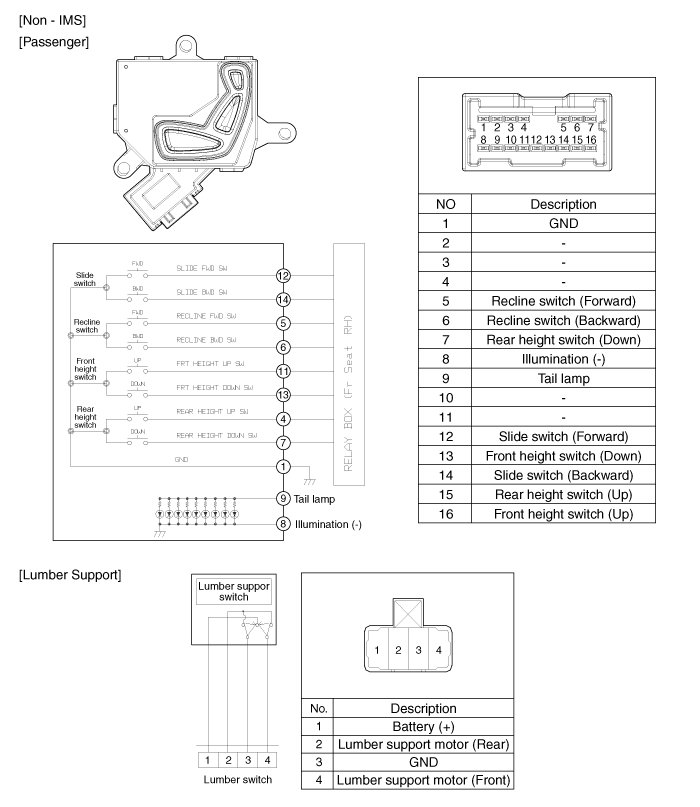

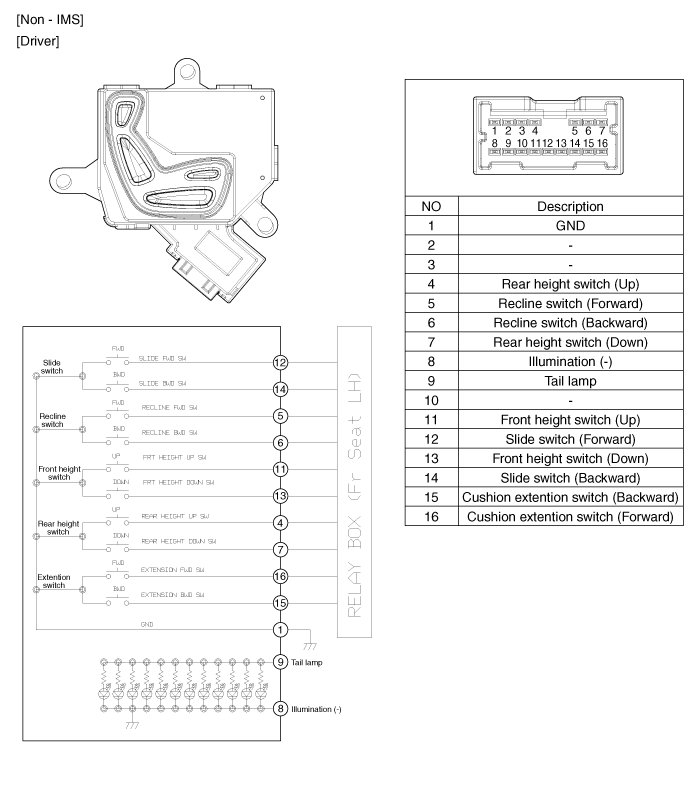

Circuit Diagram
