Intake Actuator

Inspection

1. Ignition "OFF".
2. Disconnect the intake actuator connector.

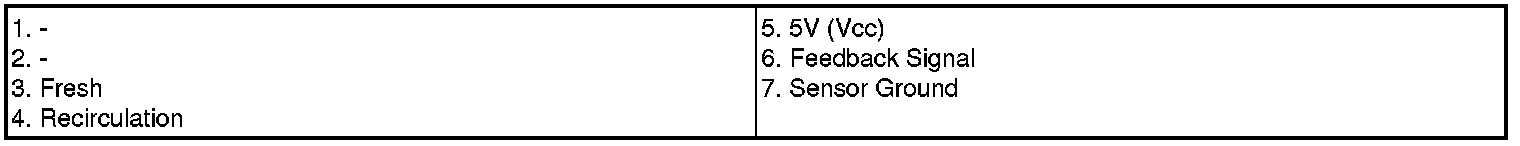

3. Verify that the actuator operates to the recirculation position when connecting 12V to the terminal 3 and grounding terminal 4.
4. Verify that the intake actuator operates to the fresh position when connecting in the reverse.
