Hyundai
>>
2012
>>
Veloster L4-1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Crankshaft Position Sensor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Circuit Diagram

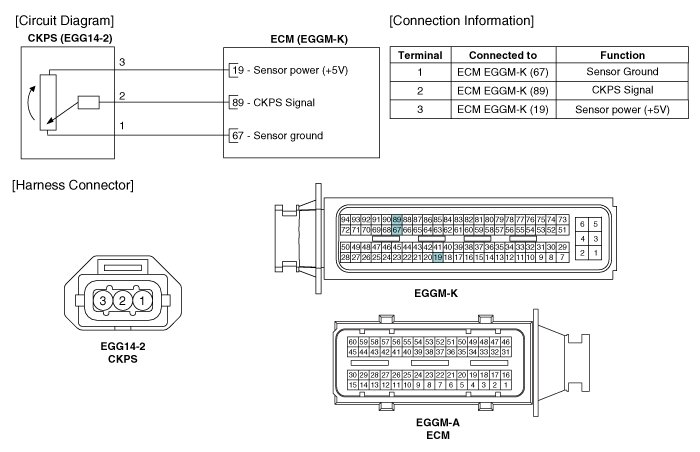

[NON - ISG]

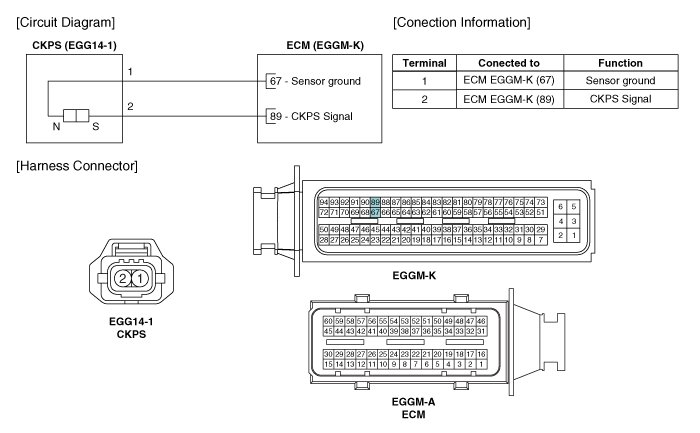

[ISG]
