Hyundai
>>
2012
>>
Equus V8-5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Fuel Injector Control Module
>>
Diagrams
>>
Connector Views
Connector Views

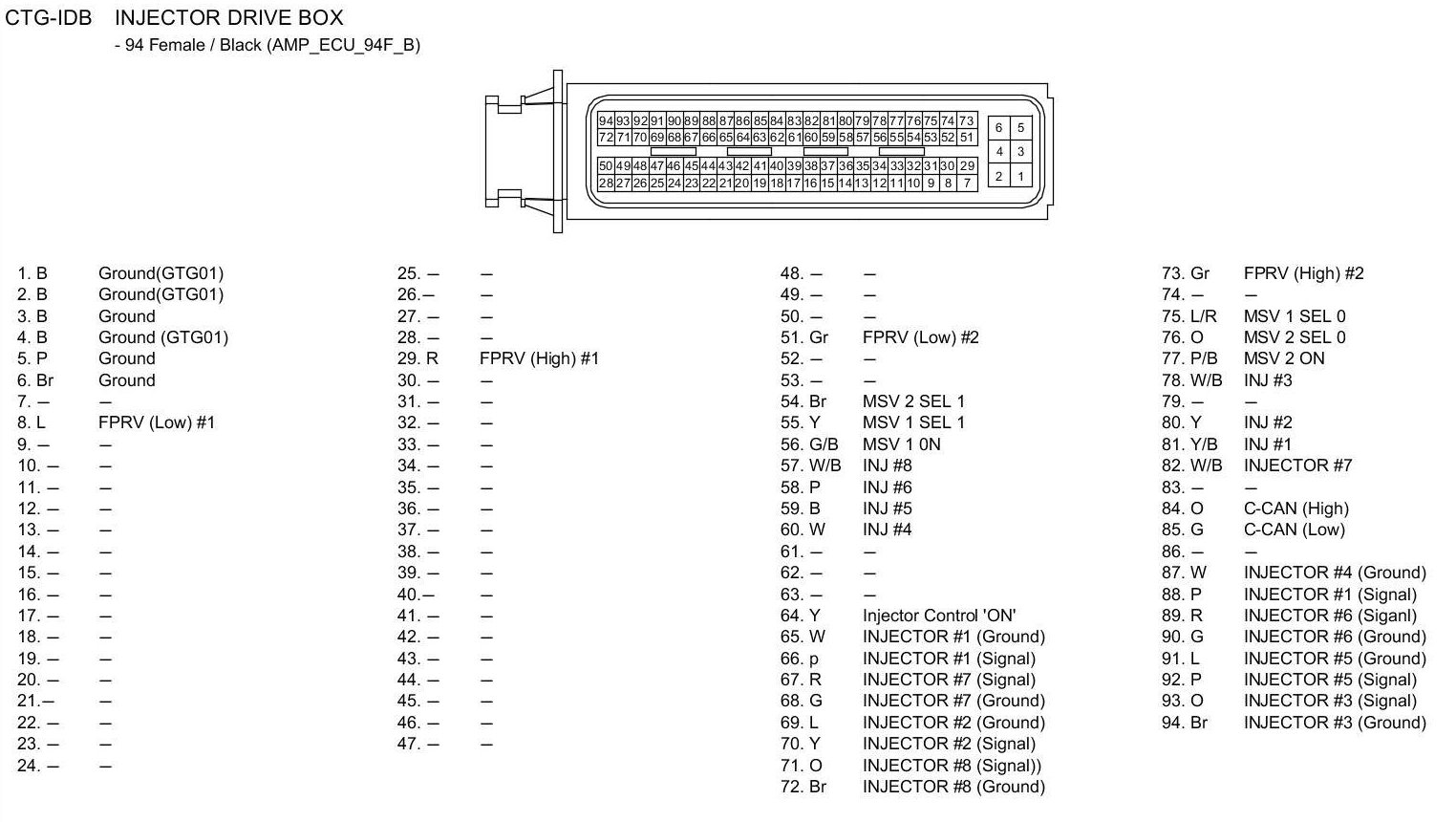

CTG-IDB Injector Driver Box:
