Seat Temperature Control Module
>>
Rear Seat Warmer Module RH (W/O CCS)
Rear Seat Warmer Module RH (W/O CCS)

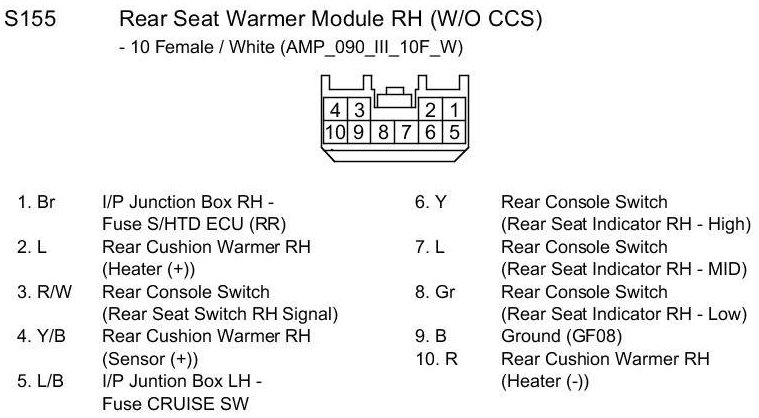

S155 Rear Seat Warmer Module RH (W/O CCS):
