Seat Temperature Control Module
>>
Rear Seat Warmer Module LH (W/O CCS)
Rear Seat Warmer Module LH (W/O CCS)

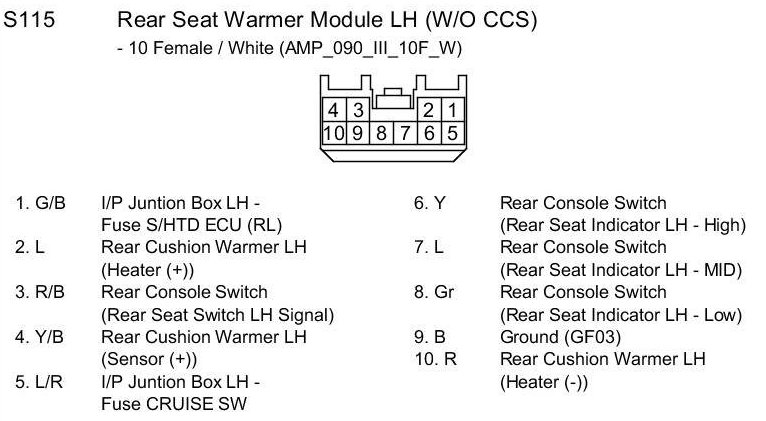

S115 Rear Seat Warmer Module LH (W/O CCS):
