Headlamp
>>
Headlamp Alignment Sensor
Headlamp Alignment Sensor

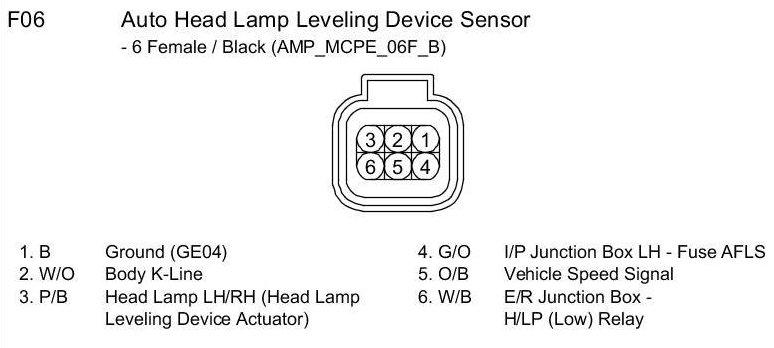

F06 Auto Head Lamp Leveling Device Sensor:
