Air Door Position Sensor / Switch, HVAC
Air Door Position Sensor / Switch, HVAC

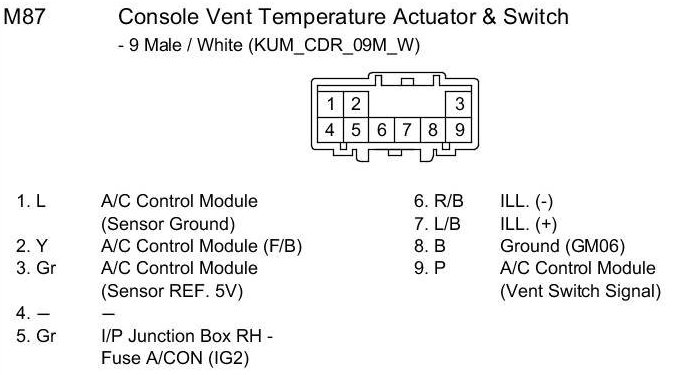

M87 Console Vent Temperature Actuator & Switch:
