Home
>>
Hyundai
>>
2012
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
Connector Views
Connector Views

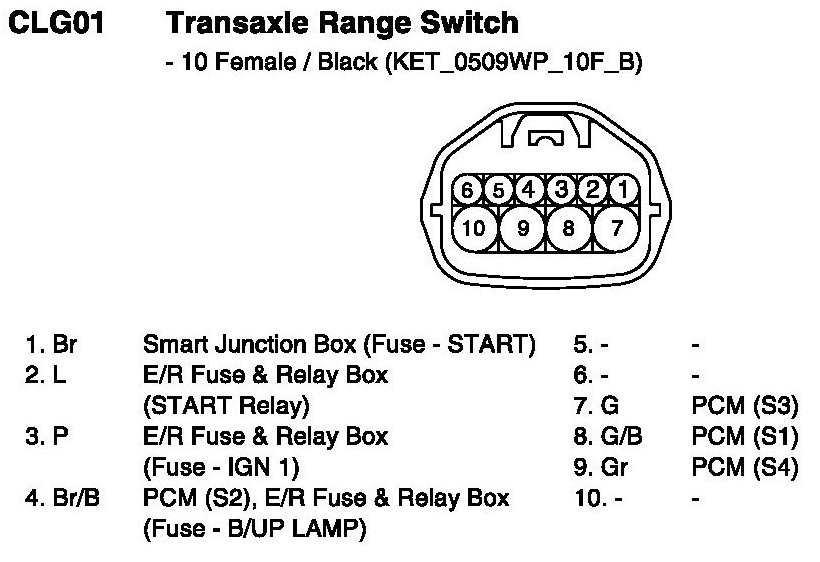

CLG01 Transaxle Range Switch:
