Azera V6-3.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
GLG01
GLG01

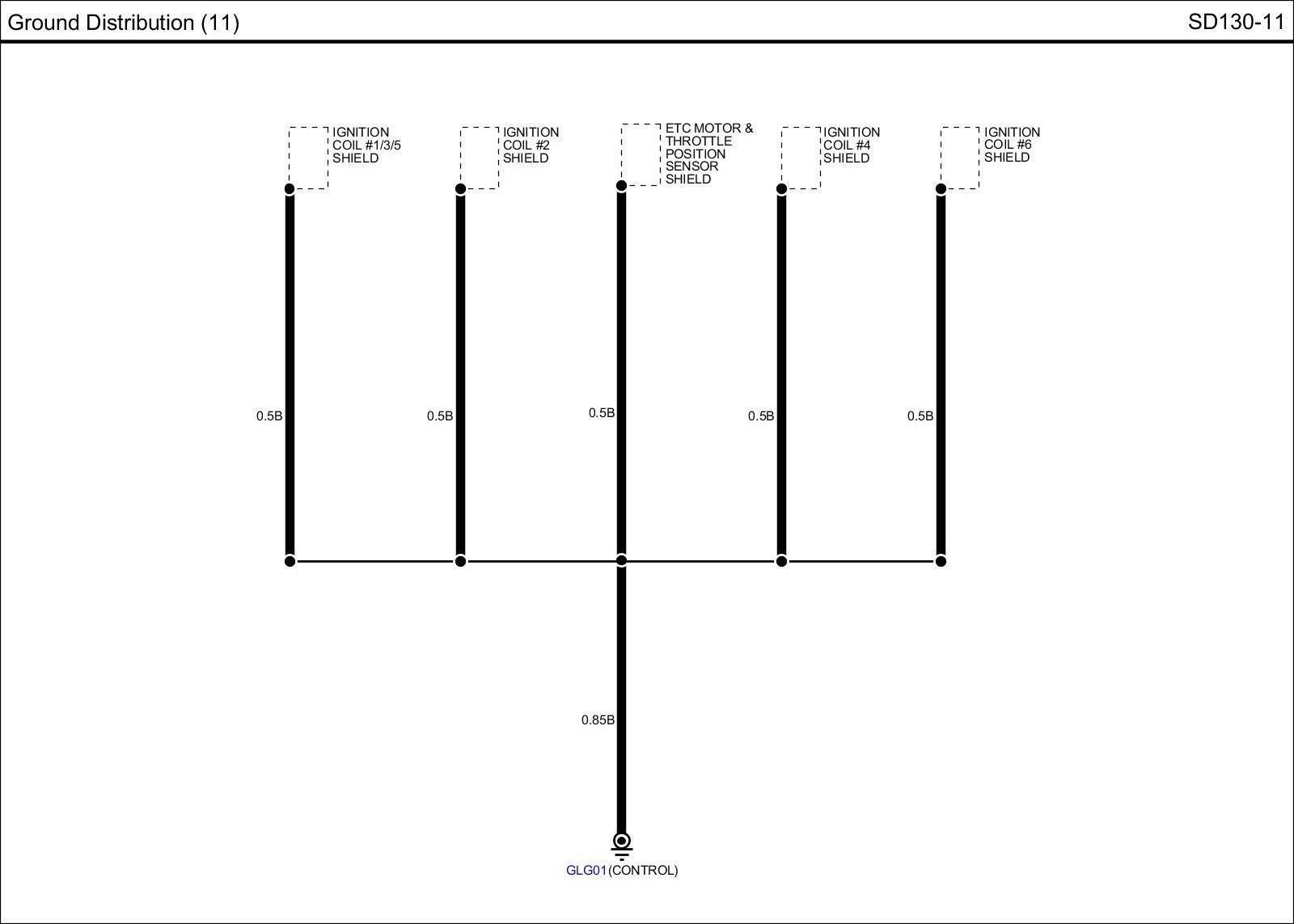

SD130-11 Ground Distribution (11):
