Hyundai
>>
2012
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
GF03
GF03

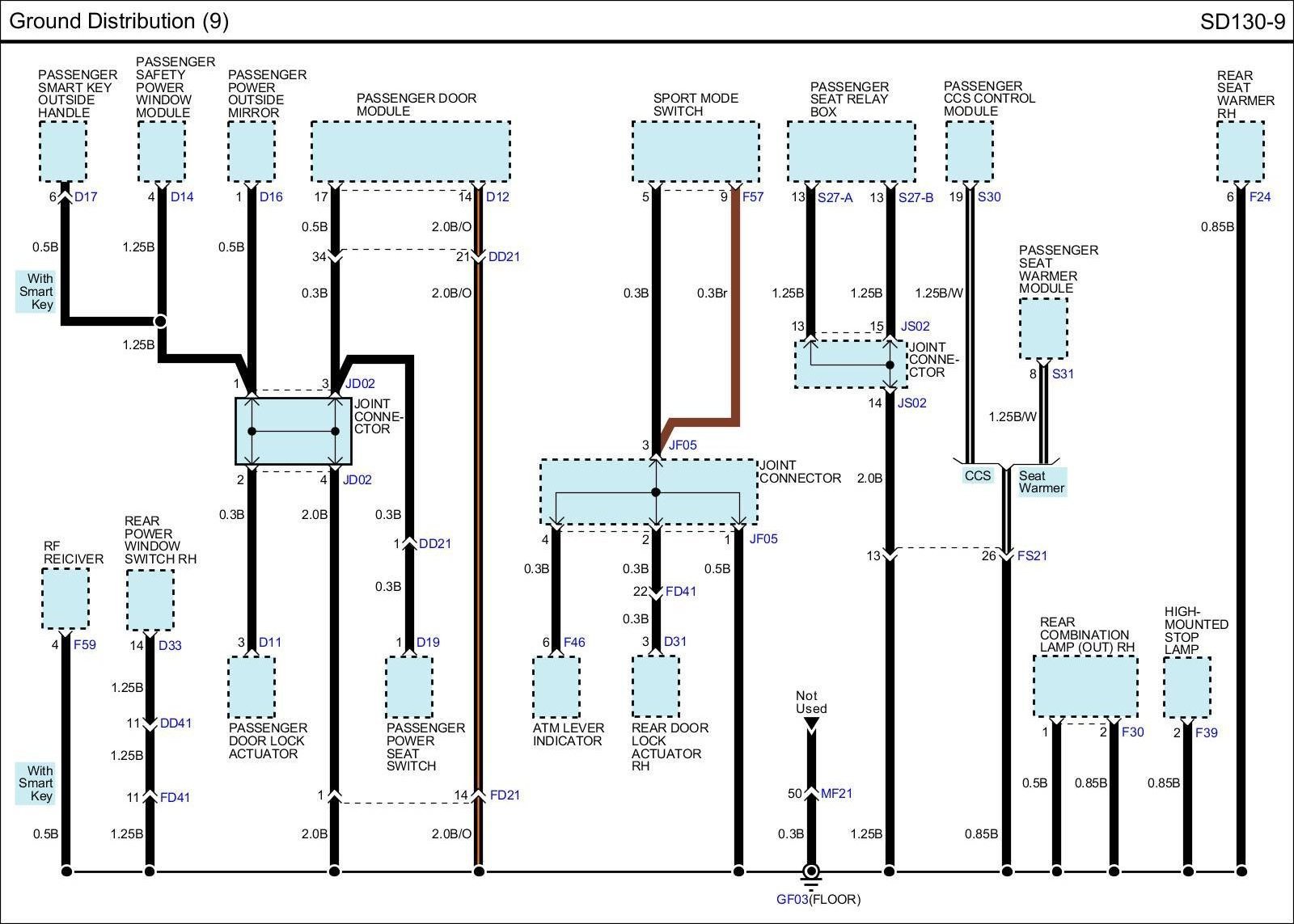

SD130-9 Ground Distribution (9):
