Home
>>
Hyundai
>>
2012
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
System Diagram
>>
Driver Foot Lamp
Driver Foot Lamp

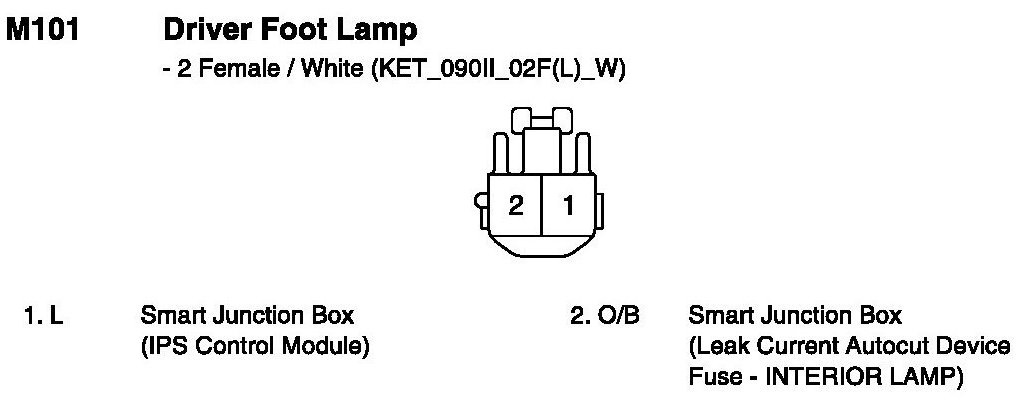

M101 Driver Foot Lamp:
